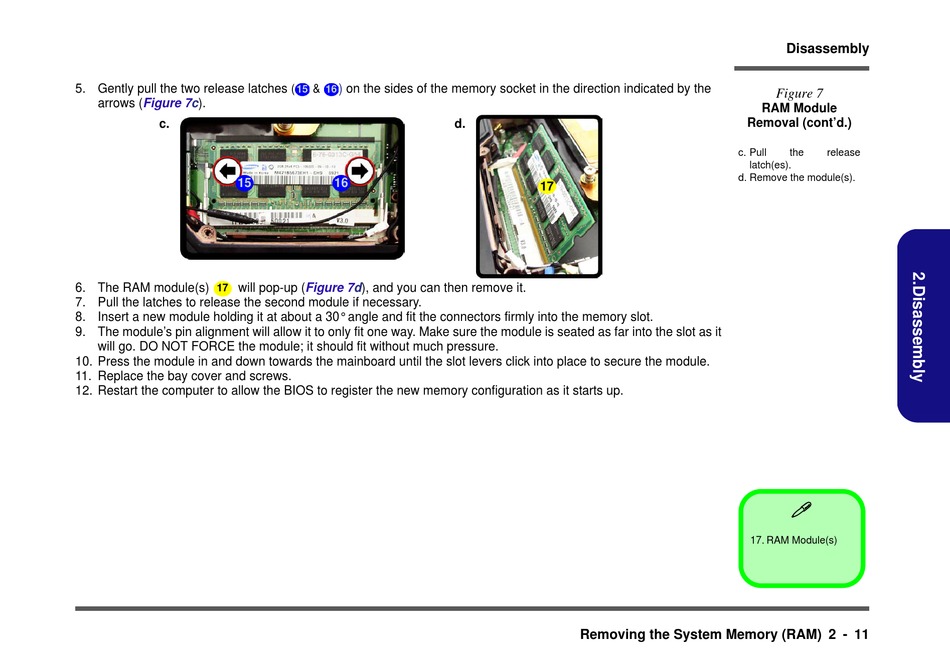

5. Gently pull the two release latches
arrows (Figure 7c).
c.
15
6. The RAM module(s) will pop-up
17
7. Pull the latches to release the second module if necessary.
8. Insert a new module holding it at about a 30° angle and fit the connectors firmly into the memory slot.
9. The module's pin alignment will allow it to only fit one way. Make sure the module is seated as far into the slot as it
will go. DO NOT FORCE the module; it should fit without much pressure.
10. Press the module in and down towards the mainboard until the slot levers click into place to secure the module.
11. Replace the bay cover and screws.
12. Restart the computer to allow the BIOS to register the new memory configuration as it starts up.
( & ) on the sides of the memory socket in the direction indicated by the
15 16
d.
16
(Figure 7d), and you can then remove it.
17
Removing the System Memory (RAM) 2 - 11
Disassembly
Figure 7
RAM Module
Removal (cont'd.)
c. Pull the release
latch(es).
d. Remove the module(s).

17. RAM Module(s)
