EUROCOM W860CU Service Manual page 30

5. Lift the hard disk assembly out of the computer in the direction of arrow
6. Remove the screws - and the cover bracket
5 8
7. Reverse the process to install a new hard disk (do not forget to replace all the screws and covers).
c.
The hard disks and covers pictured here may appear slightly different from your model
design (these designs are subject to change and upgrade without notice). Pay careful at-
tention to the screws and cover bracket orientation.
from the harddisk
6 9
d.
5
4

Hard Disk Screws & Cover
.
4
.
10
6
7
9
8
10
Removing the Hard Disk Drive 2 - 7
Disassembly

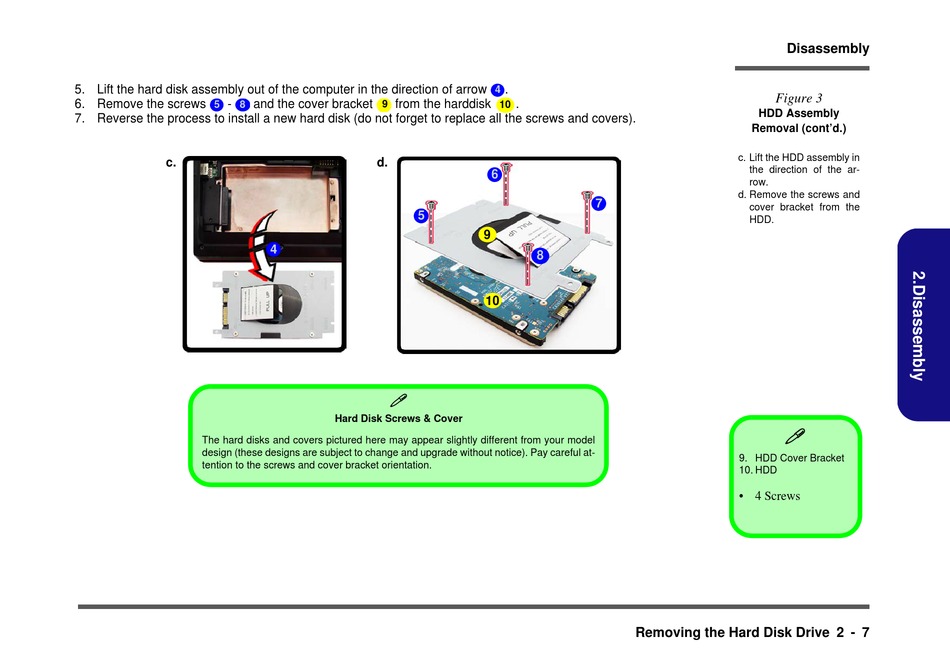

Figure 3
HDD Assembly
Removal (cont'd.)
c. Lift the HDD assembly in
the direction of the ar-
row.
d. Remove the screws and
cover bracket from the
HDD.

9. HDD Cover Bracket
10. HDD
• 4 Screws
