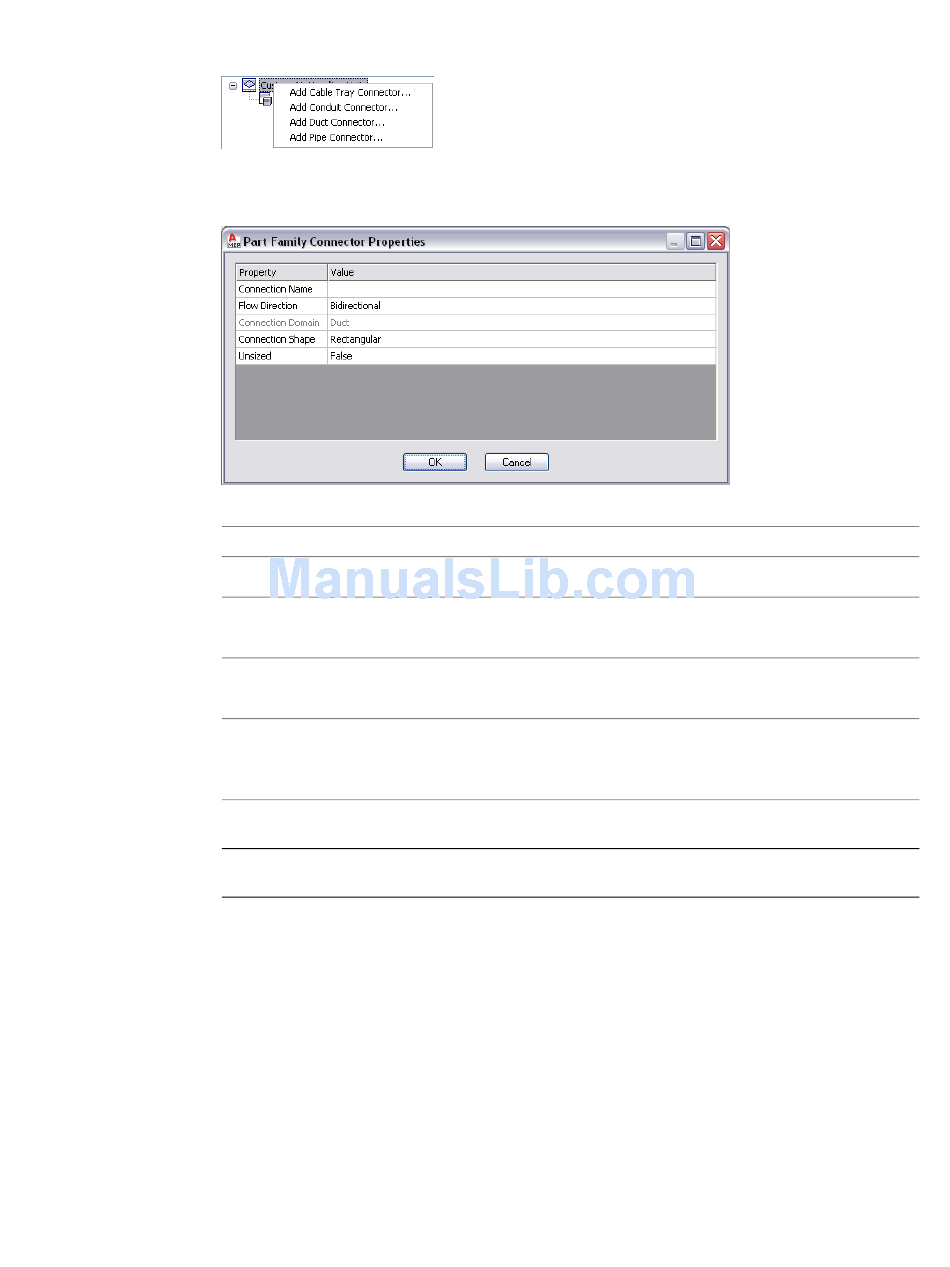

Shows example of context menu
for part family
The Part Family Connector Properties dialog is displayed.
Part Family Connector Properties dialog
2 Specify a value for each of the properties and click OK:
To specify the...
Name
Connection Shape
additional properties, such as Flow Direction
Unsized
These properties are assigned to the connector for all part sizes.
NOTE The connector domain is based on the type of connector selected and cannot be changed in
the properties dialog. Also, the Unsized value cannot be changed once the connector is defined.
3 To edit connector properties, right-click a connector, and click Edit Connector.
A property palette is displayed.
then click the value cell and...
enter a descriptive name.
select a shape from the list. The available shapes are dependent
on the domain of the connector.
select from the list. Additional properties that are available are
dependent on the domain of the connector.
select True or False. Selecting True allows the connector to be
unsized and valid connections to be made with unsized seg-
ments.
