Sanitary Stack Sizing

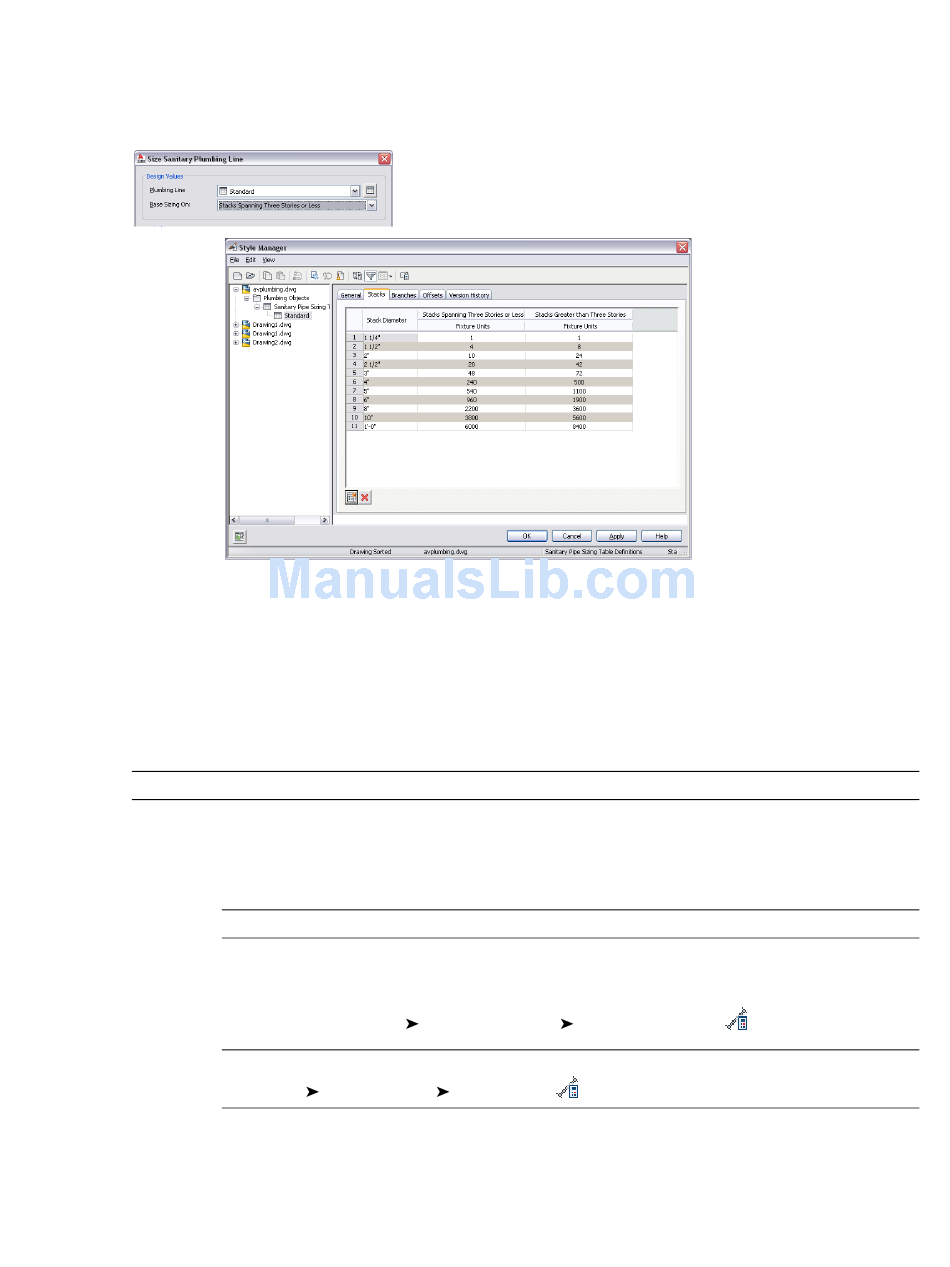

When you define your sanitary run as a stack spanning 3 stories or less, or more than 3 stories, the plumbing
module performs the sizing calculations using the information on the Stacks tab in the sanitary plumbing
line sizing table (pipe sizing table), whose definitions can be found in Style Manager.

Sizing Sanitary Plumbing Lines

Sanitary plumbing line sizing is typically required for sanitary black water system types. When you create
sanitary system types for gray water, you need to define the system type as Waste in order for the sizing to
work.
If you are working on a sanitary system in a building that contains multiple floors, see
Plumbing Lines for Multiple Floors
WARNING If you make any modifications to the sanitary plumbing system, you need to resize the plumbing lines.
To size sanitary plumbing lines
1 Complete a draft of the sanitary system.
2 Select a run whose system type is Waste.
3 Click Plumbing Line tab
on page 512.
NOTE You cannot size systems whose system type is Storm Drain.
The software highlights all plumbing lines, fittings, and fixtures connected to, and downstream
from the plumbing line.
NOTE To calculate sizing values without resizing the run, access the sizing calculator by clicking
Analyze tab Plumbing Panel
The software displays the Size Sanitary Plumbing Line dialog.
Calculation panel Size Plumbing Line
Size Plumbing , and then press ENTER at the command prompt.
Sizing Sanitary
.
Sizing Sanitary Plumbing Lines | 511
