Creating Panel Schedule Table Styles

Create your own custom panel schedule table style to match the layout of your company's standard panel
schedule. First, create the custom table, and then create the panel schedule table style from the table. When
creating the custom table, insert placeholder field codes where the panel and circuit data would display.
When the custom panel schedule table style is used to generate a panel schedule, the field codes are replaced
with the panel and circuit values from the Circuit Manager. For more information about creating schedule
table styles see "Create and Modify Tables" in the AutoCAD Help.
The following field codes are available specifically for use in panel schedule tables:
Panel Field Names
Panel Name
Panel Rating
460 | Chapter 9 Drawing Electrical Systems

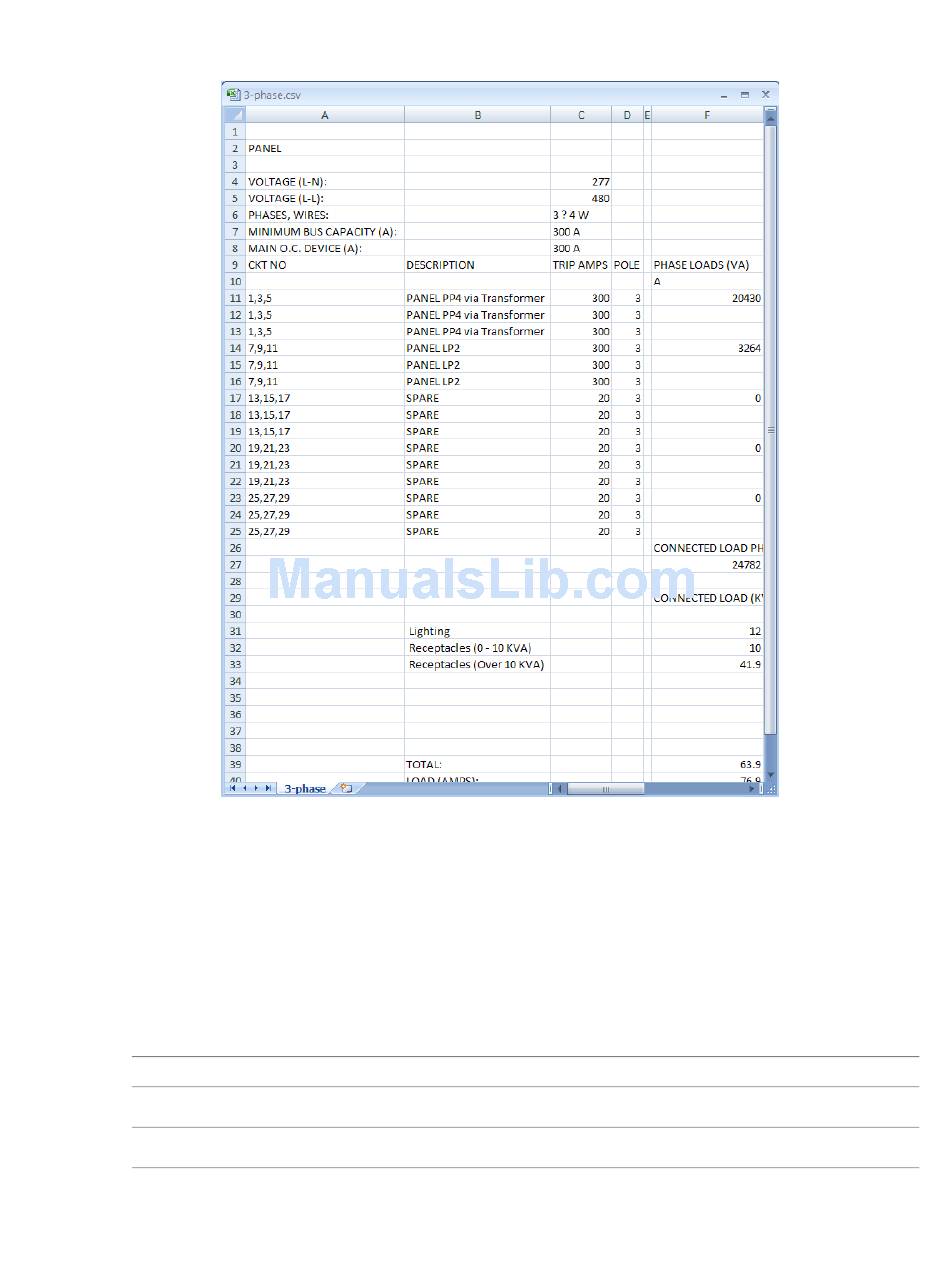

The exported panel schedule data is saved as a text file with a .csv file extension. Open the file
in Excel and work with the data as needed.
Panel Field Names
Panel Notes
Panel Load Category Name
Circuit Field Names
Circuit Name
Circuit Description
