To model the body of the tank
1 To create the body of the tank, in the part browser, right-click XY Plane and click Add
2 In the modeling area, specify a center point, enter 15" (381 mm) for the radius, and press ENTER.
3 In the part browser, right-click Modifiers and click Add Extrusion.
4 In the modeling area, select the circular profile.
5 Under Termination, select Blind for Type, enter 60" (1524 mm) for Distance, and select Flip.
718 | Chapter 14 Customizing Catalog-Based Content
Profile Circular.
For more information about profiles, see
TIP You can also enter an exact position such as 15,15 to specify the center point at the center of
the workplane.

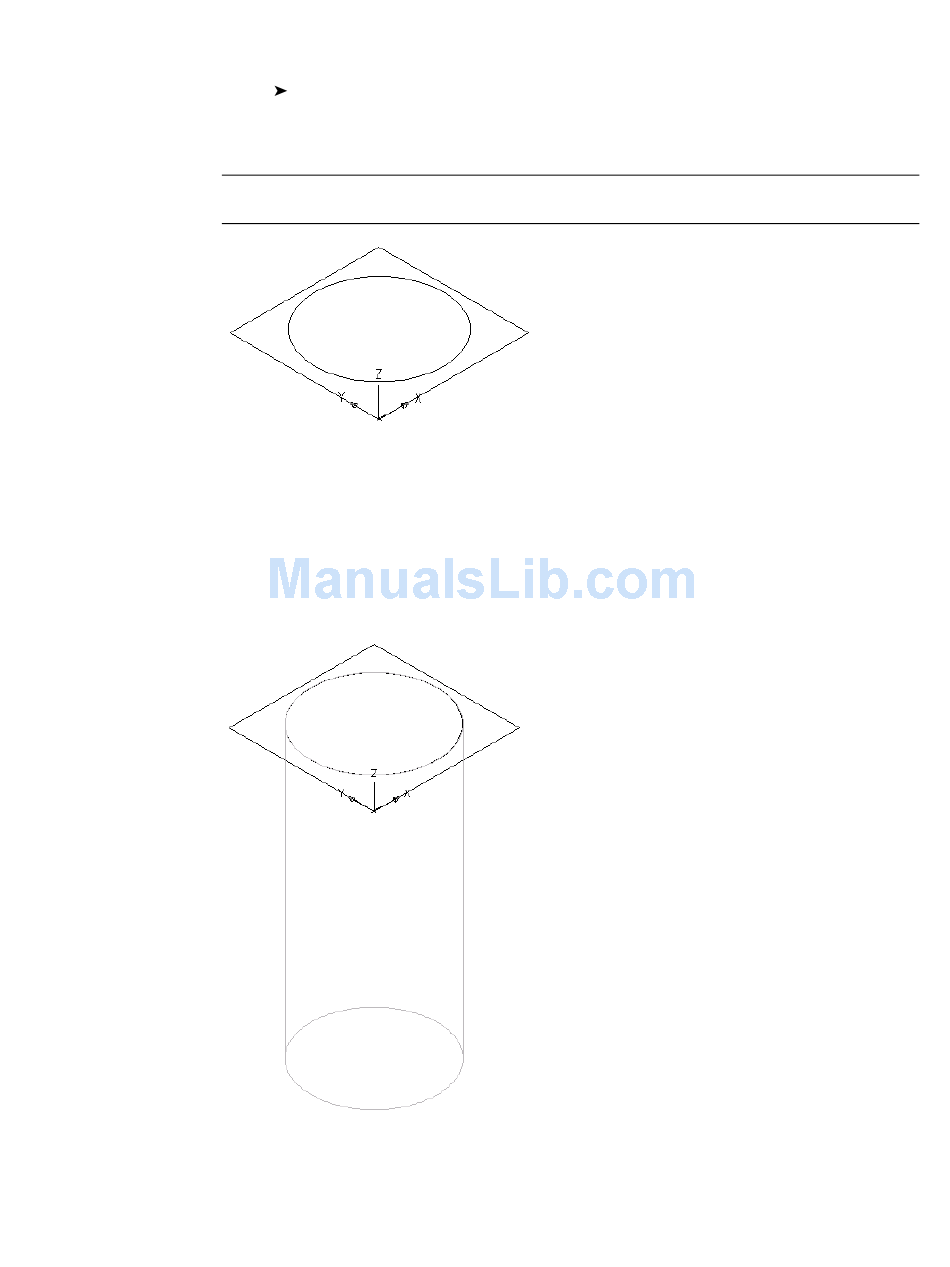

A circular profile is created and is added to XY Plane in the part browser.
For more information about modifiers, see
The Extrusion Modifier dialog is displayed.
Click OK.
A cylinder is created to represent the body of the tank and an extrusion modifier is added to
Modifiers in the part browser.
Profiles on page 659.
Modifiers on page 660.
