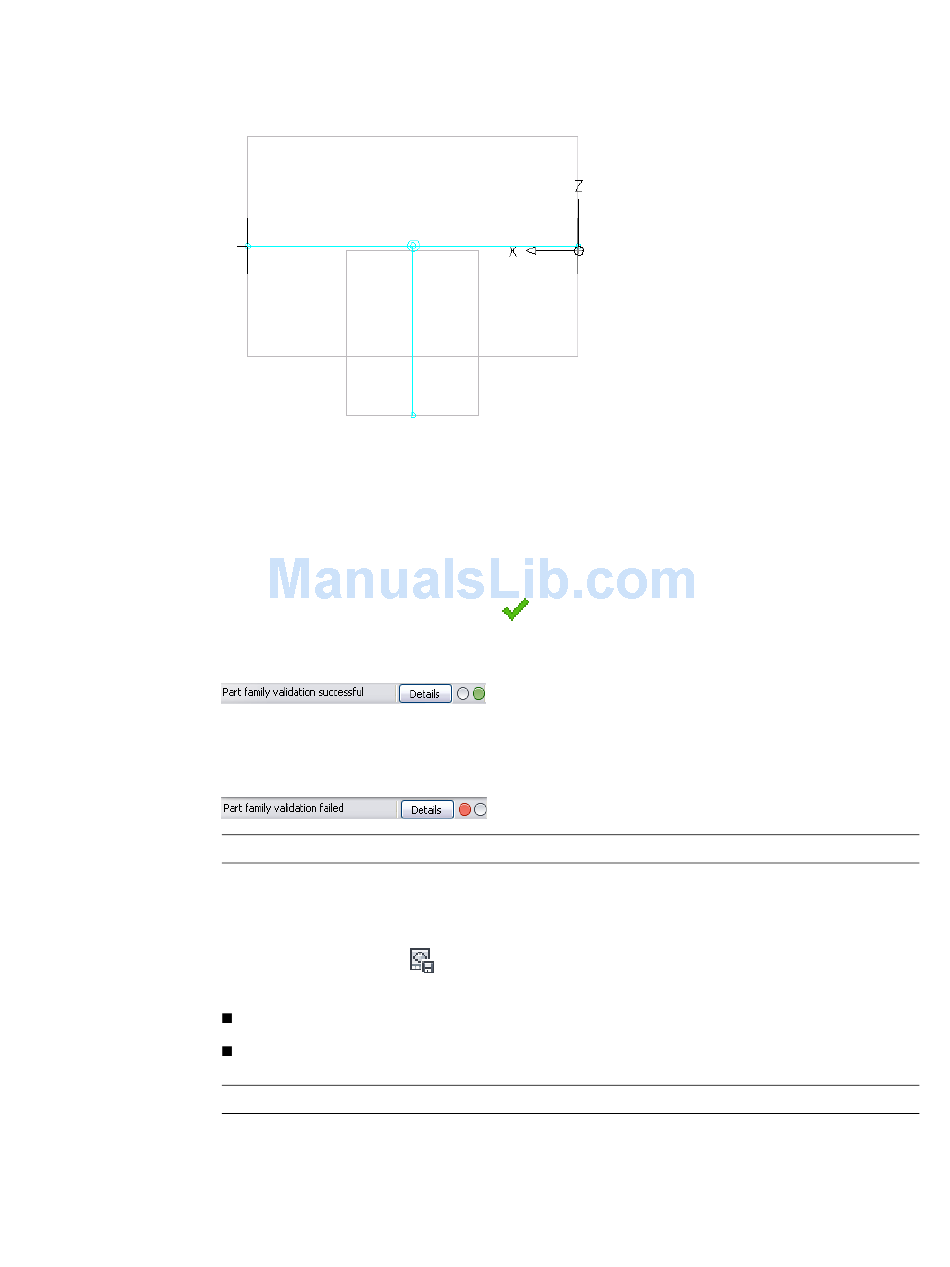

A placement point is displayed at the selected location.
Validating, Saving, and Previewing a Parametric Fitting
1 On the Content Builder toolbar, click
Upon successful completion of these procedures, the part is validated and the status bar at the
bottom of the part browser is updated with the traffic light displayed green.
If you have errors in your model, the traffic light is red, and a dialog is displayed listing the
errors. Review the errors, make necessary modifications, and repeat this step until validation is
successful.
NOTE Warnings in the Part Family Validation Results dialog do not make the part invalid.
Once validation is successful, you can save the parametric fitting.
To save a parametric fitting
2 In the part browser, click
3 Specify whether to make the part available in the catalog:
Click Yes to make the part available to users.
Click No to keep the part hidden.
NOTE This prompt toggles the Hide Part option in the Options dialog in Content Builder.
The part is saved in the specified catalog location.
(Validate).
.
Building Parametric Fittings Using Content Builder | 693
