9 To see the entire model of the part, in the part browser, right-click Transition Modifier and click
Visible.
Modeling a Parametric Junction Box MvPart
Use this procedure to model a parametric junction box MvPart. You add the rectangular geometry, create
the profiles, apply the modifiers to create the box itself, and add geometry for the knockouts.
1 In the part browser, right-click XY Plane and click Add Profile
For more information about profiles, see
2 In the modeling area, specify the first corner and then the second corner.

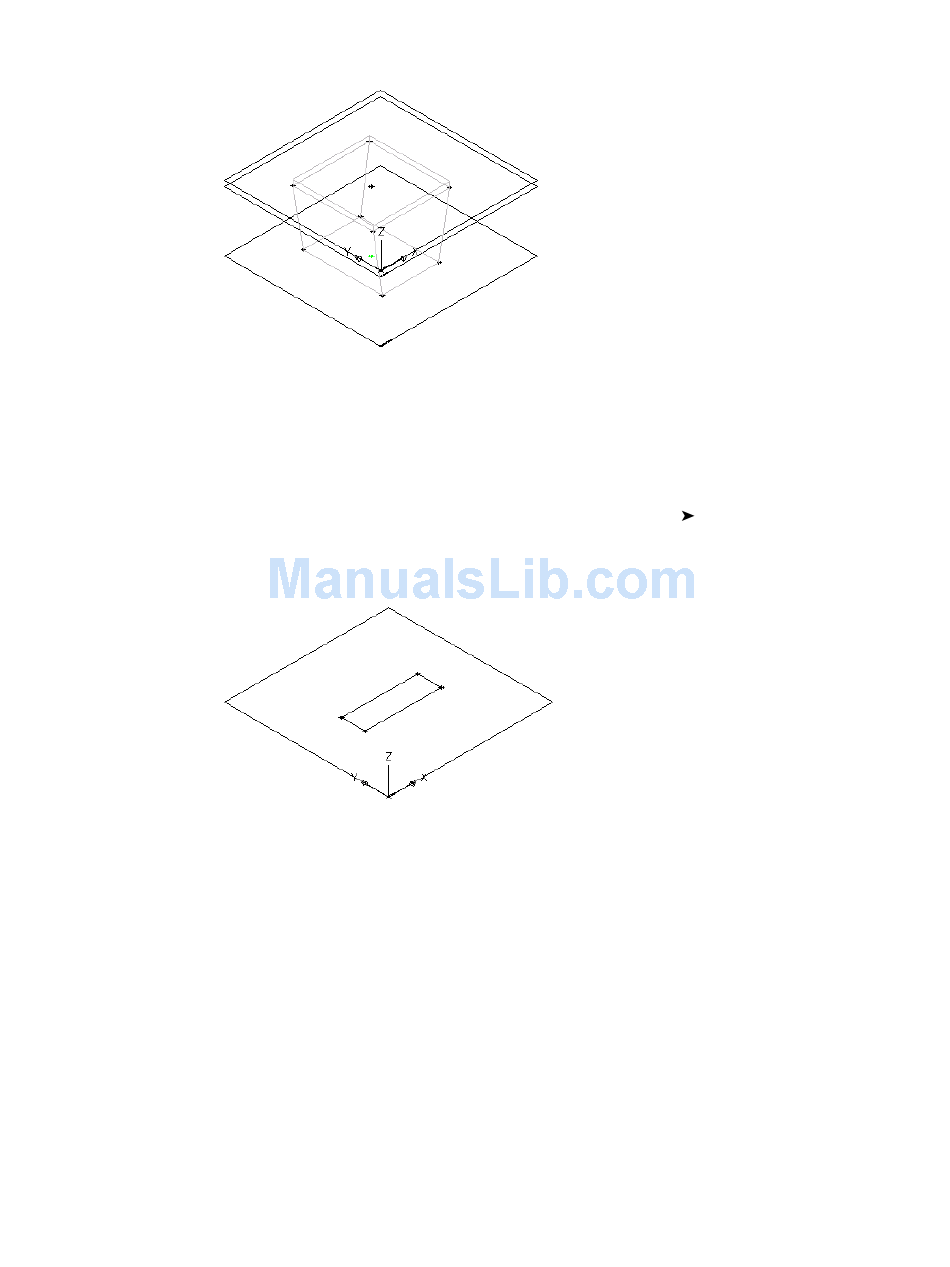

A rectangular profile for the top face is created and is added to XY Plane in the part browser.
Constraints for the rectangular profile are added to XY Plane.
3 In the part browser, right-click Modifiers and click Add Extrusion.
For more information about modifiers, see
4 In the modeling area, select the rectangular profile.
The Extrusion Modifier dialog is displayed.
Profiles on page 659.
Modifiers on page 660.
Building Parametric MvParts with Content Builder | 715
Rectangular.
