Linking Panels

After linking panels, use the Circuit Manager to transfer the panel demand and connected load totals for
each load category from one panel to another.
To link panels in the same drawing:
1 Select a panel and click Panel tab
2 In the first Panel to Panel connection dialog, select the panel that will be fed by another panel.
3 In the second Panel to Panel Connection dialog, select the method to use when connecting the
panels, and click OK.

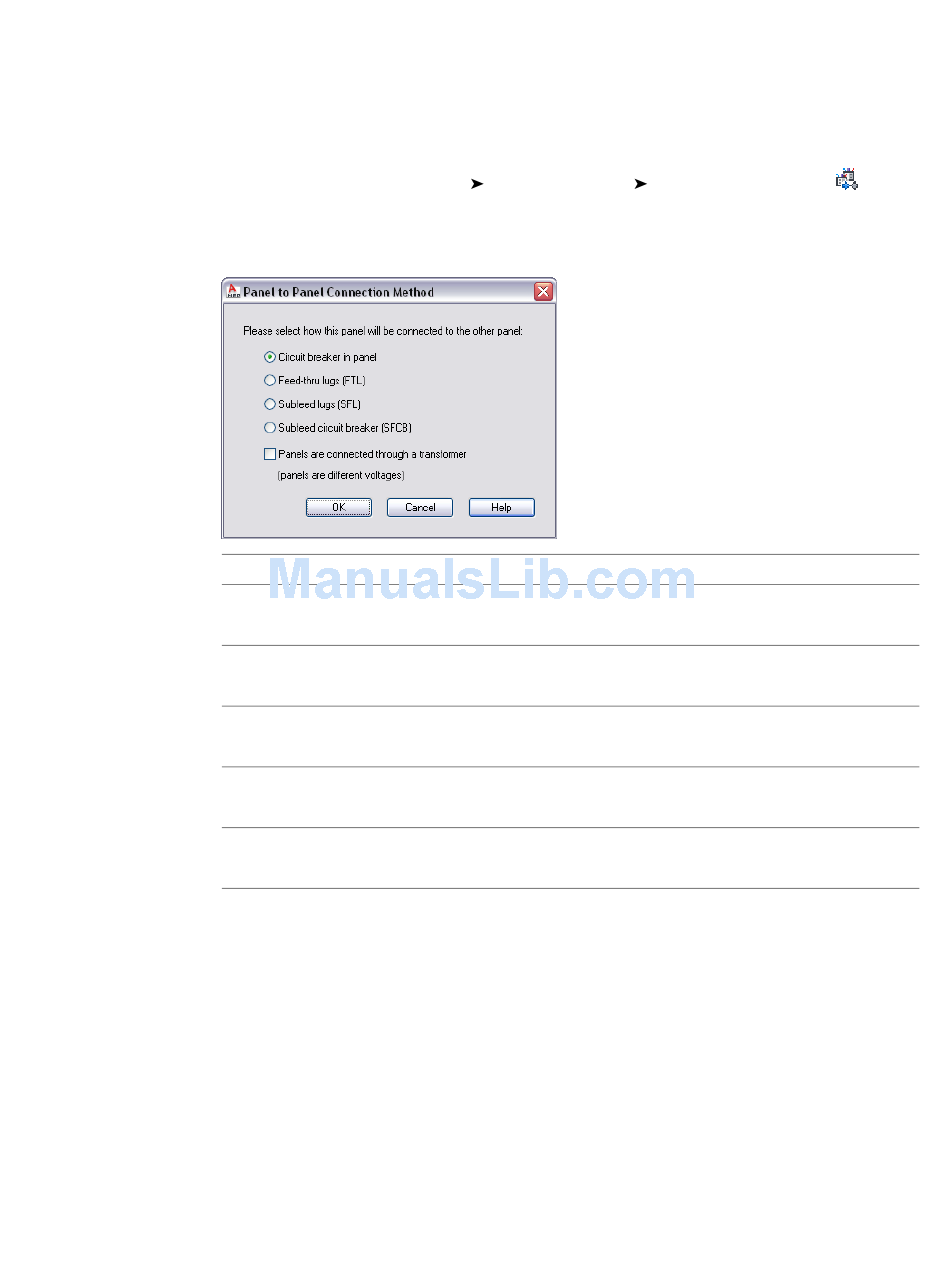

If you select...
Circuit breaker in panel
Feed-thru lugs
Sub-feed lugs
Subfeed breaker
Panels are connected through a transformer (panels
are different voltages)
Connections panel Connect To Other Panel
then...
the panel is added as a sub-fed panel to an existing
circuit in the linked panel.
the panel is added as a sub-fed panel to a feed-thru
lug circuit in the linked panel.
the panel is added as a subfed panel to a subfeed lug
circuit in the linked panel.
the panel is added as a subfed panel to a subfeed
breaker circuit in the linked panel.
the panel is connected through a transformer when
panels are of different voltages.
.
