Drawing HVAC Systems
This section offers instructions on how to use AutoCAD MEP to design and draft heating, ventilation, and air conditioning
(HVAC) systems for a building plan.

HVAC System Workflow

Mechanical system design best practice starts with the establishment of project parameters. HVAC designers
can then design duct and necessary piping systems to create, size, and connect heating and cooling
components.

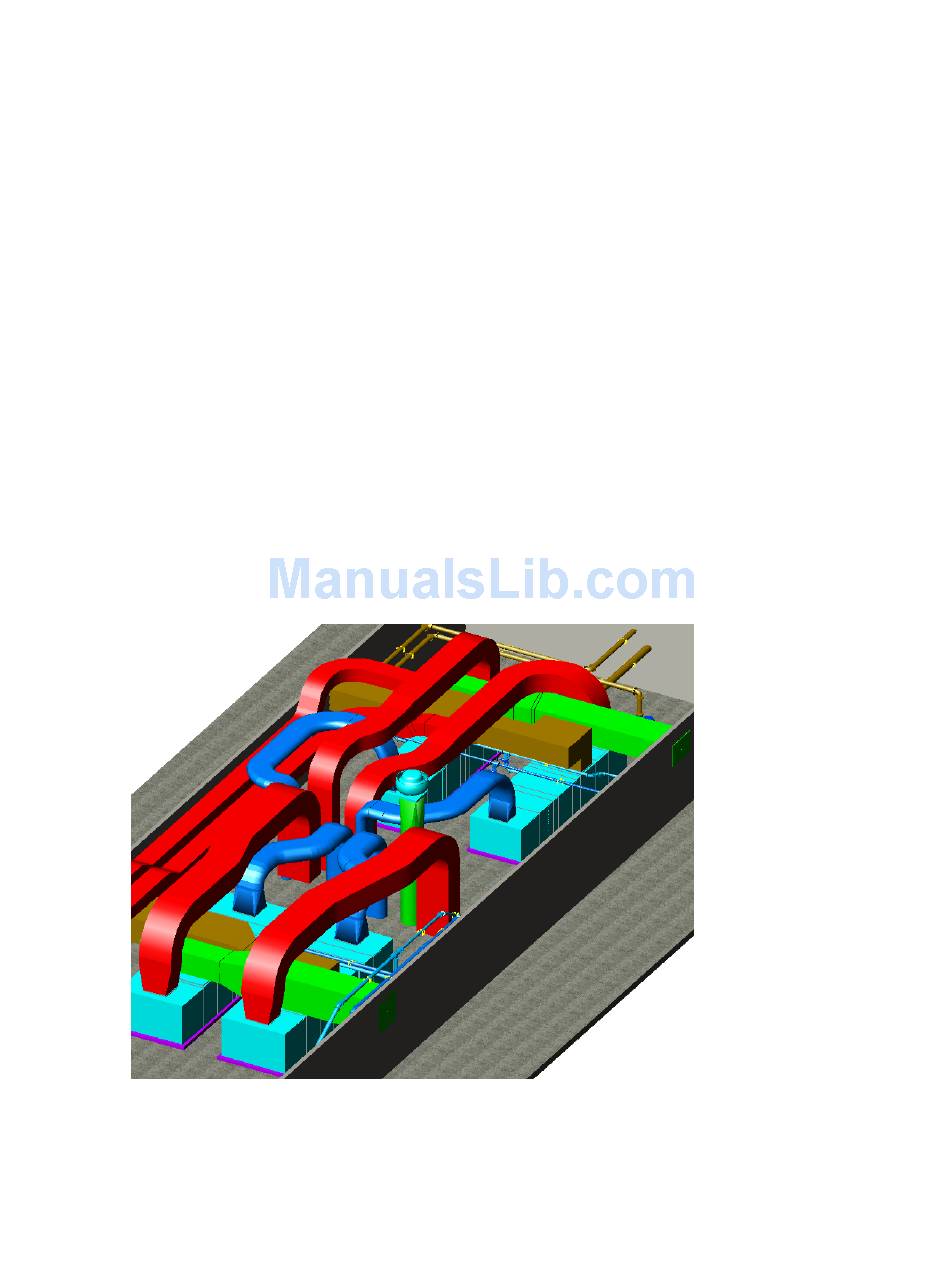

An example of rooftop mechanical systems.
Before you begin drafting, you can establish design preferences and HVAC system definitions that fit your
project. Once you define the systems for your drawing, you can assign systems to equipment and ductwork
as you draw and modify your duct networks.
