TIP You can add labels to wires to indicate circuit assignments or wire styles. For more information, see
page 559.

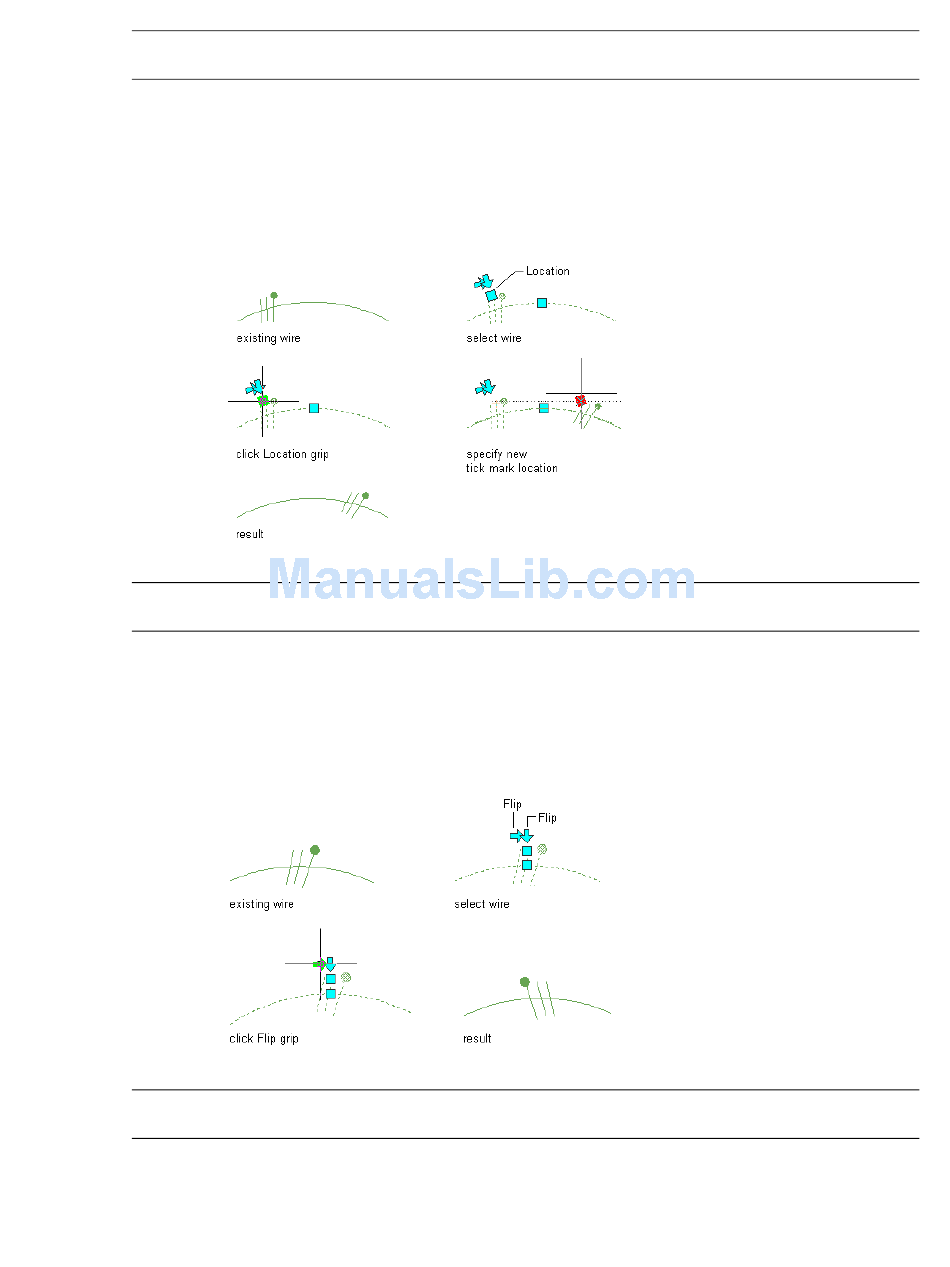

Moving Tick Marks on Wires

1 Select the wire.
2 Click the Location grip for the tick marks.
3 Move the grip to a new location along the wire, and click to specify the point.
4 Press Esc.
NOTE You specify whether to display tick marks on wire segments and home runs in the
of wire styles.

Flipping Tick Marks on Wires

1 Select the wire.
2 Click a Flip grip to flip the tick marks in the direction indicated by the arrow.
3 Press Esc.
NOTE You specify whether to display tick marks on wire segments and home runs in the
of wire styles.
Labels on
annotation properties
annotation properties
Modifying Wires | 443
