Line 230 Volts
Single
Phase
A1
-q
1-[-1 3-L2 5-Lg lgNO_
2-T1 4-T2 6-Tg 14N _
Set Thermal
Overload
At
18 Amps
4-T2
I - °
To Motor

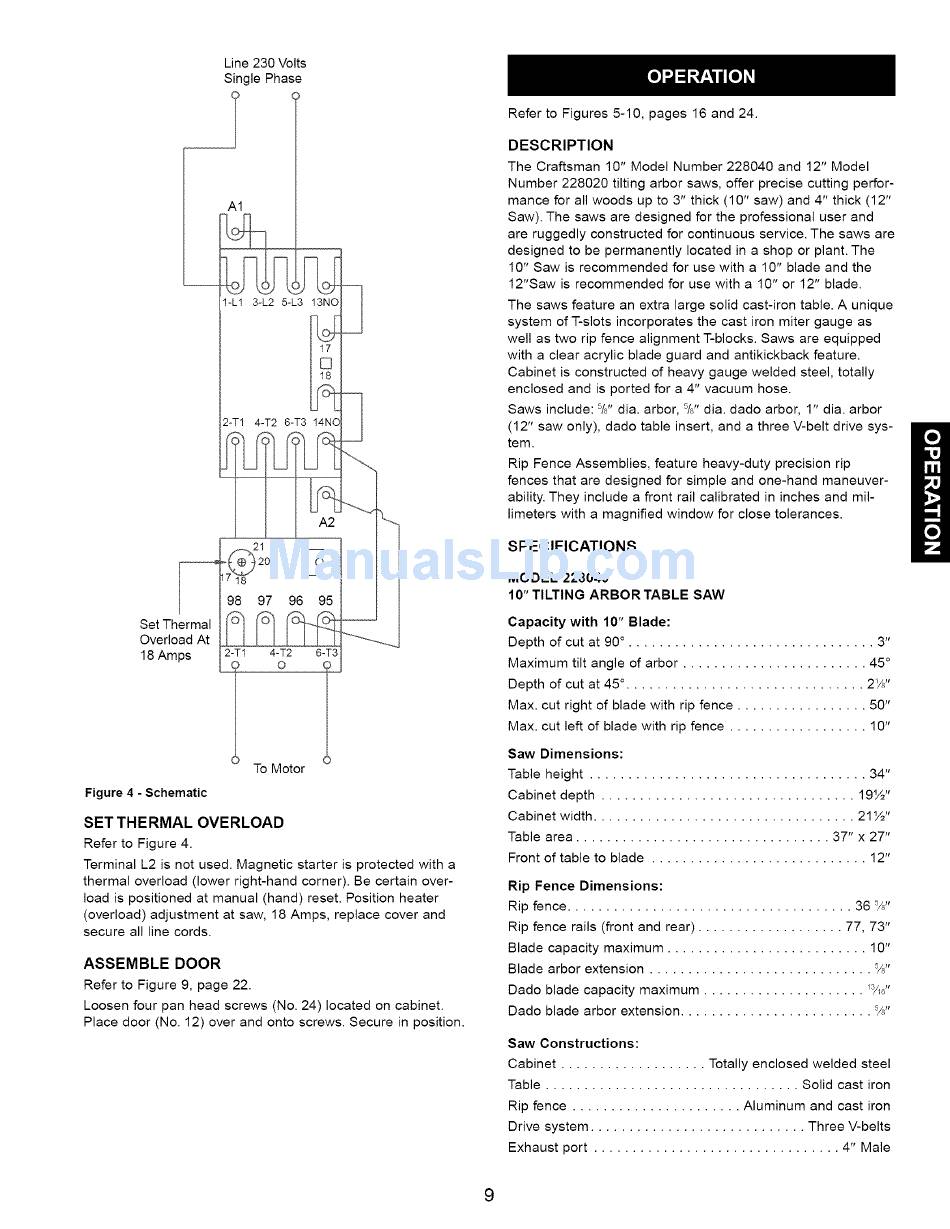

Figure 4 - Schematic
SET
THERMAL
OVERLOAD
Refer to Figure 4.
Terminal
L2 is not used. Magnetic
starter
is protected
with a
thermal
overload
(lower
right-hand
corner).
Be certain
over-
load is positioned
at manual
(hand)
reset.
Position
heater
(overload)
adjustment
at saw, 18 Amps,
replace
cover
and
secure
all line cords.
ASSEMBLE
DOOR
Refer to Figure 9, page 22.
Loosen four pan head screws (No. 24) located on cabinet.
Place door (No. 12) over and onto screws. Secure in position.
Refer to Figures
5-10,
pages
16 and 24.
DESCRIPTION
The Craftsman
10" Model
Number
228040
and 12" Model
Number
228020
tilting
arbor
saws, offer precise
cutting
perfor-
mance
for all woods
up to 3" thick (10"
saw) and 4" thick
(12"
Saw). The saws are designed
for the professional
user and
are ruggedly
constructed
for continuous
service.
The saws are
designed
to be permanently
located
in a shop or plant. The
10" Saw
is recommended
for use with a 10" blade
and the
12"Saw
is recommended
for use with a 10" or 12" blade.
The saws feature
an extra
large
solid cast-iron
table. A unique
system
of T-slots
incorporates
the cast iron miter
gauge
as
well as two rip fence
alignment
T-blocks.
Saws are equipped
with a clear
acrylic
blade
guard and antikickback
feature.
Cabinet
is constructed
of heavy
gauge
welded
steel, totally
enclosed
and is ported
for a 4" vacuum
hose.
Saws
include:
5/8" dia. arbor,
%" dia. dado arbor,
1" dia. arbor
(12" saw only), dado
table
insert,
and a three V-belt
drive sys-
tem.
Rip Fence
Assemblies,
feature
heavy-duty
precision
rip
fences
that are designed
for simple
and one-hand
maneuver-
ability. They
include
a front rail calibrated
in inches
and mil-
limeters
with a magnified
window
for close tolerances.
SPECIFICATIONS
MODEL
228040
10" TILTING
ARBOR
TABLE
SAW
Capacity
with
10" Blade:
Depth of cut at 90 ° . ...............................
3"
Maximum
tilt angle
of arbor
........................
45 °
Depth of cut at 45 ° . ..............................
2I/8''
Max. cut right
of blade with
rip fence
.................
50"
Max. cut left of blade with
rip fence
..................
10"
Saw
Dimensions:
Table height
....................................
34"
Cabinet
depth
.................................
19½"
Cabinet
width ..................................
21 ½"
Table area .................................
37" x 27"
Front of table to blade
............................
12"
Rip Fence
Dimensions:
Rip fence .....................................
36 _"
Rip fence
rails (front and rear) ...................
77, 73"
Blade
capacity
maximum
..........................
10"
Blade
arbor extension
.............................
%"
Dado blade
capacity
maximum
.....................
_:Y_6"
Dado blade
arbor extension
.........................
%"
Saw Constructions:
Cabinet
...................
Totally
enclosed
welded
steel
Table .................................
Solid
cast iron
Rip fence
......................
Aluminum
and cast iron
Drive system
............................
Three
V-belts
Exhaust
port
................................
4" Male
