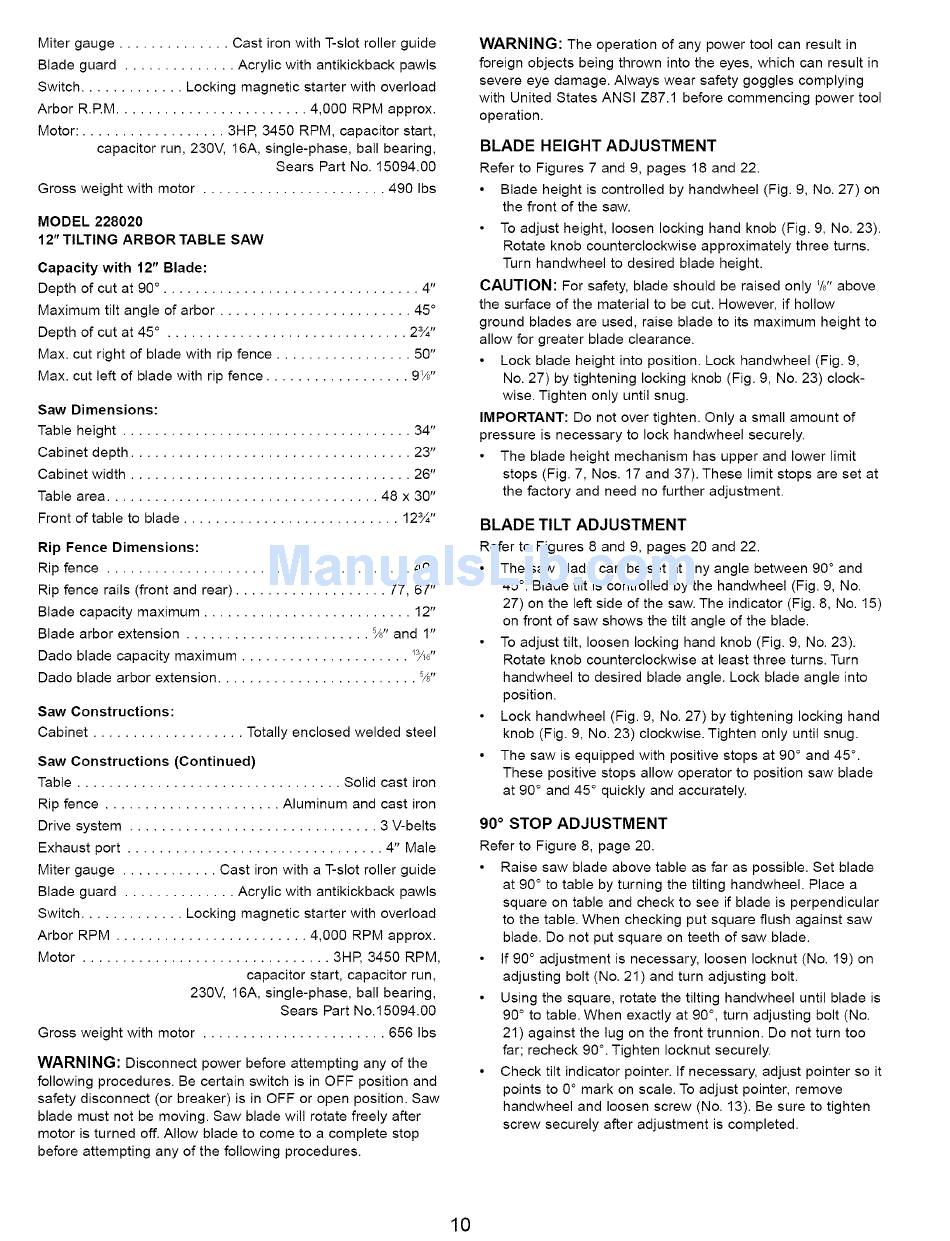

Craftsman 351.228040 Operator's Manual page 10

10/12" right-tilting arbor saw
Hide thumbs

Advertisement

Miter g auge . .............
Cast i ronwith T-slot roller g uide
Blade guard ..............
Acrylic w ithantikickback
pawls
Switch .............
Locking magnetic starter
with overload
Arbor
R.RM ........................
4,000
RPM approx.
Motor:
..................
3HP, 3450
RPM, capacitor
start,
capacitor
run, 230V,
16A, single-phase,
ball bearing,
Sears
Part No. 15094.00
Gross weight
with motor
.......................
490 Ibs
MODEL
228020
12" TILTING
ARBOR
TABLE
SAW
Capacity
with 12" Blade:
Depth
of cut at 90 ° . ...............................
4"
Maximum
tilt angle
of arbor
........................
45 °
Depth
of cut at 45 ° . .............................
2¾"
Max. cut right
of blade with
rip fence
.................
50"
Max. cut left of blade
with rip fence ..................
9I/8"
Saw
Dimensions:
Table height
....................................
34"
Cabinet
depth
...................................
23"
Cabinet
width
...................................
26"
Table area ..................................
48 x 30"
Front of table to blade ...........................
12¾"
Rip Fence
Dimensions:
Rip fence
......................................
40"
Rip fence
rails (front
and rear) ...................
77, 67"
Blade
capacity
maximum
..........................
12"
Blade
arbor extension
.......................
%" and 1"
Dado blade
capacity
maximum
.....................
_:Yd'
Dado blade
arbor extension
.........................
%"
Saw
Constructions:
Cabinet
...................
Totally
enclosed
welded
steel
Saw
Constructions
(Continued)
Table
.................................
Solid
cast iron
Rip fence
......................
Aluminum
and cast iron
Drive system
...............................
3 V-belts
Exhaust
port
................................
4" Male
Miter
gauge
............
Cast
iron with a T-slot roller
guide
Blade
guard
..............
Acrylic
with antikickback
pawls
Switch .............
Locking
magnetic
starter
with overload
Arbor
RPM
........................
4,000
RPM approx.
Motor
...............................
3HP, 3450
RPM,
capacitor
start,
capacitor
run,
230V,
16A, single-phase,
ball bearing,
Sears
Part No.15094.00
Gross weight
with motor
.......................
656 Ibs
WARNING:
Disconnect
power
before attempting
any of the
following
procedures.
Be certain
switch
is in OFF position
and
safety disconnect
(or breaker)
is in OFF or open
position.
Saw
blade
must not be moving.
Saw
blade will rotate
freely
after
motor
is turned
off. Allow blade to come to a complete
stop
before
attempting
any of the following
procedures.
WARNING:
The operation
of any power
tool can result
in
foreign
objects
being
thrown
into the eyes, which
can result in
severe
eye damage.
Always
wear safety
goggles
complying
with United
States
ANSI
Z87.1
before
commencing
power
tool
operation.
BLADE
HEIGHT
ADJUSTMENT
Refer to Figures
7 and 9, pages
18 and 22.
Blade
height
is controlled
by handwheel
(Fig. 9, No. 27) on
the front of the saw.
To adjust
height,
loosen
locking
hand knob (Fig. 9, No. 23).
Rotate
knob counterclockwise
approximately
three turns.
Turn handwheel
to desired
blade
height.
CAUTION:
For safety,
blade should
be raised
only W' above
the surface
of the material
to be cut. However,
if hollow
ground
blades
are used, raise blade
to its maximum
height to
allow for greater
blade
clearance.
Lock blade
height
into position.
Lock handwheel
(Fig. 9,
No. 27) by tightening
locking
knob (Fig. 9, No. 23) clock-
wise. Tighten
only until snug.
IMPORTANT:
Do not over tighten.
Only a small
amount
of
pressure
is necessary
to lock handwheel
securely.
The blade
height
mechanism
has upper
and lower limit
stops (Fig. 7, Nos. 17 and 37). These
limit stops are set at
the factory
and need
no further
adjustment.
BLADE
TILT
ADJUSTMENT
Refer to Figures
8 and 9, pages
20 and 22.
The saw blade
can be set at any angle between
90 ° and
45 °. Blade tilt is controlled
by the handwheel
(Fig. 9, No.
27) on the left side of the saw. The indicator
(Fig. 8, No. 15)
on front of saw shows the tilt angle of the blade.
To adjust tilt, loosen
locking
hand
knob (Fig. 9, No. 23).
Rotate
knob counterclockwise
at least three turns. Turn
handwheel
to desired
blade angle.
Lock blade angle
into
position.
Lock handwheel
(Fig. 9, No. 27) by tightening
locking
hand
knob
(Fig. 9, No. 23) clockwise.
Tighten
only until snug.
The saw is equipped
with positive
stops
at 90 ° and 45 °.
These
positive
stops allow operator
to position
saw blade
at 90 ° and 45 ° quickly
and accurately.
90 ° STOP
ADJUSTMENT
Refer to Figure
8, page
20.
Raise saw blade
above table
as far as possible.
Set blade
at 90 ° to table by turning
the tilting
handwheel.
Place
a
square
on table and check
to see if blade
is perpendicular
to the table. When
checking
put square
flush against
saw
blade.
Do not put square
on teeth
of saw blade.
If 90 ° adjustment
is necessary,
loosen
Iocknut
(No. 19) on
adjusting
bolt (No. 21) and turn adjusting
bolt.
Using the square,
rotate
the tilting
handwheel
until blade is
90 ° to table. When
exactly
at 90 °, turn adjusting
bolt (No.
21) against
the lug on the front trunnion.
Do not turn too
far; recheck
90 °. Tighten
Iocknut
securely.
Check
tilt indicator
pointer.
If necessary,
adjust
pointer
so it
points
to 0 ° mark on scale. To adjust
pointer,
remove
handwheel
and loosen
screw
(No. 13). Be sure to tighten
screw
securely
after adjustment
is completed.
