Craftsman 351.228040 Operator's Manual page 5

10/12" right-tilting arbor saw
Hide thumbs

Advertisement

THINK
SAFETY
Safety
is a combination
of operator
common
sense and alert-
ness at all times
when the saw is being
used.
Never use another
person
as a substitute
for a table exten-
sion, or as additional
support
for a workpiece
that is longer
or
wider than
basic saw table,
or to assist
in feeding,
supporting
or pulling
the workpiece.
Do not pull the workpiece
through
the saw blade--position
your body at the infeed
side of the guard; start
and complete
the cut from that same
side. This will require
added
table sup-
port for long or wide workpieces
that extend
beyond
the
length
or width
of the saw table.
CAUTION:
Follow
safety
instructions
that appear
on the front
of your saw.
Refer to Figure
2.
CAUTION:
Do not attempt
assembly
if parts
are missing.
Use this manual
to order
replacement
parts.
Check
for shipping
damage.
If damage
has occurred,
a claim
must be filed with carrier.
Check for completeness.
immediately
report
missing
or damaged
parts
to Sears
at 1-
800-4-MY-HOME
(1-800-469-4663).
The saw is shipped
complete
in three
crates. The table saw
comes
assembled
as one unit in the first carton.
Additional
parts
which
need to be fastened
to the saw should
be located
and accounted
for before
assembling:
A
Table Extension
(2)
B
Cabinet
Door
C
Miter
Gauge
Assembly
D
Blade
Guard
Assembly
E
Support
Rod and Bracket
Guard
F
Locking
Knob (2)
G
Handwheel
and Crank Handle
Assembly
(2)
H
Arbor Wrench
I
_lJ' Arbor
Nut (228020
only)
J
_lJ' Blade
Flange
(228020
only)
K
Dado
Insert Assembly
L
T-Blocks
(2) with 6-1.0 x 20mm
Socket
Head Bolt
M
%" Arbor
(228020
only)
N
_tJ' Dado Arbor
O
10-1.5
x 35mm
Hex Head Bolt with Lock Washer
(6)
NOTE:
1" Arbor,
Nut and Flange
are installed
on
228020
12" Saw. 5/8" Arbor,
Nut and Flange
are installed
on 228040
10" Saw.
The second
carton
contains:
P
Rip Fence Assembly
Q
Front,
Rear and Guide
Rails
Scale
(not shown)
Hardware
Bag (not shown),
PIN 23135.00
%
F
>
A

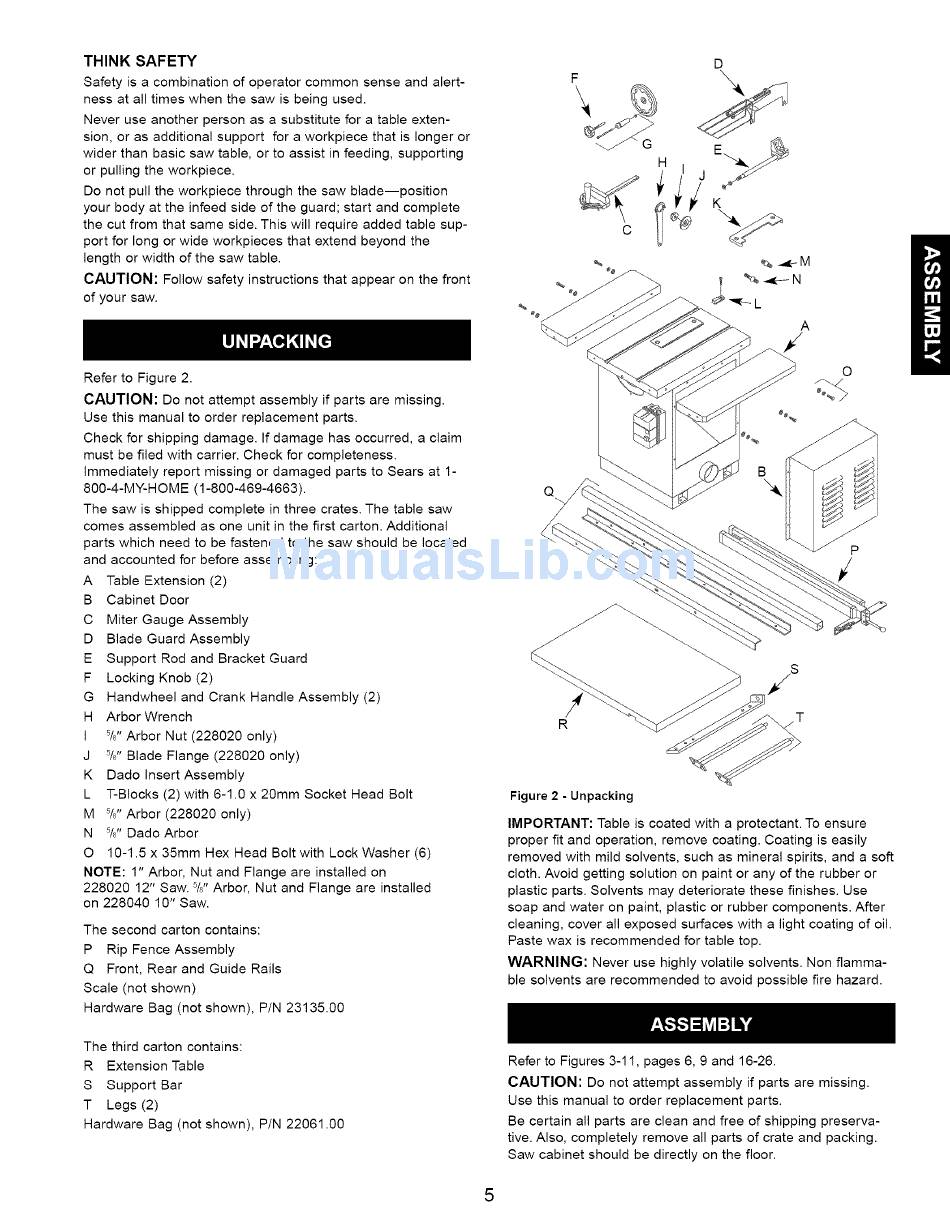

Figure 2 - Unpacking
IMPORTANT:
Table is coated
with a protectant.
To ensure
proper
fit and operation,
remove
coating.
Coating
is easily
removed
with mild solvents,
such as mineral
spirits,
and a soft
cloth. Avoid
getting
solution
on paint or any of the rubber
or
plastic
parts.
Solvents
may deteriorate
these
finishes.
Use
soap and water
on paint,
plastic
or rubber
components.
After
cleaning,
cover all exposed
surfaces
with a light coating
of oil.
Paste wax is recommended
for table top.
WARNING:
Never
use highly
volatile
solvents.
Non flamma-
ble solvents
are recommended
to avoid possible
fire hazard.
The third carton
contains:
R
Extension
Table
S
Support
Bar
T
Legs (2)
Hardware
Bag (not shown),
PIN 22061.00
Refer to Figures
3-11, pages 6, 9 and 16-26.
CAUTION:
Do not attempt
assembly
if parts
are missing.
Use this manual
to order
replacement
parts.
Be certain
all parts
are clean
and free of shipping
preserva-
tive. Also,
completely
remove
all parts
of crate and packing.
Saw cabinet
should
be directly
on the floor.
