Brocade encryption solution overview
Data flow from server to storage
The Brocade Encryption Switch can be introduced into a SAN with minimum disruption, with no
need for SAN reconfiguration, and with no need to reconfigure host applications. Frames sent from
a host and a target LUN are redirected to a virtual target associated with the encryption switch. The
encryption switch then acts as a virtual initiator to forward the frames to the target LUN.
8
Virtual
Initiator

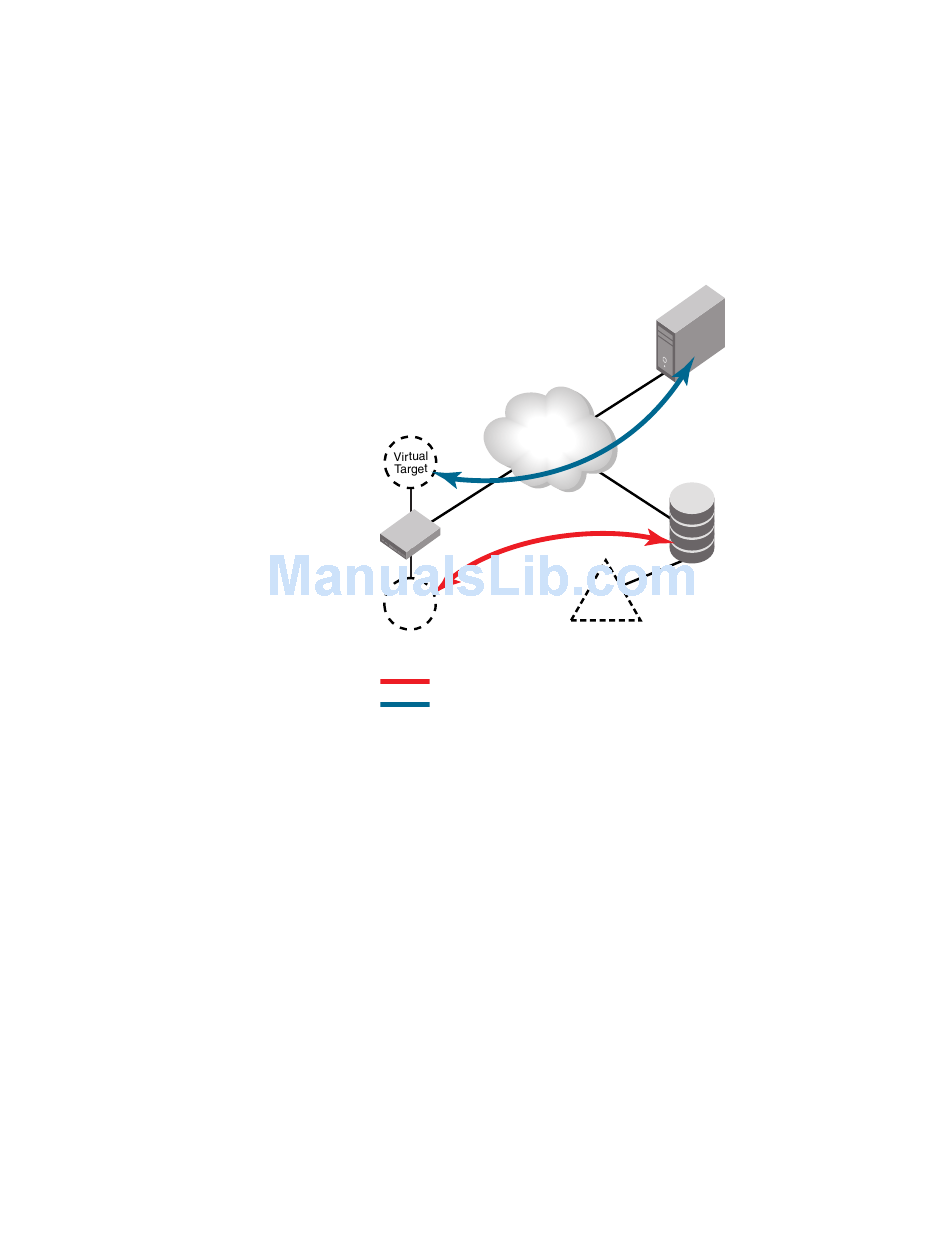

FIGURE 3
Frame redirection
Fabric 1
Encryption
Switch
Lun
X
Ciphertext
Cleartext
Fabric OS Encryption Administrator's Guide (SKM/ESKM)
Host
Target
53-1002721-01
