Deployment in Fibre Channel routed fabrics

In this deployment, the encryption switch may be connected as part of the backbone fabric to
another switch or blade that provides the EX_port connections
backbone fabric and directly provide the EX_port connections
resources can be shared with the host and target edge fabrics using device sharing between
backbone and edge fabrics.
Fabric OS Encryption Administrator's Guide (SKM/ESKM)
53-1002721-01

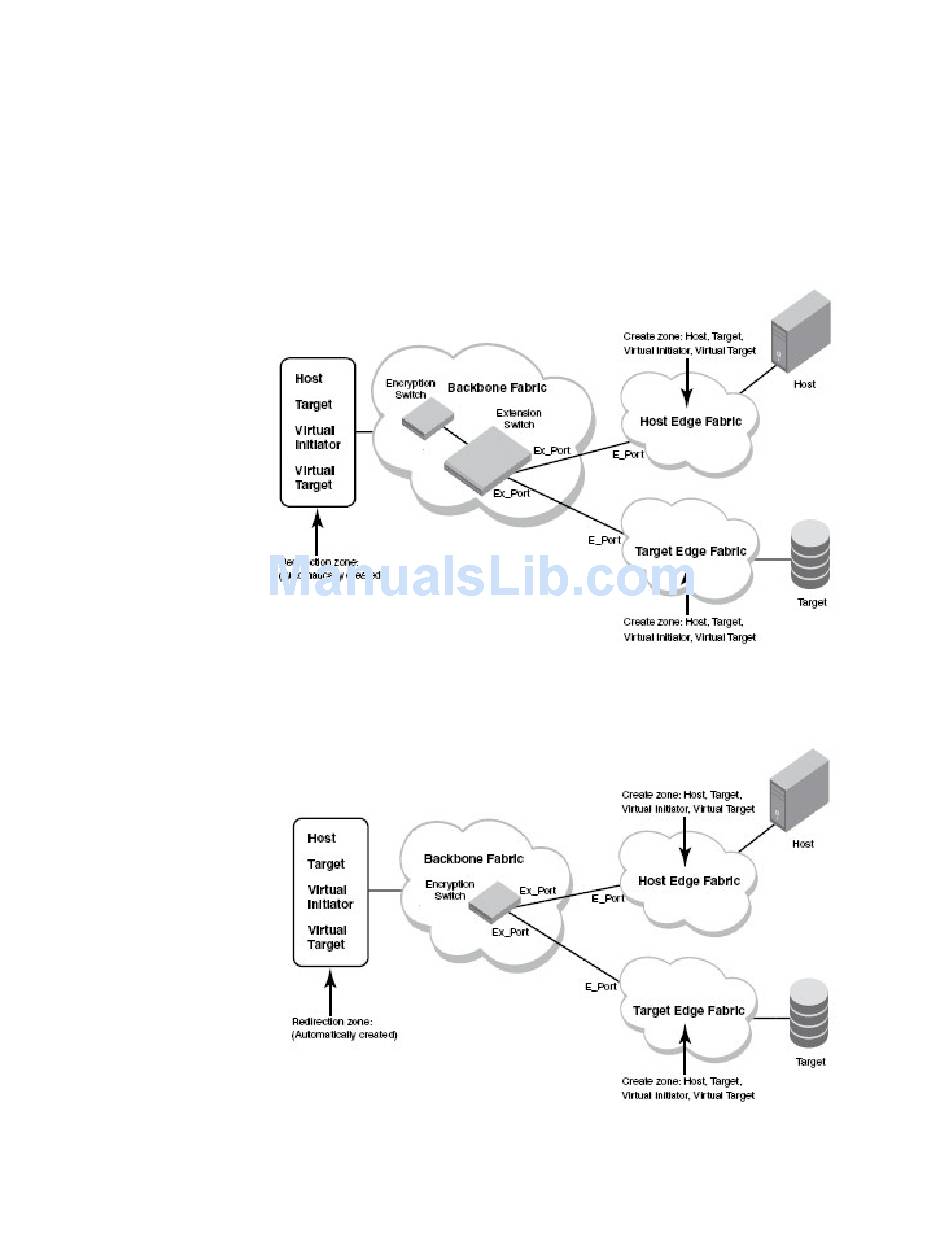

FIGURE 96
Encryption switch connected to FC router as part of backbone fabric
FIGURE 97
Encryption switch as FC router and backbone fabric

Deployment in Fibre Channel routed fabrics

(Figure
(Figure
4
96), or it may form the
97). The encryption
207
