5 Technical Reference

Server Board Jumpers

Table 6.

Configuration Jumper (1J15)

Jumper Name
CMOS clear
Password Disable
Reserved
Reserved
Reserved
Reserved
2 4 6 8
1
3 5 7

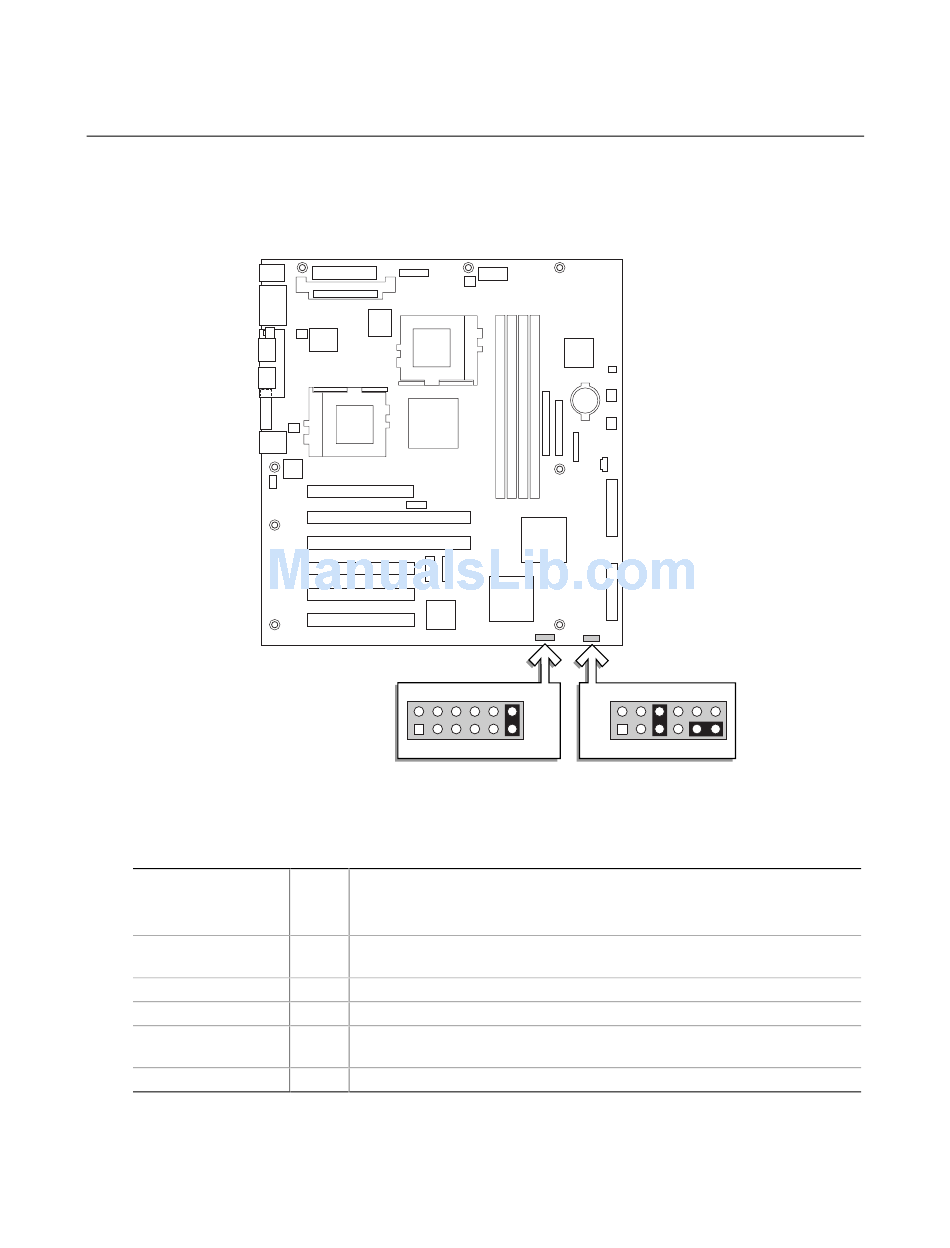

Figure 14. Jumper Locations
Pins What it does at system reset
1-2 If these pins are jumpered, the CMOS settings will be cleared on the next
reset. These pins should not be jumpered for normal operation.
3-4 If these pins are jumpered, the password will be cleared on the next reset.
These pins should not be jumpered for normal operation.
5-6 Reserved. These pins should not be jumpered for normal operation.
7-8 Reserved. These pins should not be jumpered for normal operation.
9-10 If these pins are jumpered, the system will attempt BIOS recovery. These
pins should not be jumpered for normal operation.
11-12 Reserved. These pins should be jumpered for normal operation.
10 12 2 4 6
1J15 1L4
1
11
9 3 5
8 10 12
11
7 9
