6 Technical Reference

Server Board Jumpers

Table 10.

Configuration Jumper

Jumper Name
BMC WP
CMOS CLR
PSWD CLR
RCVRY BOOT
BMC
A
WP
CMOS
B
CLR
PSWD
C
CLR
RCVRY
D
BOOT

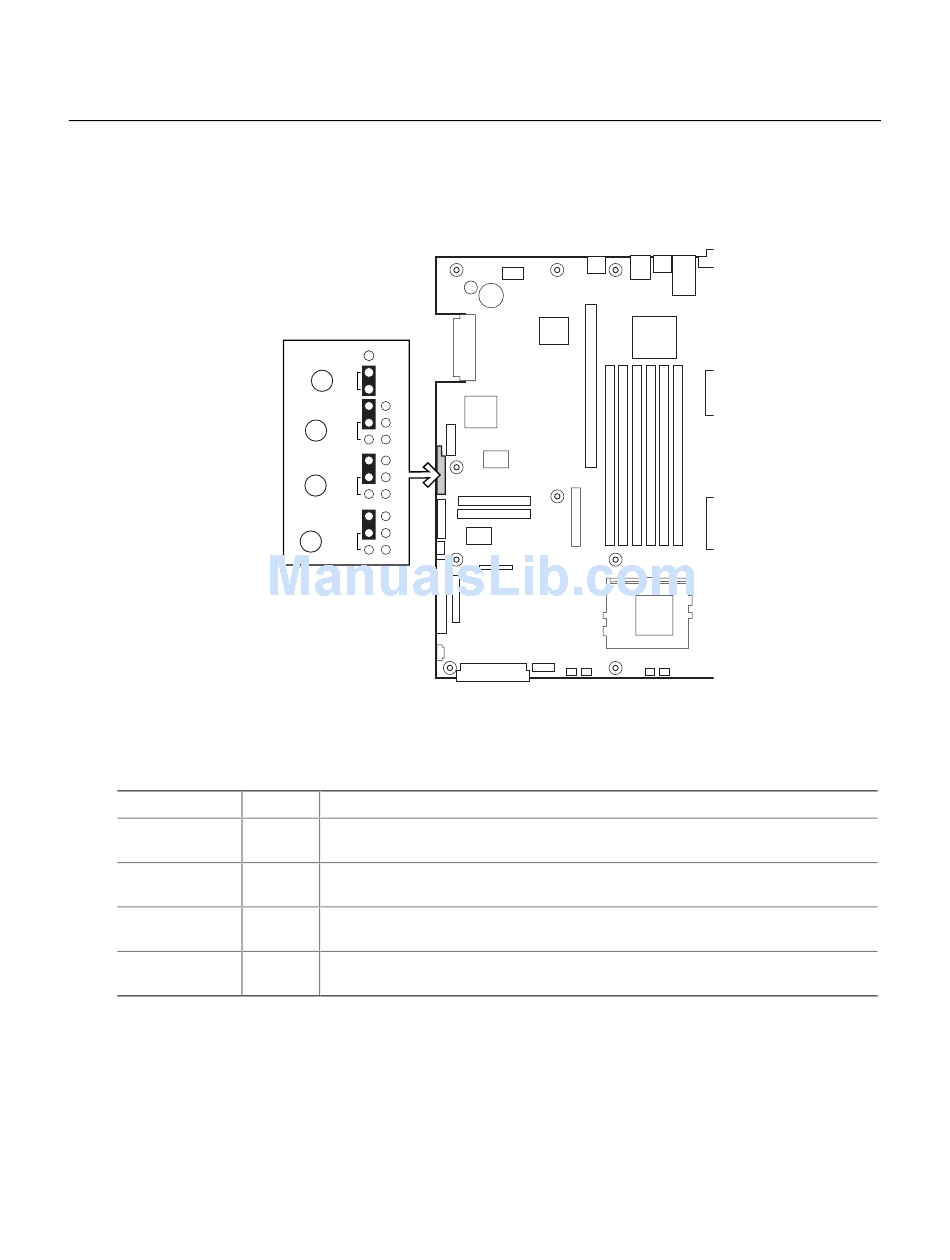

Figure 30. Jumper Locations
Pins What it does at system reset
A BMC boot block is write protected (normal operation). If these pins are not
jumpered, BMC boot block is erasable and programmable at next reset.
B If these pins are jumpered, the CMOS settings are cleared. These pins should
not be jumpered for normal operation.
C If these pins are jumpered, the CMOS password is cleared. These pins
should not be jumpered for normal operation.
D If these pins are jumpered, the system will attempt BIOS recovery. These pins
should not be jumpered for normal operation.
OM11714
91
