Place The Heatsink; Attach The Heatsink - Intel STL2 - Server Board Motherboard Product Manual

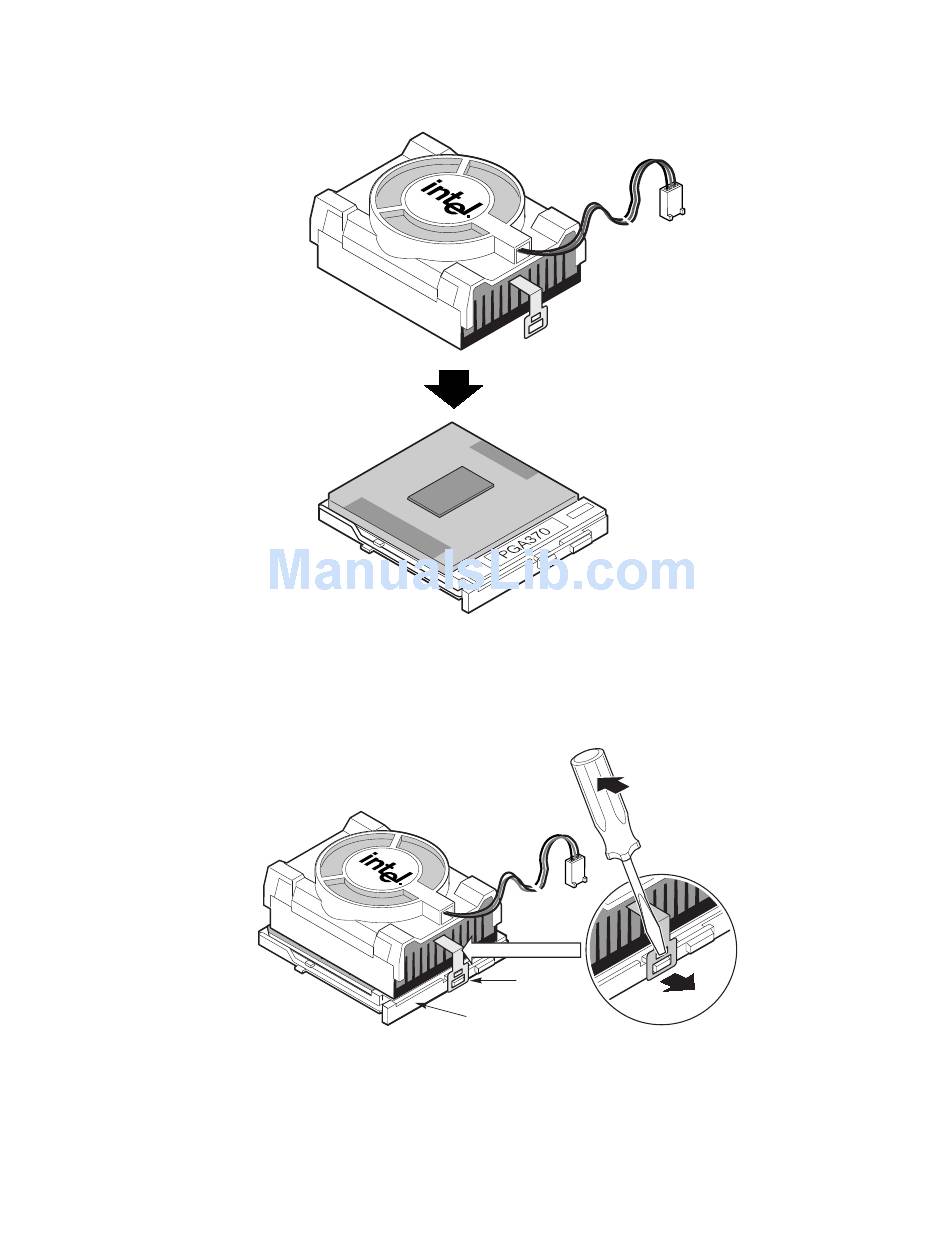

6. Place the fan heatsink on top of the processor.
OM10680
Figure 7. Place the Heatsink
7. Attach the fan heatsink clip to the processor socket. We recommend attaching the side away
from the fan cable first. Then use a screw driver or other tool to attach the remaining side.
A
B
OM10681
Figure 8. Attach the Heatsink
24 Intel Server Board STL2 Product Guide
