Adding or Replacing a Processor

If you are adding a second processor to your system, you must first remove the terminator from the
secondary processor socket. The second processor must be compatible with the first processor
(within one stepping, same voltage, same speed, see the Intel support website for specifics).
1. Observe the safety and ESD precautions at the beginning of this chapter and the additional
cautions given here.
2. Remove the side cover (see your system or chassis documentation for instructions).
3. Raise the locking bar on the socket.
4. Aligning the pins of the processor with the socket, insert the processor into the socket. Note
what the processor speed is so you can set the jumpers correctly.
22

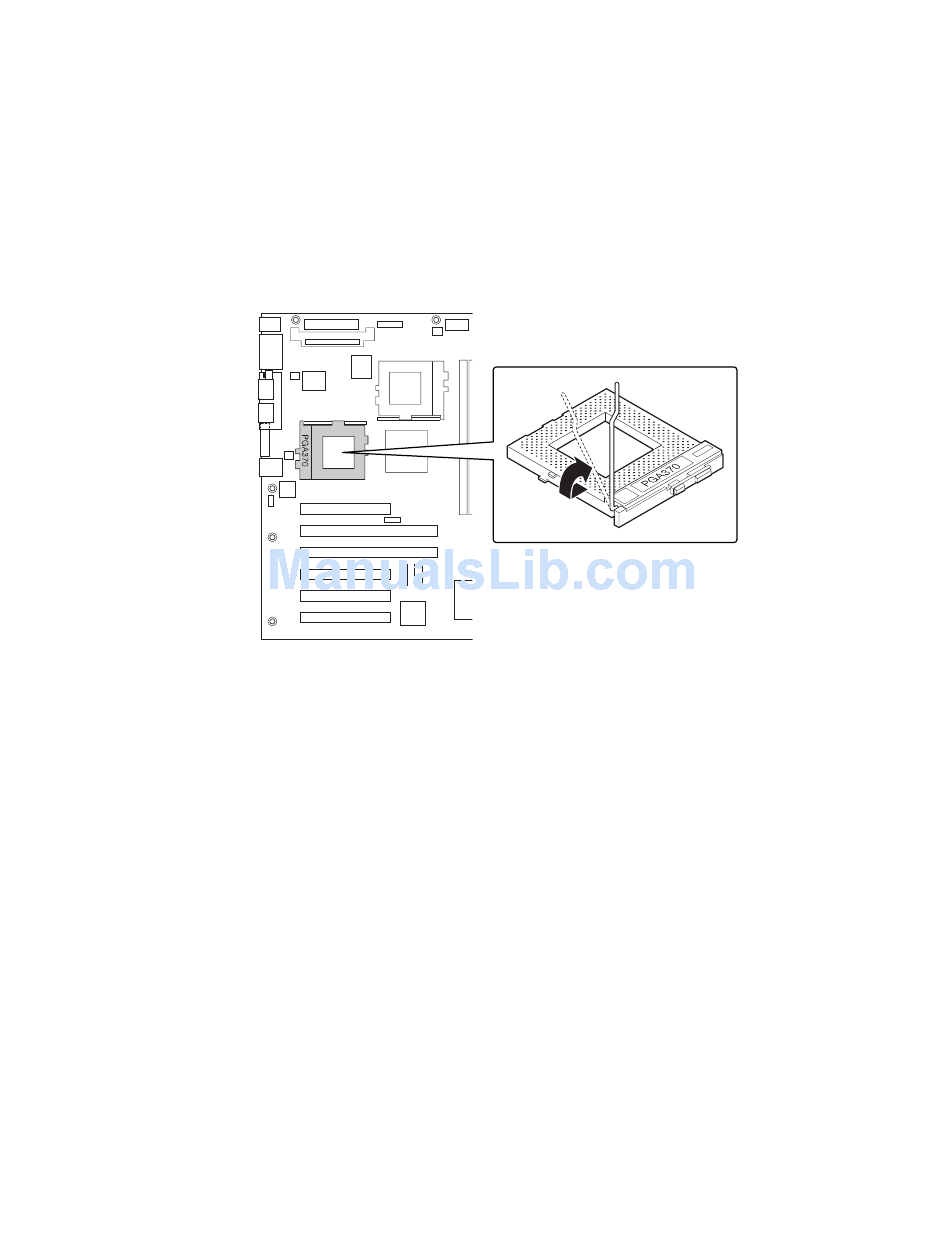

Figure 4. Raise the Locking Bar
OM10686
