Intel® Server Boards S3200SH/S3210SH TPS
Functional Architecture
3.
Functional Architecture
This chapter provides a high-level description of the functionality associated with the
architectural blocks that make up the Intel
®
Server Boards S3200SH/S3210SH.
®
Figure 7. Intel

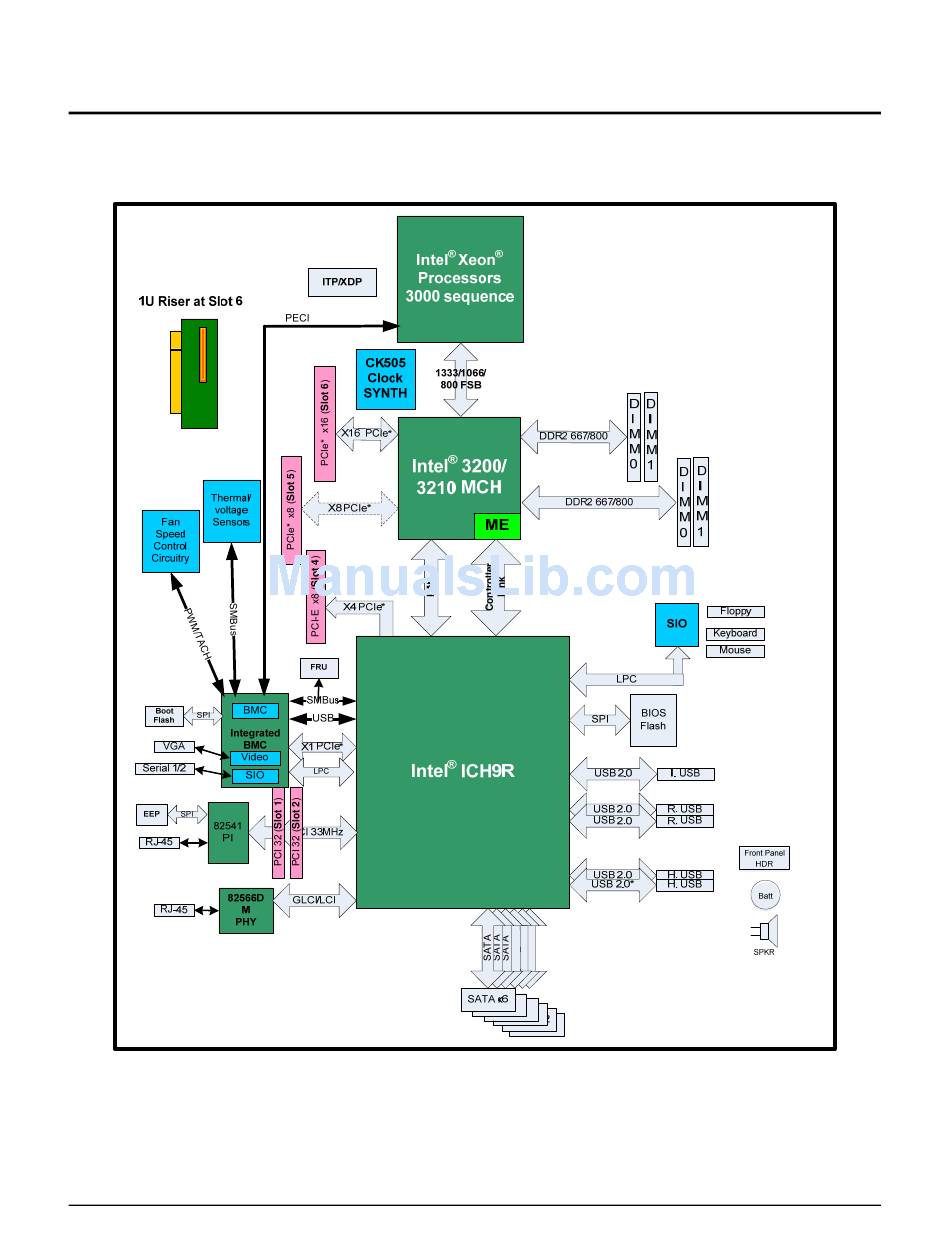

Server Boards S3200SH/S3210SH LC/L/V SKU–Block Diagram
Revision 1.8
13
Intel Order Number: E14960-009
