Connectors and Jumper Blocks
Keyboard
Mouse
Figure 36. Intel
6.7.2

Chassis Intrusion Header

A 1x2 pin header (J1B2) is used in chassis that support a chassis intrusion switch. The Intel
ICH9R monitors this header. Table 62 shows the pin-out definition for this header.
6.7.3

HDD Active LED Header

There is a 1x2 pin header for HDD LED connection. This jumper is reserved for PCI add-in
cards that support the SCSI or SATA interface with an external HDD LED activity cable.
6.7.4

IPMB

There is a 4-pin IPMB connector jumper. This jumper is reserved for connecting an add-in
server management module.
6.7.5

HSBP

There is a 4-pin HSBP connector jumper. This jumper is reserved for connecting to the Intel
Entry Server Chassis SC5299-E hot-swap backplane.
Revision 1.8
®

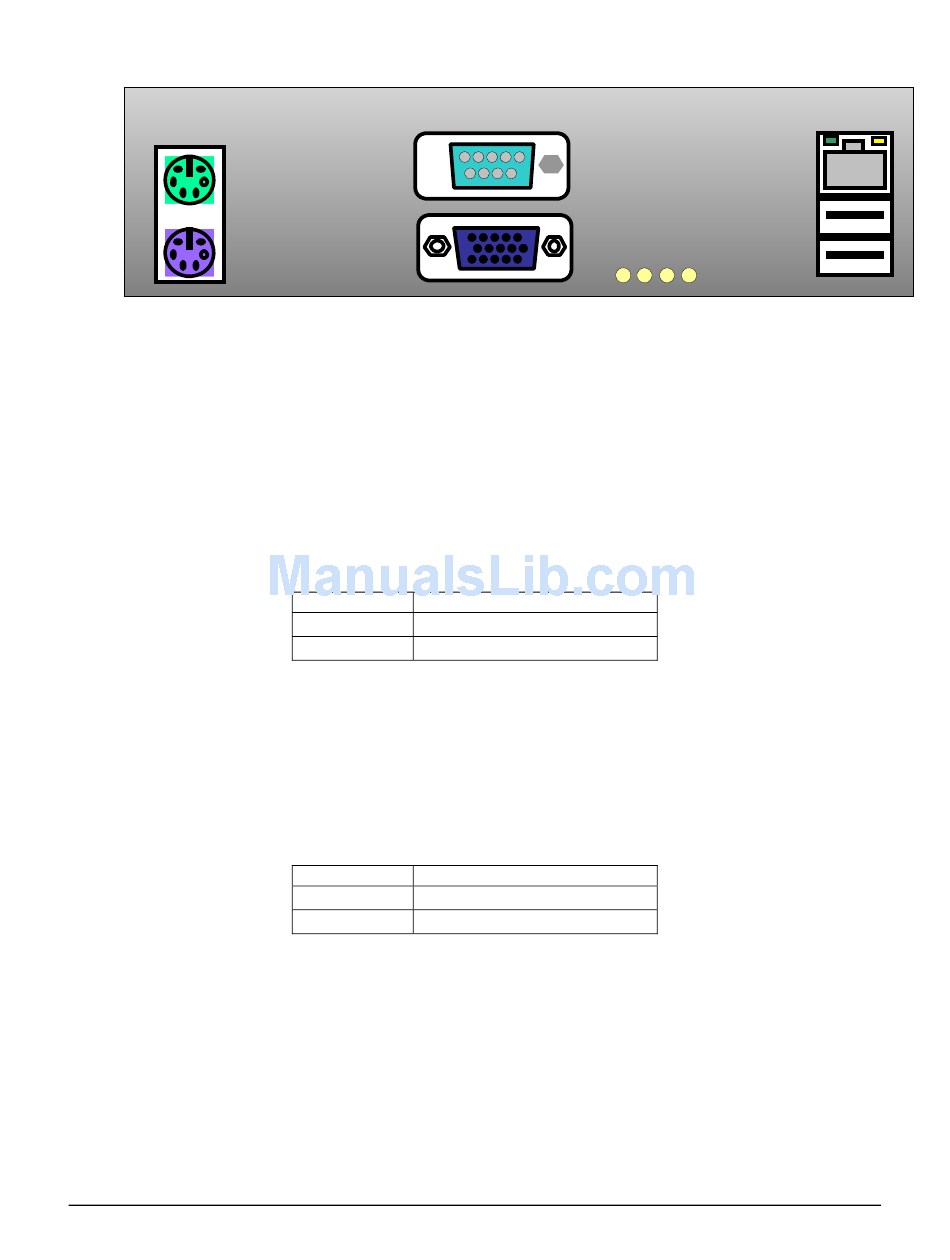

Server Board S3200SHV Back Panel I/O Connectors

Table 62. Chassis Intrusion Header (J1B2) Pin-out

Pin
1 FP_INTRUDER_HDR_P1
2 FP_INTRUDER_HDR_N

Table 63. HDD LED Header (J1J1) Pin-out

Pin
1 FM_SIO_SCSI_ACT_N
2 TP_SCSI_ACT_PIN2
Intel Order Number: E14960-009
Intel® Server Boards S3200SH/S3210SH TPS
Serial A
VGA
POST Code LED
Signal Name
Signal Name
LAN
USB
®
®
93
