Display Assembly - Toshiba SATELLITE M30-35 Series Maintenance Manual

4 Replacement Procedures

4.11 Display Assembly

Removing the Display Assembly
To remove the display assembly, follow the steps below and refer to figures
4-15 to 4-17.
1. Turn the computer face down, and remove the following screws.
• M2.5×16B
• M2.5×10B
• M2×6B
• M2×4B
10
16
16
16
4-32
FLAT HEAD screw
FLAT HEAD screw
BIND screw
S-FLAT HEAD screw
10
10
6
16

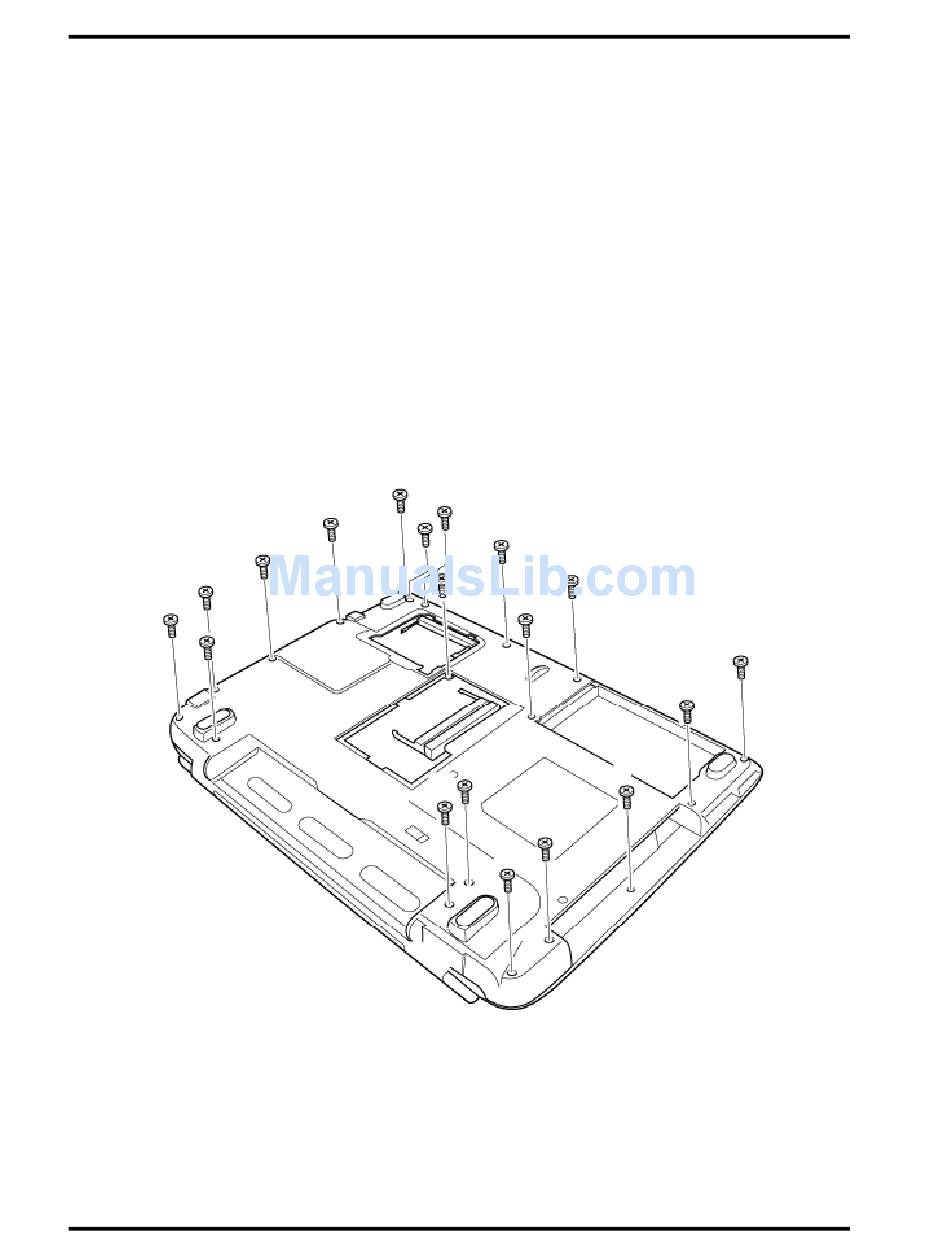

Figure 4-15 Removing the display assembly (1)
×8 ("16" in the figure below)
×8 ("10" in the figure below)
×2 ("6" in the figure below)
×1 ("4" in the figure below)
6
10
10
10
16
16
4
16
16
Satellite M30-35 Maintenance Manual (960-455)
4.11 Display Assembly
