4.25 FL Inverter

4.25 FL Inverter
Removing the FL Inverter
To remove the FL inverter, follow the steps below and refer to figure 4-39.
1. Remove the following screw securing the FL inverter.
• M2×4B
2. Peel the insulator on the FL inverter.
3. Disconnect the FL cable under the insulator from the FL inverter.
4. Disconnect the HV cable from the FL inverter.
5. Remove the FL inverter.
Insulator
FL cable
Satellite M30-35 Maintenance Manual (960-455)
S-FLAT HEAD screw

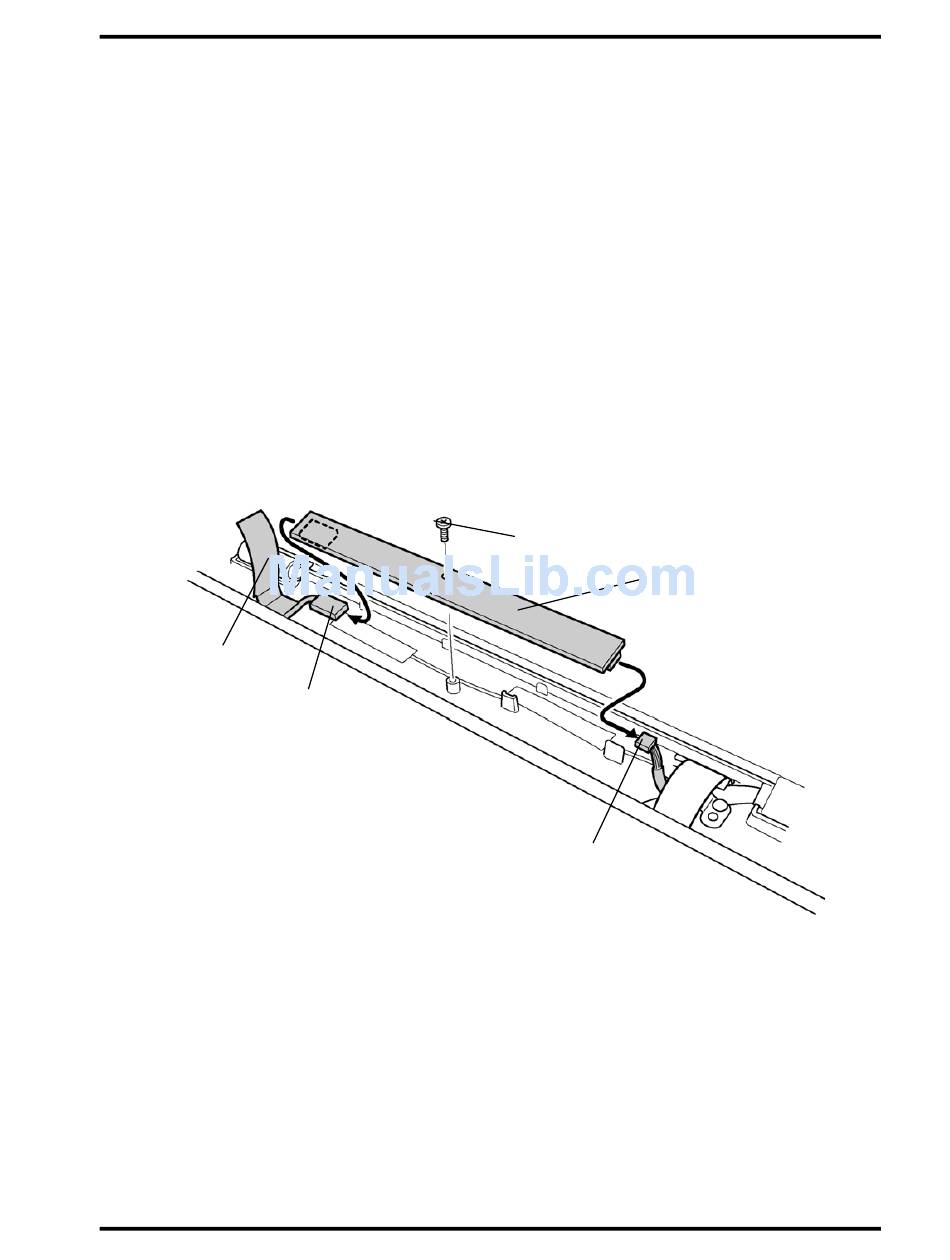

Figure 4-39 Removing the FL inverter
4 Replacement Procedures
×1
M2×4B S-FLAT HEAD
FL inverter
HV cable
4-63
