4.16 Sound Board/Touch Pad holder
4.16.2 Touch Pad holder
Removing the Touch Pad holder
To remove the touch pad holder, follow the steps below and refer to figures 4-24.
1. Disconnect the sound board I/F cable from the connector PJ7002 on the system
board.
2. Remove the touch pad holder from the system board.
Installing the Touch Pad holder
To install the touch pad holder, follow the steps below and refer to figures 4-24.
1. Install the touch pad holder on the system board.
2. Connect the sound board I/F cable to the connector PJ7002 on the system board.
Satellite M30-35 Maintenance Manual (960-455)

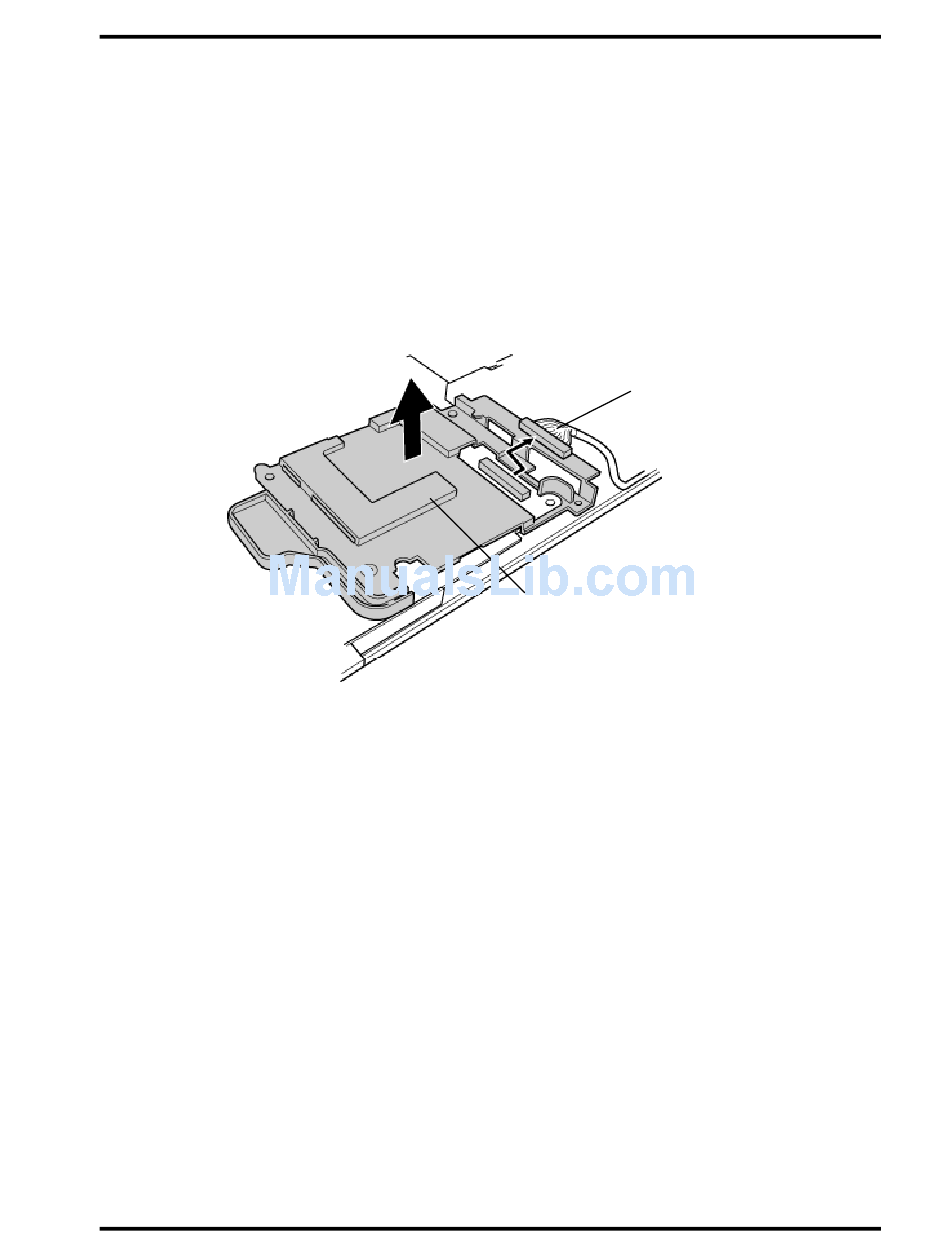

Figure 4-24 Removing the touch pad holder
4 Replacement Procedures
Sound board I/F cable
Touch pad holder
4-45
