4.14 Touch Pad
4.14 Touch Pad
Removing the Touch Pad
To remove the touch pad, follow the steps below and refer to figures 4-21.
1. Disconnect the touch pad flexible cable from the connector PJ3201 on the system
board.
2. Remove the following screws securing the touch pad.
• M2.5×8B
• M2.5×4B
3. Remove the touch pad.
Touch pad flexible cable
4. Disconnect the touch pad flexible cable from the connector on the touch pad.
Satellite M30-35 Maintenance Manual (960-455)
FLAT HEAD screw
FLAT HEAD screw
M2.5×4B FLAT HEAD

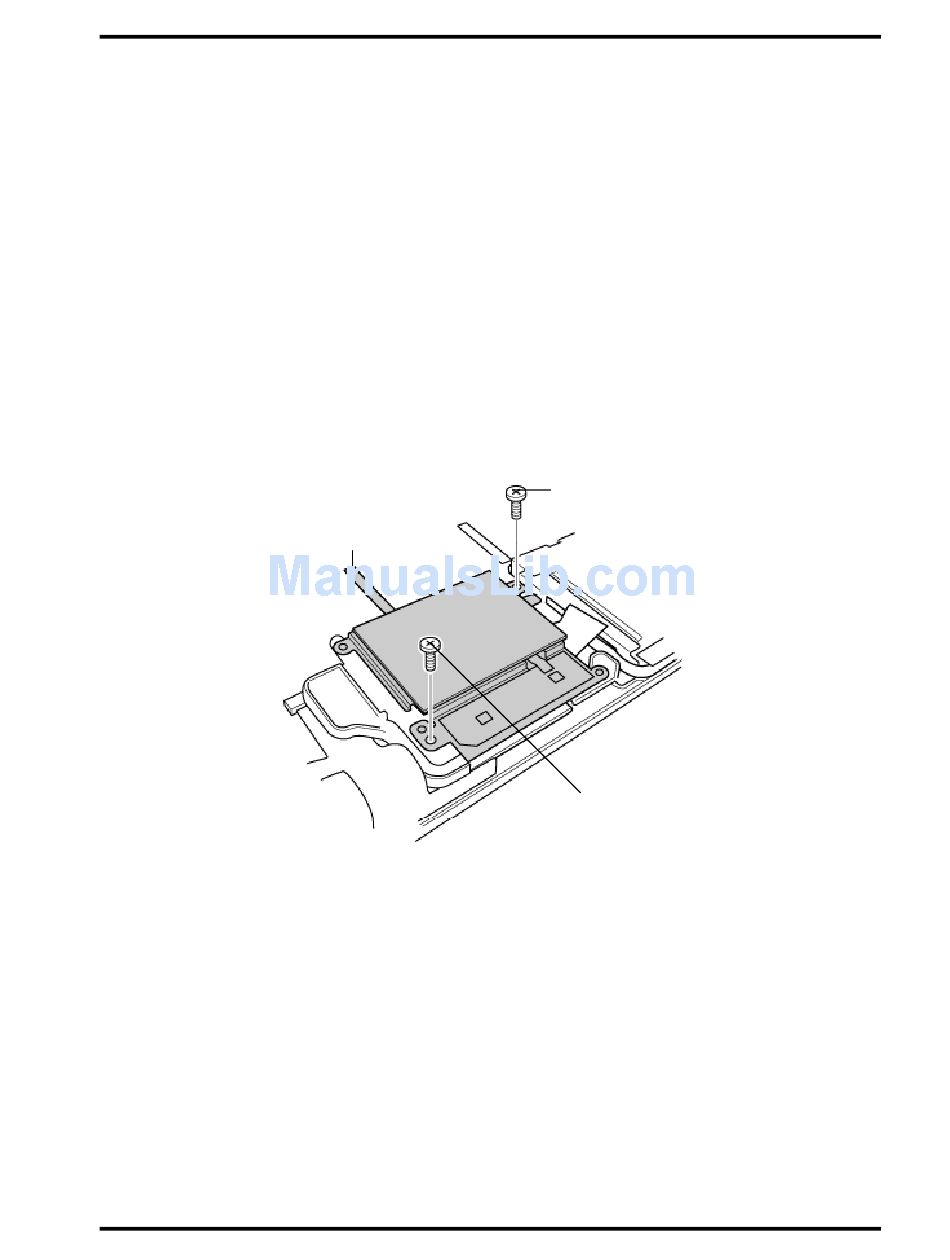

Figure 4-21
Removing the touch pad
4 Replacement Procedures
×1
×1
M2.5×8B FLAT HEAD
4-39
