Disassembly and Assembly

Carriage Home Position Sensor Removal

3.2.5.7
1. Remove theprinter mechanism. (See section 3.2.4.)
2. Discomect the sensor cable from the arriage home position sensor.
3. Unhook the 3 notches securing the carriage home position sensor to the upper frame. Then
remove the carriage home position sensor.

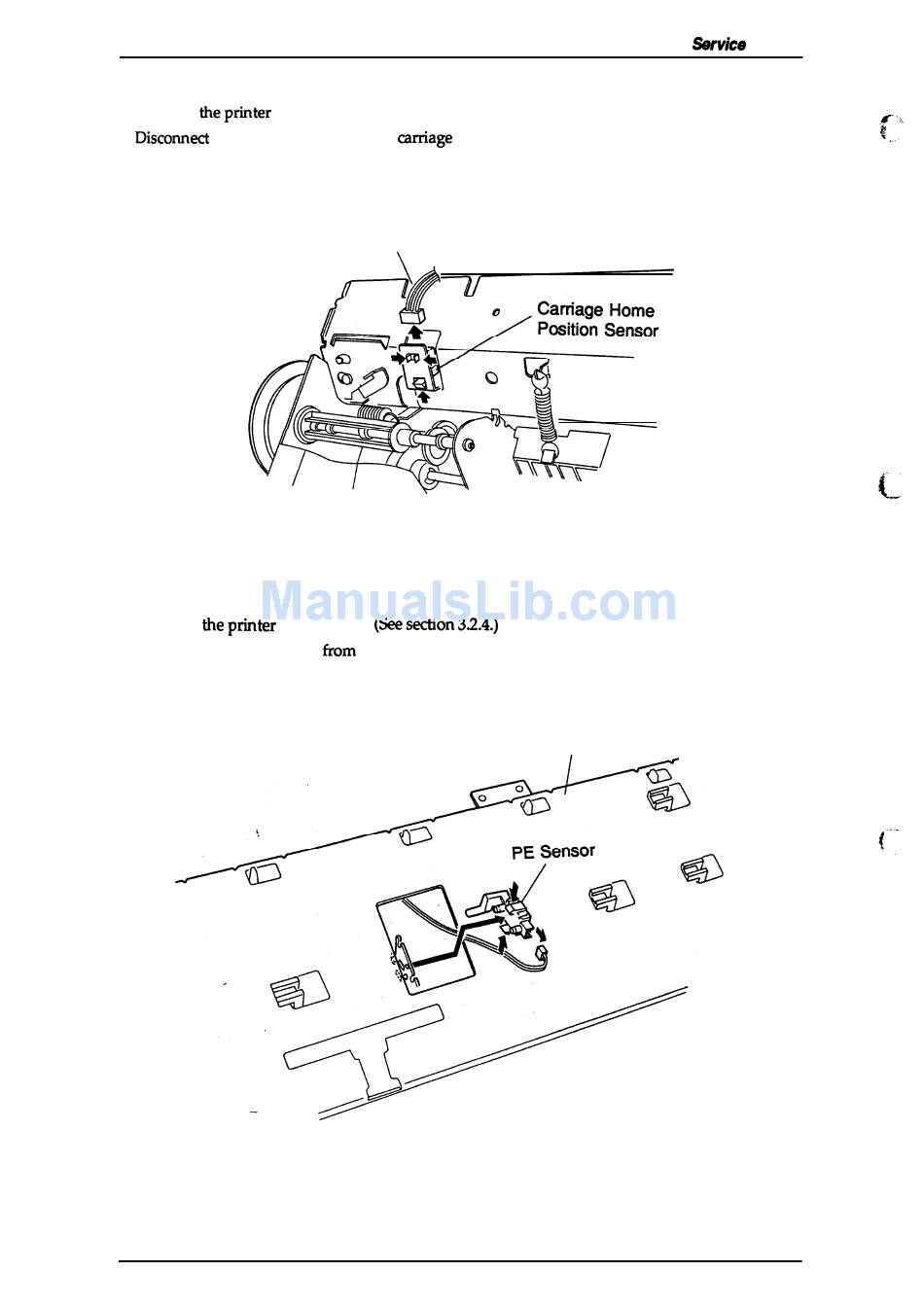

Figure 3-16. Carriage Home Position Sensor Removal

3.2.5.8 PE Sensor Removal

1. Remove theprinter mechanism. (Seesection32.4.)
2. Disconnect the connector horn the PE sensor.
3. Rotate the printer mechanism upside down; use tweezers to release the 2 hooks securing the
PE sensor to the paper feed roller assembly; then remove the PE sensor.
3-14
Sensor Cable
Figure 3-17. PE Sensor Removal
Stylus Color service Manual
Bottom Frame
I
Rev. A
