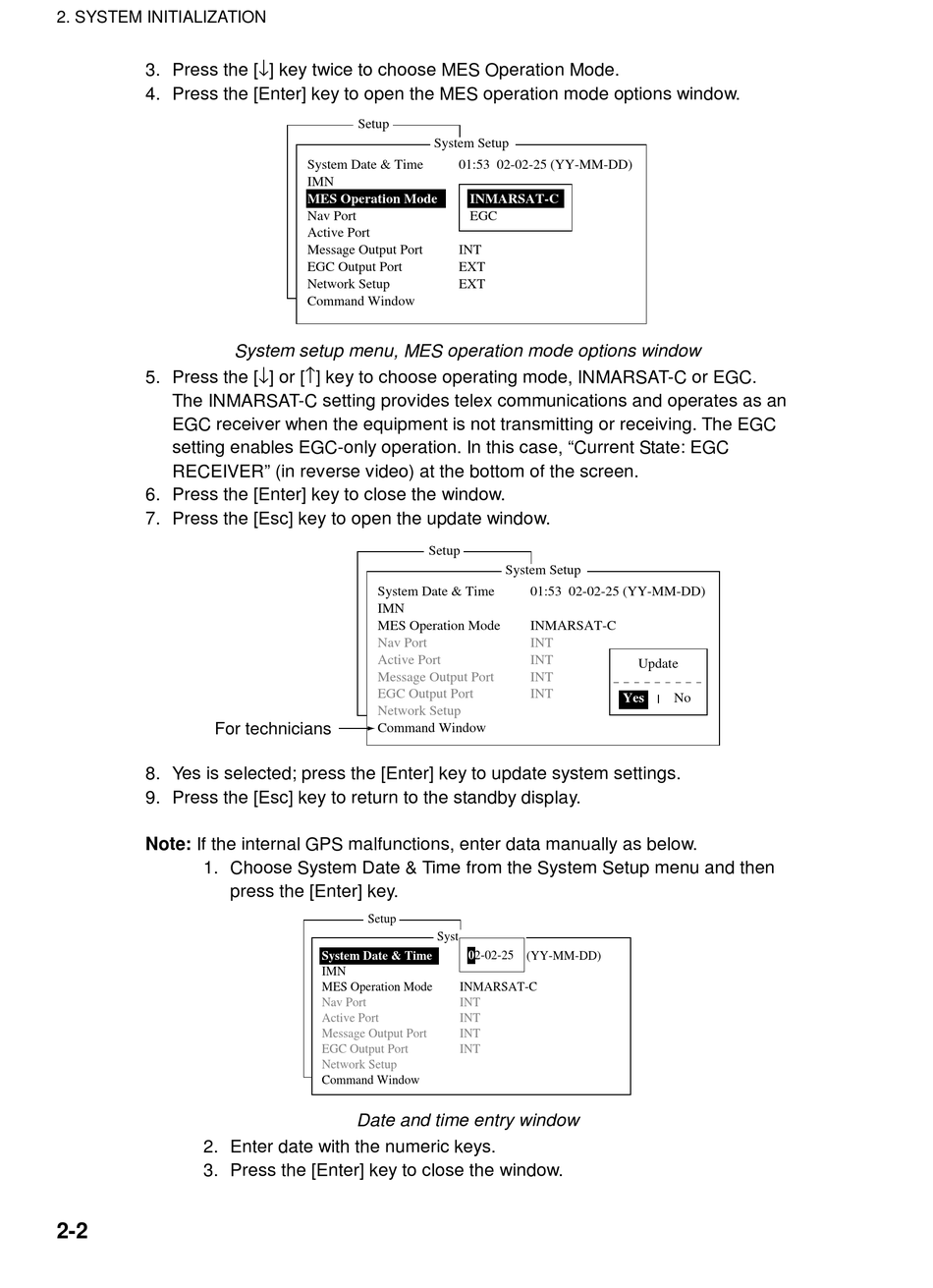

Furuno FELCOM 16 Operator's Manual page 36

2. SYSTEM INITIALIZATION
3. Press the [↓] key twice to choose MES Operation Mode.
4. Press the [Enter] key to open the MES operation mode options window.
5. Press the [↓] or [↑] key to choose operating mode, INMARSAT-C or EGC.
The INMARSAT-C setting provides telex communications and operates as an
EGC receiver when the equipment is not transmitting or receiving. The EGC
setting enables EGC-only operation. In this case, "Current State: EGC
RECEIVER" (in reverse video) at the bottom of the screen.
6. Press the [Enter] key to close the window.
7. Press the [Esc] key to open the update window.
For technicians
8. Yes is selected; press the [Enter] key to update system settings.
9. Press the [Esc] key to return to the standby display.
Note: If the internal GPS malfunctions, enter data manually as below.
1. Choose System Date & Time from the System Setup menu and then
2. Enter date with the numeric keys.
3. Press the [Enter] key to close the window.
2-2
Setup
System Date & Time
IMN
MES Operation Mode
Nav Port
Active Port
Message Output Port
EGC Output Port
9. Configuration
Network Setup
Command Window
System setup menu, MES operation mode options window
System Date & Time
IMN
MES Operation Mode
Nav Port
Active Port
Message Output Port
EGC Output Port
9. Configuration
Network Setup
Command Window
press the [Enter] key.
Setup
System Date & Time
IMN
MES Operation Mode
Nav Port
Active Port
Message Output Port
EGC Output Port
9. Configuration
Network Setup
Command Window
Date and time entry window
System Setup
01:53 02-02-25 (YY-MM-DD)
IOR INMARSAT-C
INMARSAT-C EGC
OFF
INT
EXT
EXT
Setup
System Setup
01:53 02-02-25 (YY-MM-DD)
INMARSAT-C
INT
INT
INT
INT
System Setup
02-02-25
01:53 97-08 (YY-MM-DD)
INMARSAT-C
INT
INT
INT
INT
Update
Yes No
