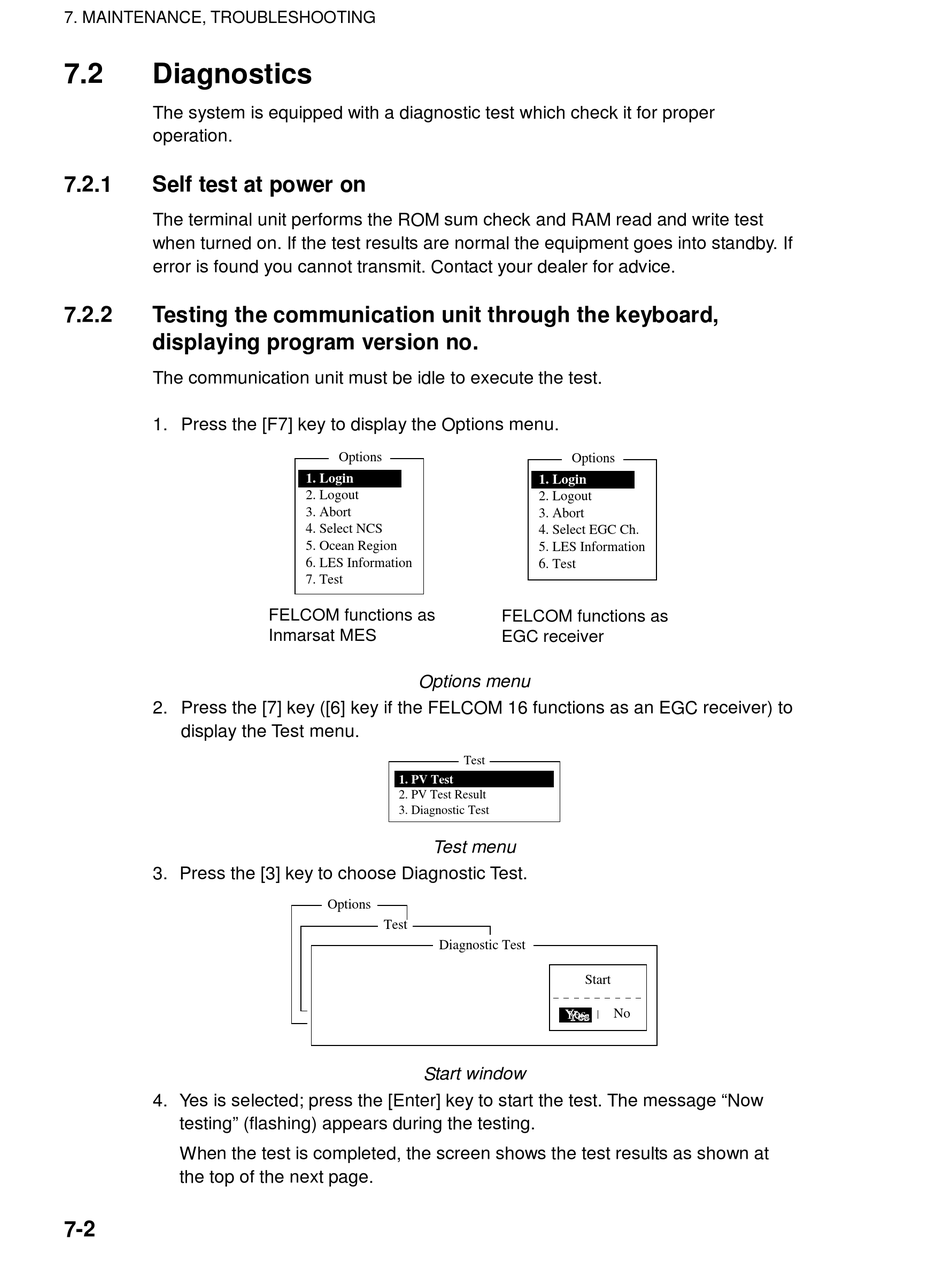

7. MAINTENANCE, TROUBLESHOOTING
7.2

Diagnostics

The system is equipped with a diagnostic test which check it for proper
operation.
7.2.1

Self test at power on

The terminal unit performs the ROM sum check and RAM read and write test
when turned on. If the test results are normal the equipment goes into standby. If
error is found you cannot transmit. Contact your dealer for advice.
7.2.2 Testing the communication unit through the keyboard,
displaying program version no.
The communication unit must be idle to execute the test.
1. Press the [F7] key to display the Options menu.
2. Press the [7] key ([6] key if the FELCOM 16 functions as an EGC receiver) to
display the Test menu.
3. Press the [3] key to choose Diagnostic Test.
4. Yes is selected; press the [Enter] key to start the test. The message "Now
testing" (flashing) appears during the testing.
When the test is completed, the screen shows the test results as shown at
the top of the next page.
7-2
Options
1. Login
2. Logout
3. Abort
4. Select NCS
5. Ocean Region
6. LES Information
7. Test
FELCOM functions as
Inmarsat MES
Options menu
1. PV Test
2. PV Test Result
3. Diagnostic Test
Options
1. Login Test
2. Logout
1. PV Test
3. Abort
2. PV Test Result
4. Select NCS
3. Self Test
5. Ocean Region
4. Distress Alarm Button Test
6. Test
Start window
Options
1. Login
2. Logout
3. Abort
4. Select EGC Ch.
5. LES Information
6. Test
FELCOM functions as
EGC receiver
Test
Test menu
Diagnostic Test
Start
Yes
Yes
No
