MGBIC-02 Specifications (1000BASE-T)

Table A-12 MGBIC-02 Specifications
Item
Supported Cable:
Type
Maximum Length
Connector
Data Rate
TX Output impedance
RX Input impedance

Console Port Pinout Assignments

The Console port is a DB9 serial communications port for local access to Local
Management. Refer to Figure

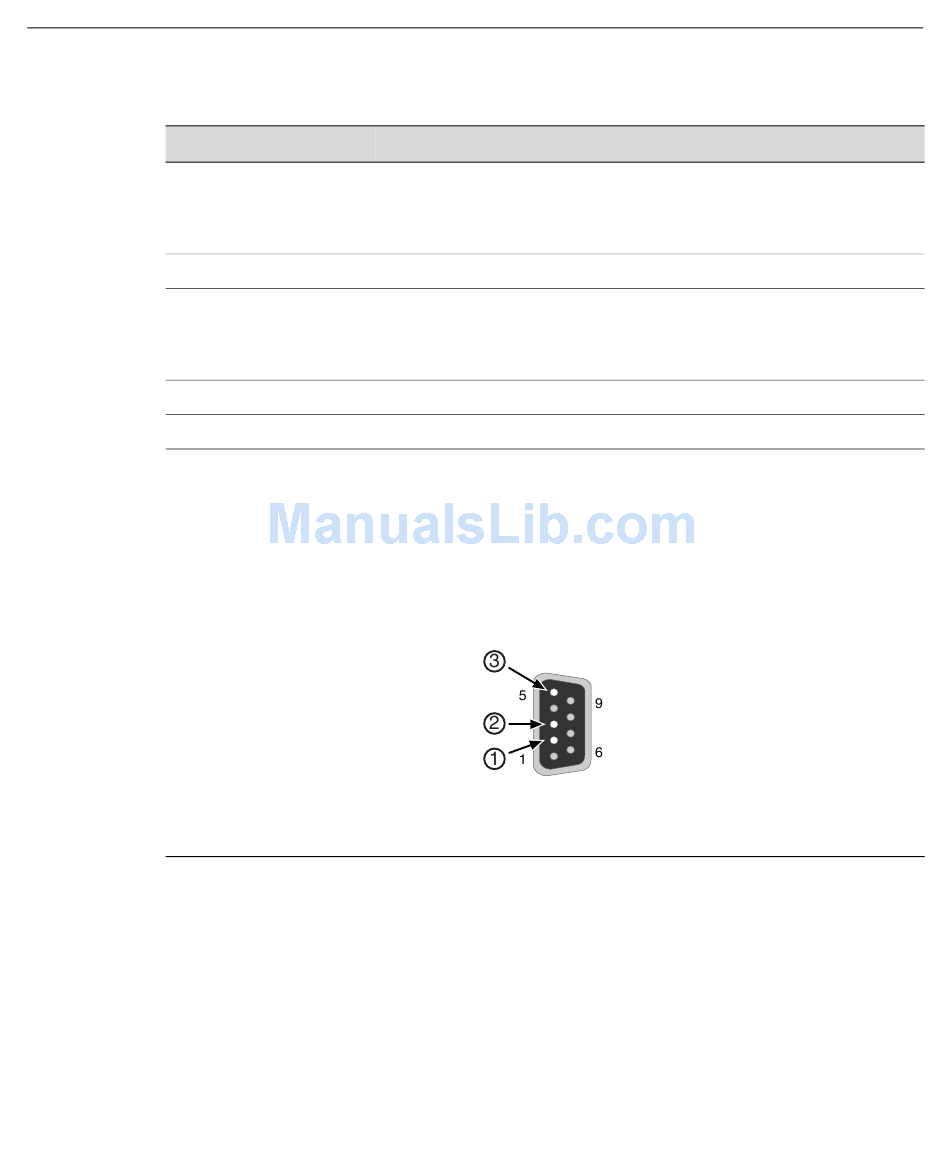

Figure A-1
1 Pin 2, Received Data (input)
2 Pin 3, Transmitted Data (output)
Specification
Copper, Category 5 UTP
Up to 100 meters
RJ45
1 Gbps, IEEE 802.3:2000 compatible
1000BASE-T operation only
Automatic crossover detection
100 ohms, typical at all frequencies between 1 MHz and 125 MHz
100 ohms, typical at all frequencies between 1 MHz and 125 MHz
A‐1 for the Console port pin assignments.

Console Port Pinout Assignments

Console Port Pinout Assignments
3 Pin 5, Signal Ground
All other pins not connected.
SecureStack A2 PoE Installation Guide A-7
