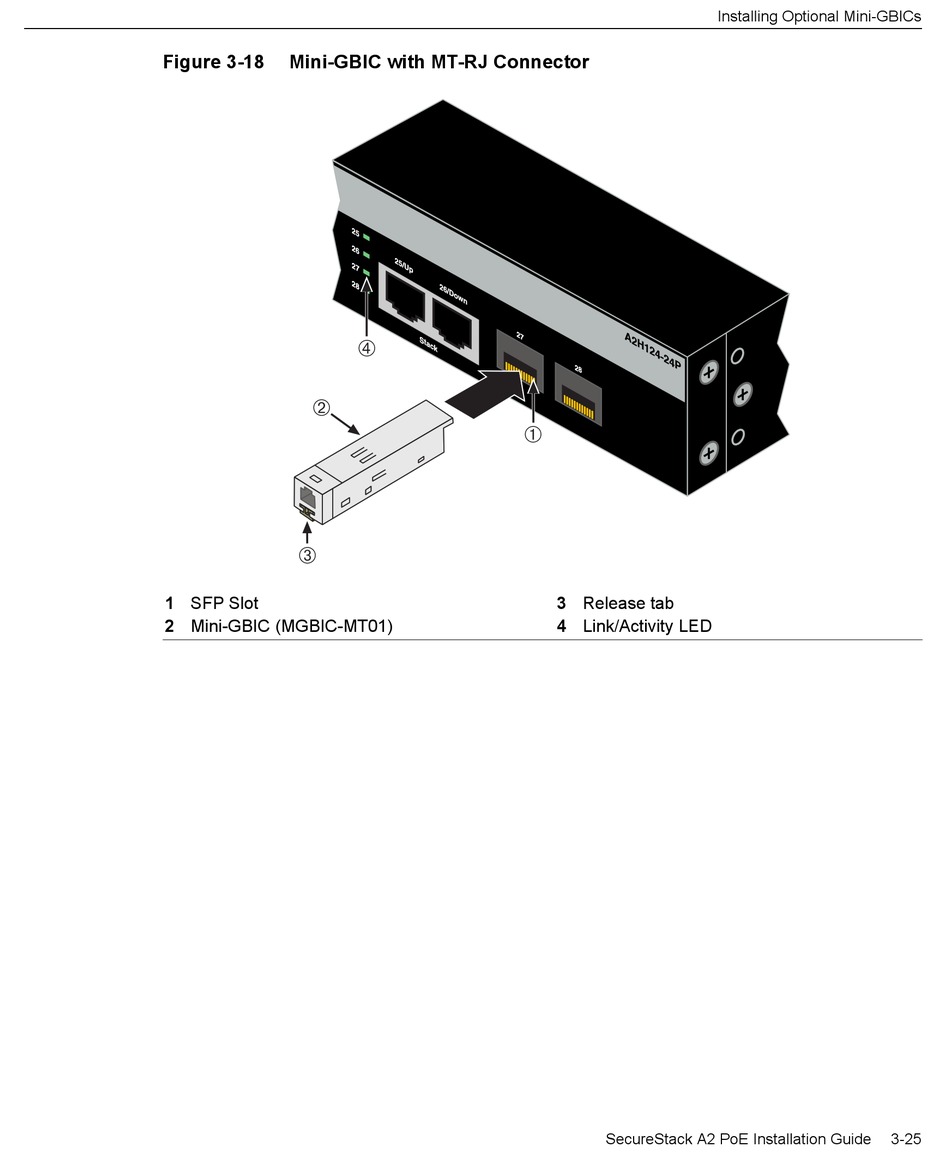

Figure 3-18

Mini-GBIC with MT-RJ Connector

Á
Â
1 SFP Slot
2 Mini-GBIC (MGBIC-MT01)
Ã
À
Installing Optional Mini-GBICs
3 Release tab
4 Link/Activity LED
SecureStack A2 PoE Installation Guide
3-25
