Guidelines for Flat Surface Installation

Locate the switch within 152 cm (5 ft) of its power source and on a surface as shown in
Figure 3‐2. If an optional redundant power system is going to be installed and connected
to the 14‐pin Redundant Power Supply input connector on the rear of the switch, refer to
the installation guide shipped with the redundant power system.
Caution: To ensure proper ventilation and prevent overheating, leave a minimum
clearance space of 5.1 cm (2.0 in.) at the left, right, and rear of the switch.
Do not connect the switch to the AC power source until instructed to do so later in the
installation process.
Precaución: Para asegurar una buena ventilación y evitar que el sistema se
sobrecaliente, deje un espacio mínimo de 5.1 cm (2 pulgadas) con respecto a los lados y
a la parte posterior del aparato.
No conecte el dipositivo a la fuente primaria hasta que no se le indique.
If you are installing several switches in a stack, proceed to "Connecting Stacking Cables"
on page 3‐7. If the switch is being installed as a standalone switch, proceed to "Connecting
AC and PoE Power" on page 3‐12 for power connection instructions.

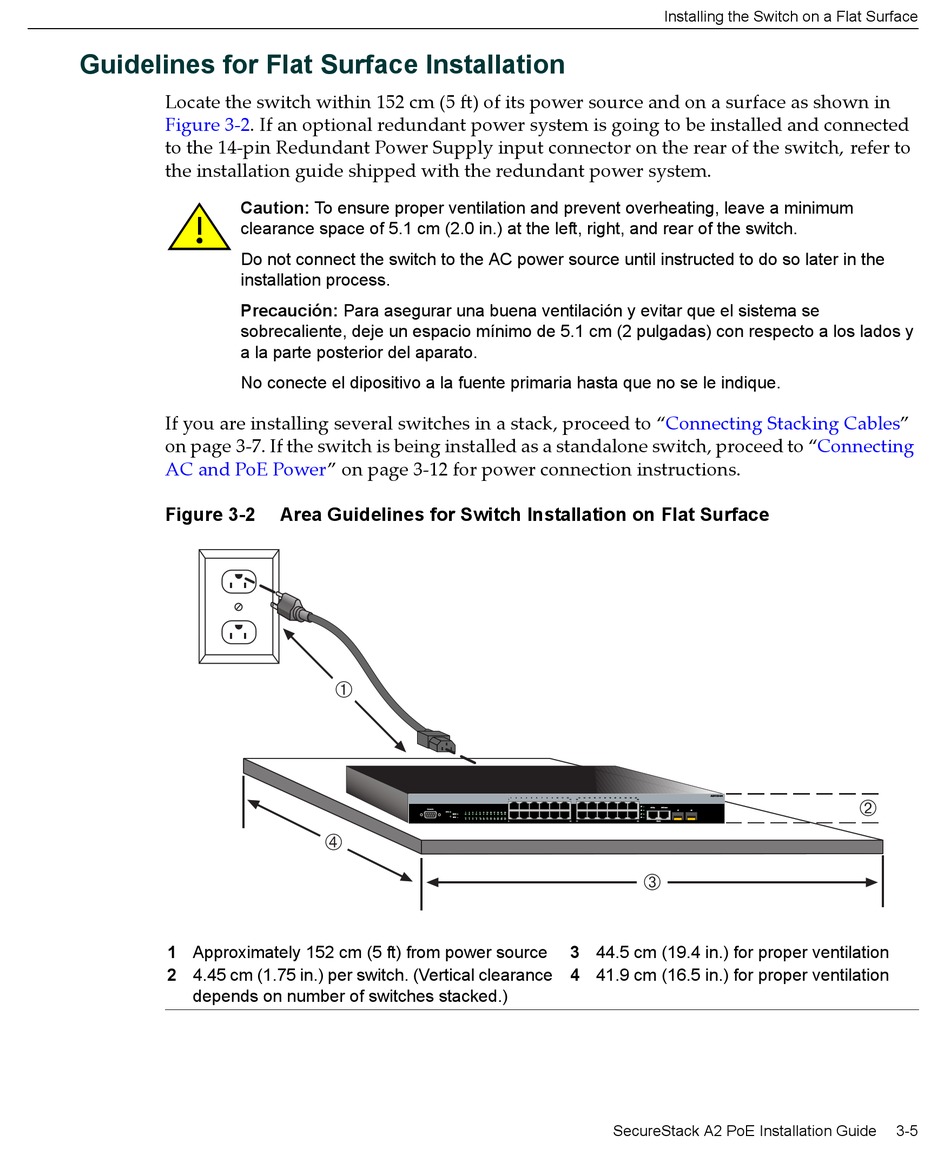

Figure 3-2
1 Approximately 152 cm (5 ft) from power source
2 4.45 cm (1.75 in.) per switch. (Vertical clearance
depends on number of switches stacked.)

Area Guidelines for Switch Installation on Flat Surface

À
Ã
Installing the Switch on a Flat Surface
Â
3 44.5 cm (19.4 in.) for proper ventilation
4 41.9 cm (16.5 in.) for proper ventilation
