Connecting Stacking Cables

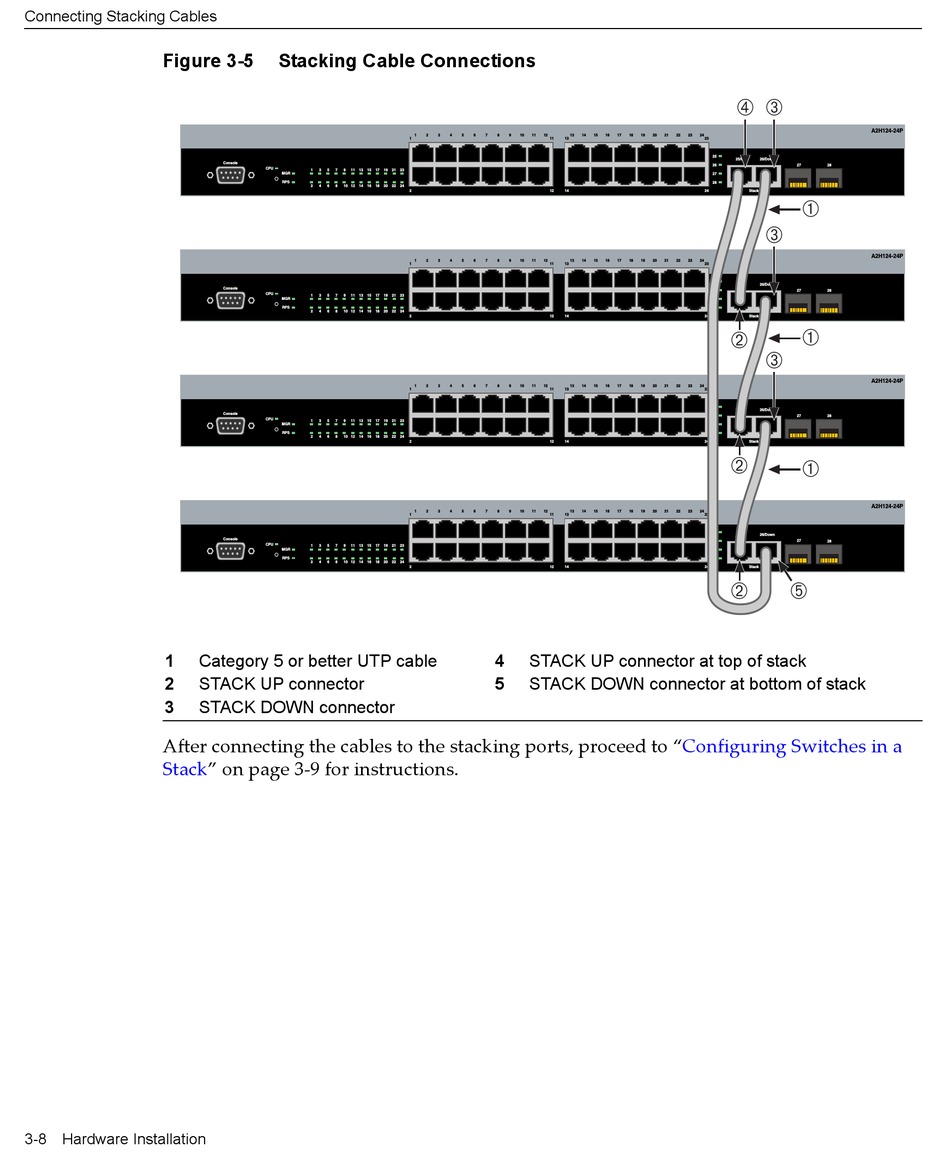

Figure 3-5
1 Category 5 or better UTP cable
2 STACK UP connector
3 STACK DOWN connector
After connecting the cables to the stacking ports, proceed to "Configuring Switches in a
Stack" on page 3‐9 for instructions.
3-8 Hardware Installation

Stacking Cable Connections

4 STACK UP connector at top of stack
5 STACK DOWN connector at bottom of stack
à Â
À
Â
À
Á
Â
Á
À
Á Ä
