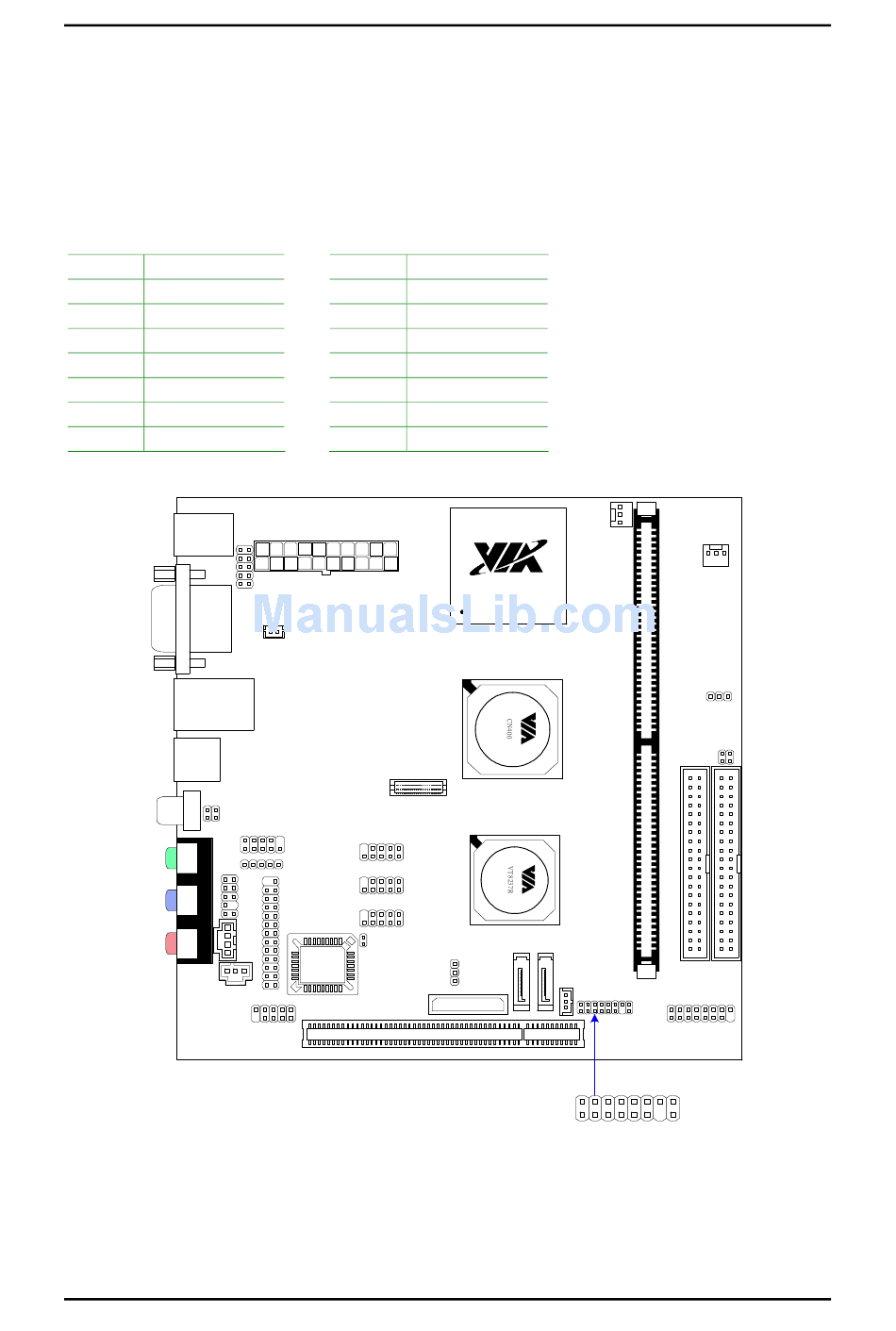

Video Interface Port Pin Connector: VIP_2
This pin header allows you to use the capture function inside the North
Bridge.
Pin
Signal
1
GND
3
CAPD7
5
CAPD6
7
GFPHS
9
CAPD1
11
GFPVS
13
SMBDT
15
SMBCK
Pin
Signal
2
CAPD0
4
CAPD4
6
CAPD5
8
CAPD2
10
CAPD3
12
CAPCLK
14
KEY
16
GND
C3 Processor
TM
35
Installation
1
VIP_2
