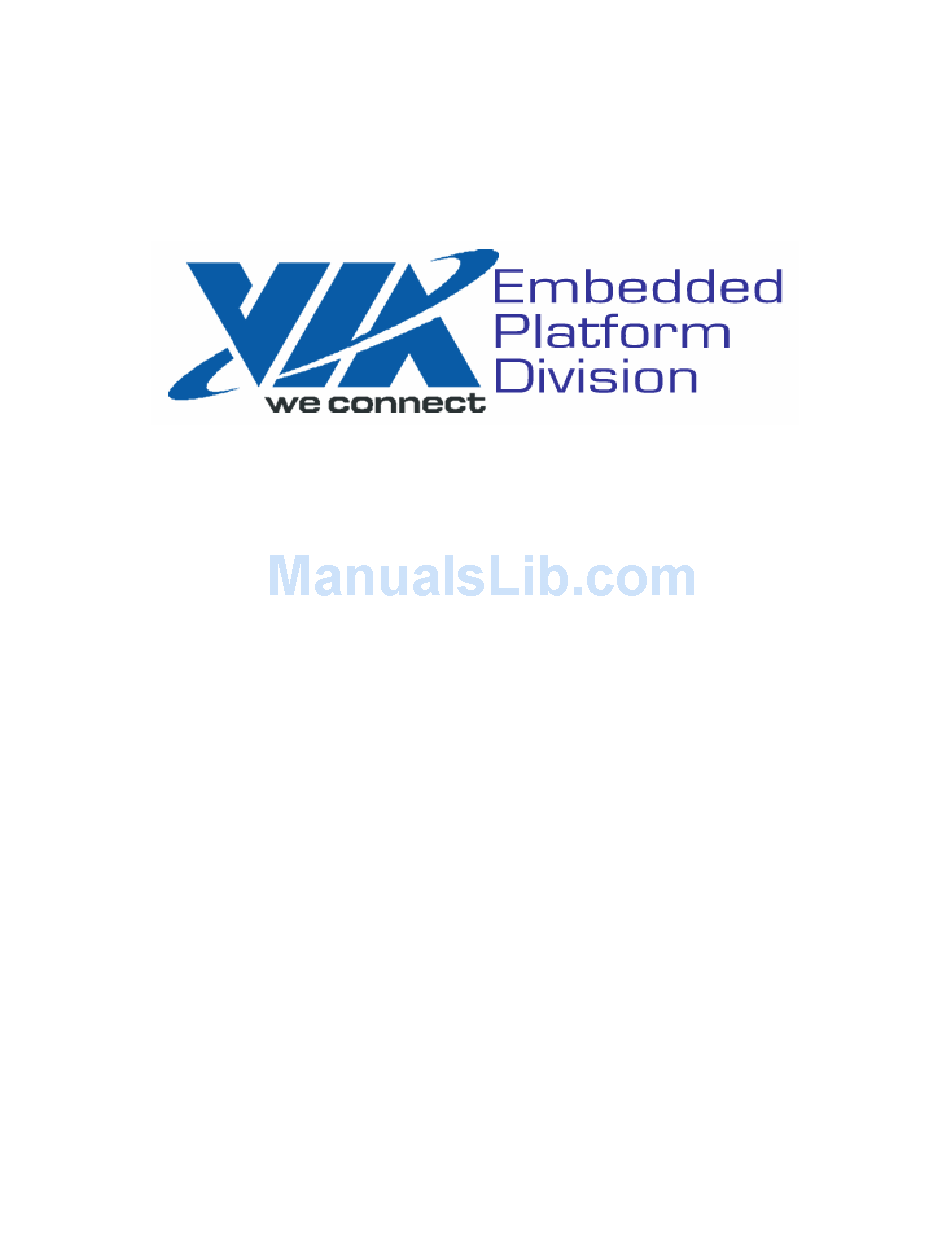

- Page 1 Operating Guide EPIA ML-Series Mini-ITX Mainboard January 04, 2005 Version 1.3...
-
Page 2: Table Of Contents
EPIA ML-Series Operating Guide Table of Contents Table of Contents..................................... i VIA EPIA ML-Series Overview ..............................1 VIA EPIA ML-Series Layout ................................ 2 VIA EPIA ML-Series Specifications ............................. 3 VIA EPIA ML Processor SKUs..............................4 VIA CLE266 Chipset Overview..............................5 VIA EPIA ML-Series I/O Back Panel Layout.......................... -
Page 3: Via Epia Ml-Series Overview
EPIA ML-Series Operating Guide VIA EPIA ML-Series Overview The VIA EPIA ML-Series Mini-ITX Mainboard is an ultra compact native x86 platform optimized for today's demanding embedded and productivity applications. The mainboard is based on the VIA CLE266 chipset featuring an embedded hardware MPEG-2 accelerator and integrated VIA UniChrome™ 2D/3D graphics for rich digital media performance. -
Page 4: Via Epia Ml-Series Layout
EPIA ML-Series Operating Guide VIA EPIA ML-Series Layout January 04, 2005 - 2 - Version 1.3... -
Page 5: Via Epia Ml-Series Specifications
EPIA ML-Series Operating Guide VIA EPIA ML-Series Specifications VIA EPIA ML Specifications Processor - VIA C3™/ VIA Eden™ EBGA processor - VIA CLE266 North Bridge Chipset - VIA VT8235 South Bridge - 1 DDR266 DIMM socket System Memory - Up to 1GB memory size - Integrated VIA UniChrome AGP Graphics Expansion Slots - 1 PCI... -
Page 6: Via Epia Ml Processor Skus
EPIA ML-Series Operating Guide VIA EPIA ML Processor SKUs The VIA EPIA ML-Series is available in two different speed grades. The VIA EPIA ML5000EA utilizes VIA’s ultra low power VIA Eden™ ESP processor while the VIA EPIA ML8000A utilizes the robust VIA C3™... -
Page 7: Via Cle266 Chipset Overview
EPIA ML-Series Operating Guide VIA CLE266 Chipset Overview The VIA CLE266 Chipset is designed to enable high quality digital video streaming and DVD playback in a new generation of fanless, small form factor PCs and IA devices. The CLE266 features the embedded VIA UniChrome™... -
Page 8: Via Epia Ml-Series I/O Back Panel Layout
EPIA ML-Series Operating Guide VIA EPIA ML-Series I/O Back Panel Layout The EPIA ML’s ultra compact 17cm x 17cm, integrated design supports all the standard legacy x86 connectivity options as well as VGA port, RJ45 LAN port, USB 2.0 ports, Parallel port, COM port, and VIA 6-Channel C’97 audio. -
Page 9: Via Epia Ml-Series Layout Diagram & Mounting Holes
EPIA ML-Series Operating Guide VIA EPIA ML-Series Layout Diagram & Mounting Holes January 04, 2005 - 7 - Version 1.3... -
Page 10: Via Epia Ml-Series Layout Diagram & Height Distribution
EPIA ML-Series Operating Guide VIA EPIA ML-Series Layout Diagram & Height Distribution January 04, 2005 - 8 - Version 1.3... -
Page 11: Noise Level Data
EPIA ML-Series Operating Guide Noise Level Data VIA and the EPIA series have been at the forefront of the quiet computing initiative. The VIA EPIA ML- Series has been designed to be totally non-obtrusive with noise levels equivalent to a person whispering. With noise levels ranging from the totally silent VIA EPIA ML5000EA to 25dBA for the VIA EPIA ML8000A, a new wave of system design innovation and exciting opportunities are being created in an almost limitless number of emerging new market segments - ranging from fanless thin clients, flat panel small... -
Page 12: Power Consumption
EPIA ML-Series Operating Guide Power Consumption Power consumption tests were carried out comparing the VIA EPIA ML8000A (running the 800MHz VIA C3™ processor) and the VIA EPIA ML5000EA (running with the 533MHz). The following tables are a comprehensive breakdown of the EPIA platform’s voltage, amp and wattage values while running common system applications. -
Page 13: Via Epia Ml 5000Ea
EPIA ML-Series Operating Guide E. Run C.C. Winstone 2001 Measured Voltage Measured Amp. Watts Main Board +3.3V 3.234 2.176 7.037 Main Board +5V 4.855 3.600 17.478 Main Board 5VSB 4.866 0.051 0.248 Main Board +12V 11.927 0.182 0.210 24.973 Main Board Power Consumption VIA EPIA ML 5000EA A. - Page 14 EPIA ML-Series Operating Guide E. Run C.C. Winstone 2001 Measured Voltage Measured Amp. Watts Main Board +3.3V 3.228 2.184 7.050 Main Board +5V 4.957 1.621 8.035 Main Board 5VSB 4.910 0.079 0.388 Main Board +12V 11.936 0.123 0.210 15.683 Main Board Power Consumption January 04, 2005 - 12 - Version 1.3...
-
Page 15: Power Specifications
EPIA ML-Series Operating Guide Power Specifications The EPIA ML utilizes an industry standard 20-pin ATX main connector to the power supply. Due to the EPIA ML platform’s ultra low power requirements a 90 – 120 Watt ATX power supply is ample for even the heaviest of multimedia system applications. -
Page 16: Via Epia Ml-Series Microsoft And Linux Driver Support
EPIA ML-Series Operating Guide VIA EPIA ML-Series Microsoft and Linux Driver Support Microsoft Driver Support VIA EPIA ML series offers full support for the complete range of Microsoft operating systems. For standard operating systems, Windows 98/Me/2000/XP latest drivers downloads can be found in the VEPD website at www.viaembedded.com. -
Page 17: Contact
EPIA ML-Series Operating Guide Contact For more information on the VIA EPIA ML-Series Mini ITX Mainboard contact your sales representative or visit our website at www.viaembedded.com Taiwan 440 Mission Court, Suite 220 8F, 533, Chung Cheng Road Fremont, CA 94539 Hsin Tien, Taipei Tel: (510) 683 3300 Tel: (02) 2218 5452...
