Chapter 2

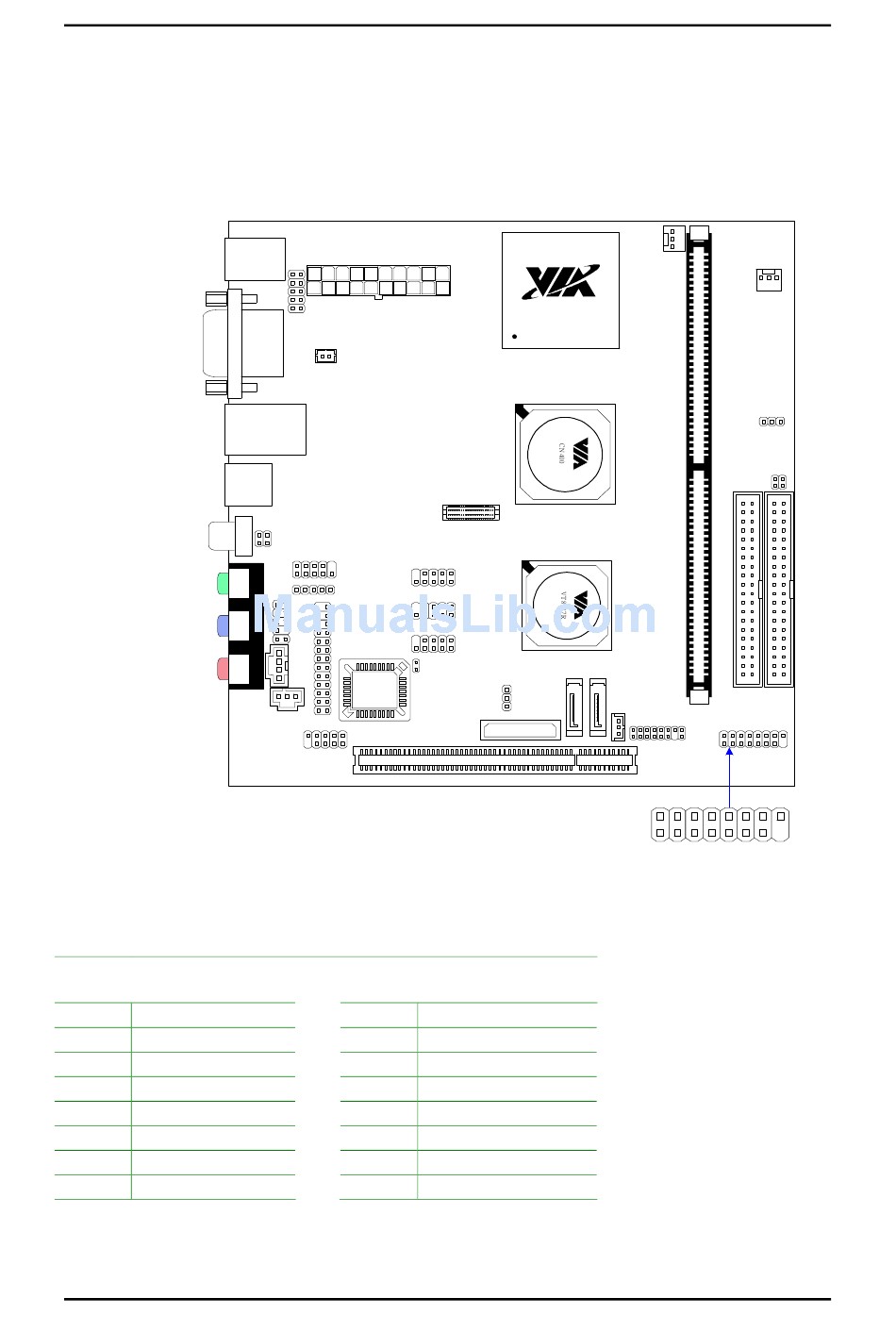

Case Connector: F_PANEL
The F_PANEL pin header allows you to connect the power switch, reset
switch, power LED, HDD LED and the case speaker.
Case Connector: F_PANEL
Pin
Signal
1
+5VDUAL
3
+5VDUAL
5
-PLED
7
+5V
9
NC
11
NC
13
SPEAK
15
Key
Pin
Signal
2
+5V
4
HD_LED
6
PW_BN
8
GND
10
RST_SW
12
GND
14
+5V
16
-SLEEP_LED
26
C3 Processor
TM
1
F_PANEL
