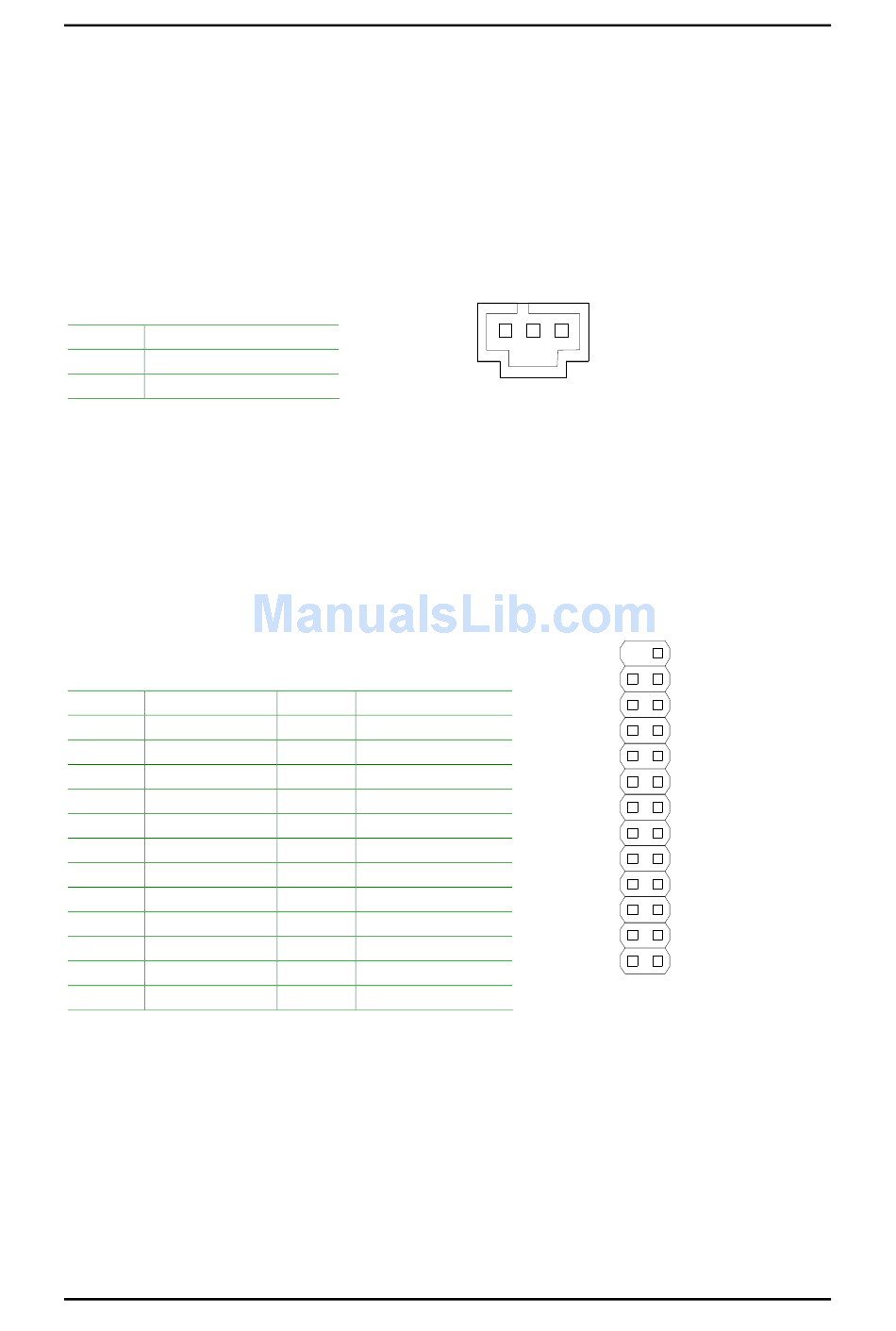

Digital Audio Connector: S/PDIF
This connector is for connecting the Sony Philips Digital Interface (S/PDIF)
bracket. The S/PDIF output provides digital audio to external speakers or
compressed AC3 data to an external Dolby Digital Decoder. The feature is
available only with stereo system that has digital output function.
Pin Signal
1 +5V
2 S/PDIF
3 GND
Parallel Port Connector: LPT
The mainboard provides a 25-pin header to be able to connect a 25-pin
female external connector for LPT (parallel port). A parallel port is a
standard printer port that supports Enhanced Parallel Port (EPP) and
Extended Capabilities Parallel Port (ECP) modes.
Pin Signal
1 STROBE
2 DATA0
3 DATA1
4 DATA2
5 DATA3
6 DATA4
7 DATA5
8 DATA6
9 DATA7
10 ACK#
11 BUSY
12 PE
13 SELECT
1
Pin Signal
14 AUTO FEED#
15 ERR#
16 INIT#
17 SLIN#
18 GND
19 GND
20 GND
21 GND
22 GND
23 GND
24 GND
25 GND
29
SPDIF
LPT
Installation
