  • Page 1 Operating Guide EPIA-M850 Mainboard...

  • Page 2: Table Of Contents

    VIA EPIA-M850 layout......................................2 VIA EPIA-M850 specifications..................................3 VIA EPIA-M850 processor SKUs..................................4 VIA VX900 chipset overview..................................... 5 VIA EPIA-M850 mounting hole and board dimensions ........................6 VIA EPIA-M850 height distribution ................................7 VIA EPIA-M850 side profile....................................8 Power consumption......................................9 VIA EPIA-M850 1.6 GHz....................................

  • Page 3: Via Epia-M850 Overview

    VIA Padlock Security Engine, VIA CoolStream™ Architecture, VIA StepAhead™ Technology Suite, and VIA TwinTurbo™ technology. The VIA EPIA-M850 includes two 1066/800 MHz DDR3 DIMM slots that support a combined total of 8 GB. The VIA EPIA-M850 provides support for high fidelity audio with its included VIA VT1708S High Definition Audio codec.

  • Page 4: Via Epia-M850 Layout

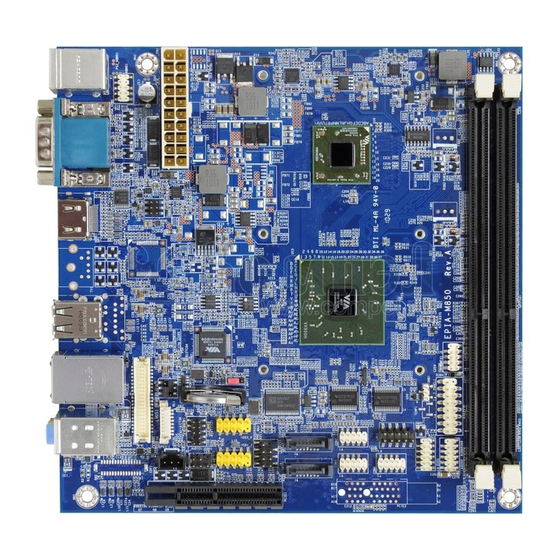

    EPIA-M850 Operating Guide VIA EPIA-M850 layout Figure 1: EPIA-M850 layout January 20, 2011 - 2 - Version 1.02...

  • Page 5: Via Epia-M850 Specifications

    EPIA-M850 Operating Guide VIA EPIA-M850 specifications Model Name EPIA-M850-16L EPIA-M850-12EL Processor - VIA 1.6 GHz Nano processor - VIA 1.2GHz Nano processor Thermal Solution - Heatsink with fan - Fanless heatsink Chipset - VIA VX900 Unified Digital Media IGP Chipset...

  • Page 6: Via Epia-M850 Processor Skus

    EPIA-M850 Operating Guide VIA EPIA-M850 processor SKUs The VIA EPIA-M850 is available in two speed grades as follows: • VIA 1.6 GHz Nano processor (EPIA-M850-16L) • VIA 1.2 GHz Nano processor (EPIA-M850-12EL) January 20, 2011 - 4 - Version 1.02...

  • Page 7: Via Vx900 Chipset Overview

    PCs and IA devices. The VIA VX900 features VIA Chrome9™ HC3 with 2D/3D graphics and video acceleration, DDR3 1066/800 MHz support, motion compensation and dual display support to ensure a rich overall entertainment experience. Figure 2: VX900 as implemented in the EPIA-M850 January 20, 2011 - 5 -...

  • Page 8: Via Epia-M850 Mounting Hole And Board Dimensions

    EPIA-M850 Operating Guide VIA EPIA-M850 mounting hole and board dimensions Figure 3: EPIA-M850 mounting hole and board dimensions January 20, 2011 - 6 - Version 1.02...

  • Page 9: Via Epia-M850 Height Distribution

    EPIA-M850 Operating Guide VIA EPIA-M850 height distribution Figure 4: EPIA-M850 component placement and height distribution January 20, 2011 - 7 - Version 1.02...

  • Page 10: Via Epia-M850 Side Profile

    EPIA-M850 Operating Guide VIA EPIA-M850 side profile Figure 5: EPIA-M850 back panel ports January 20, 2011 - 8 - Version 1.02...

  • Page 11: Power Consumption

    EPIA-M850 Operating Guide Power consumption Power consumption tests were performed on the VIA EPIA-M850 for both processor options. The following tables are a comprehensive breakdown of the voltage, amp and wattage values while running common system applications. VIA EPIA-M850 1.6 GH A.

  • Page 12: Power Dvd 8.0 (Wmv9 1920 X 1080, 40Mb Movie)

    EPIA-M850 Operating Guide E. Power DVD 8.0 (WMV9 1920 x 1080, 40MB movie) Measured Voltage Measure Amp Watts Main Board +3.3V 3.26 2.608 Main Board +5V 4.95 22.275 Main Board 5VSB 5.04 0.000 Main Board +12V 12.37 1.237 Total Power Consumption 26.120...

  • Page 13: Via Epia-M850 1.2 Ghz

    EPIA-M850 Operating Guide VIA EPIA-M850 1.2 GH A. 100% CPU usage Measured Voltage Measure Amp Watts Main Board +3.3V 3.26 2.608 Main Board +5V 4.93 18.734 Main Board 5VSB 5.04 0.000 Main Board +12V 12.48 0.000 Total Power Consumption 21.342 B.

  • Page 14: Power Dvd 8.0 (Wmv9 1920 X 1080, 40Mb Movie)

    EPIA-M850 Operating Guide E. Power DVD 8.0 (WMV9 1920 x 1080, 40MB movie) Measured Voltage Measure Amp Watts Main Board +3.3V 3.26 2.608 Main Board +5V 4.94 16.796 Main Board 5VSB 5.04 0.000 Main Board +12V 12.48 0.000 Total Power Consumption 19.404...

  • Page 15: Power Specifications

    EPIA-M850 Operating Guide Power Specifications The VIA EPIA-M850 mainboard is available with an industry standard 20-pin ATX connector for connecting to the power supply. Signal Signal +3.3V +3.3V +3.3V -12V PS_ON PW_OK +5V_SB +12V January 20, 2011 - 13 -...

  • Page 16: Via Epia-M850 Microsoft And Linux Driver Support

    RIVER UPPORT The VIA EPIA-M850 mainboard is compatible with Microsoft operating systems. The latest Windows 2000 and Windows XP drivers can be downloaded from the VEPD website at www.viaembedded.com. For embedded operating systems (Windows CE and Windows XP Embedded), the related drivers can be found in the VIA Embedded website at www.viaembedded.com.

  • Page 17: Contact Information

    EPIA-M850 Operating Guide Contact information For more information on the VIA EPIA-M850 Mini-ITX mainboard contact your sales representative or visit our website at www.viaembedded.com Taiwan Headquarters Europe 1F, 531 Zhong-Zheng Road 940 Mission Court In den Dauen 6 Xindian, Taipei, 23148...
