Introduction
1
Figure 1 - 3

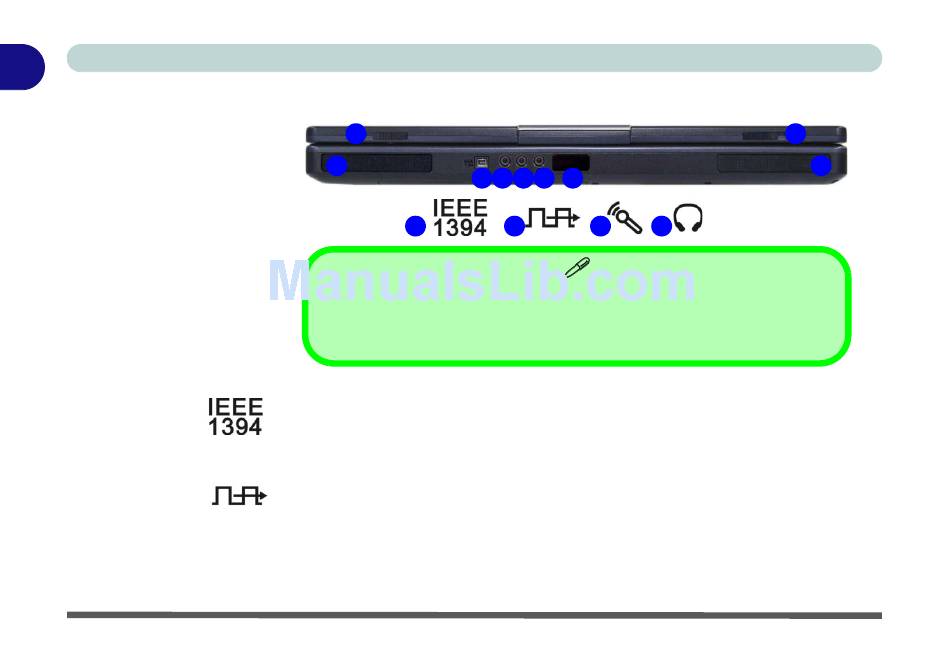

Front View

1. LCD Latches
2. Mini-IEEE 1394
Port
3.

S/PDIF Out Port

4. Microphone-In
Jack
5. Headphone-Out
Jack
6. Infrared
Transceiver
7. Built-In Speakers
1 - 10 Front View
Front View
1
7
2
The Mini-IEEE 1394 port only supports SELF POWERED IEEE 1394 devices.

Mini-IEEE 1394 Port

This allows high-speed connection to various peripheral devices, e.g. external
disk drives and digital cameras (see note above).
S/PDIF Out Port
This S/PDIF (Sony/Philips Digital Interface Format) Out Port allows you to
connect your DVD-capable PC to a Dolby AC-3 compatible receiver for "5.1"
or 'dts' surround sound.
2 3 4 5 6
3 4
Mini-IEEE 1394
1
7
5
