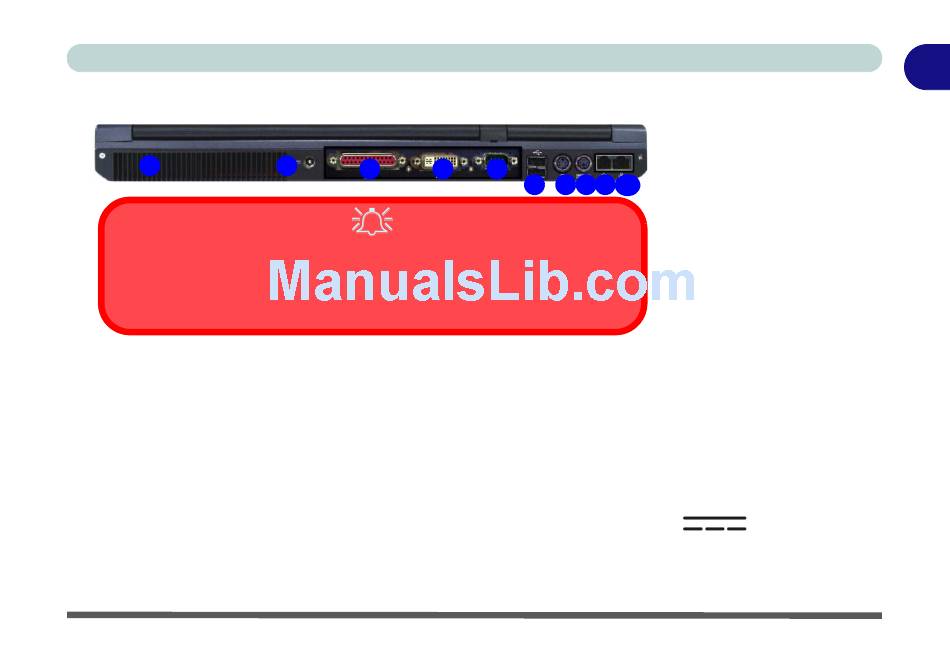

Rear View
1
To prevent your computer from overheating make sure nothing blocks the vent/fan
intakes while the computer is in use.
Vent/Fan Intake
This enables airflow to prevent the notebook from overheating.
DC-In Jack
Plug the supplied AC adapter into this jack to power your notebook.
2
3
4
Overheating
5
6
7 8 9 10
Introduction
Figure 1 - 7
Rear View
1.
Vent/Fan Intake
2.
DC-In Jack
3.
Printer/Parallel
Port
4.
DVI-Out Monitor
Port
5.
Serial/Com Port
6.
2 * USB Ports
7.
S-Video-Out Port
8.
PS/2 Type Port
9.
RJ-11 Phone Jack
10. RJ-45 LAN Jack
Rear View 1 - 17
