NVIDIA Video Driver Controls

Sound Blaster
Audio & HDMI
Connection
Note that Sound Blaster
audio will be disabled
when you are connect-
ing to an external dis-
play through an HDMI
connection.
Table C - 1
Display Modes
C
C - 6 Display Devices

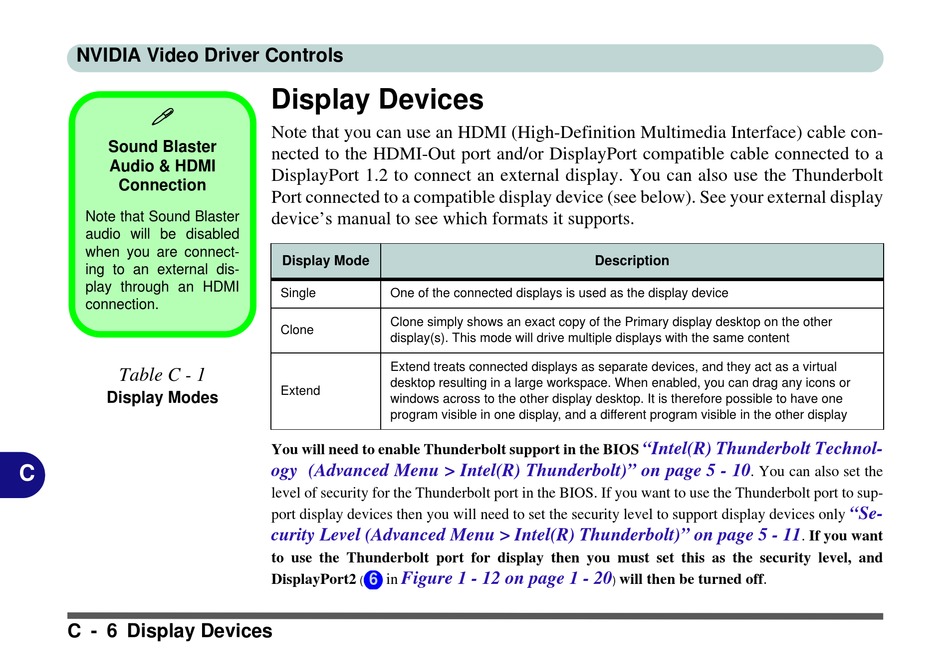

Display Devices

Note that you can use an HDMI (High-Definition Multimedia Interface) cable con-
nected to the HDMI-Out port and/or DisplayPort compatible cable connected to a
DisplayPort 1.2 to connect an external display. You can also use the Thunderbolt
Port connected to a compatible display device (see below). See your external display
device's manual to see which formats it supports.
Display Mode
Single One of the connected displays is used as the display device
Clone simply shows an exact copy of the Primary display desktop on the other
Clone
display(s). This mode will drive multiple displays with the same content
Extend treats connected displays as separate devices, and they act as a virtual
desktop resulting in a large workspace. When enabled, you can drag any icons or
Extend
windows across to the other display desktop. It is therefore possible to have one
program visible in one display, and a different program visible in the other display
You will need to enable Thunderbolt support in the BIOS
ogy (Advanced Menu > Intel(R) Thunderbolt)" on page 5 - 10
level of security for the Thunderbolt port in the BIOS. If you want to use the Thunderbolt port to sup-
port display devices then you will need to set the security level to support display devices only
curity Level (Advanced Menu > Intel(R) Thunderbolt)" on page 5 - 11
to use the Thunderbolt port for display then you must set this as the security level, and
Figure 1 - 12 on page 1 - 20
6
DisplayPort2 in
(
Description
"Intel(R) Thunderbolt Technol-
. You can also set the
will then be turned off.
)
"Se-
. If you want
