Chapter 3: BIOS Utilities

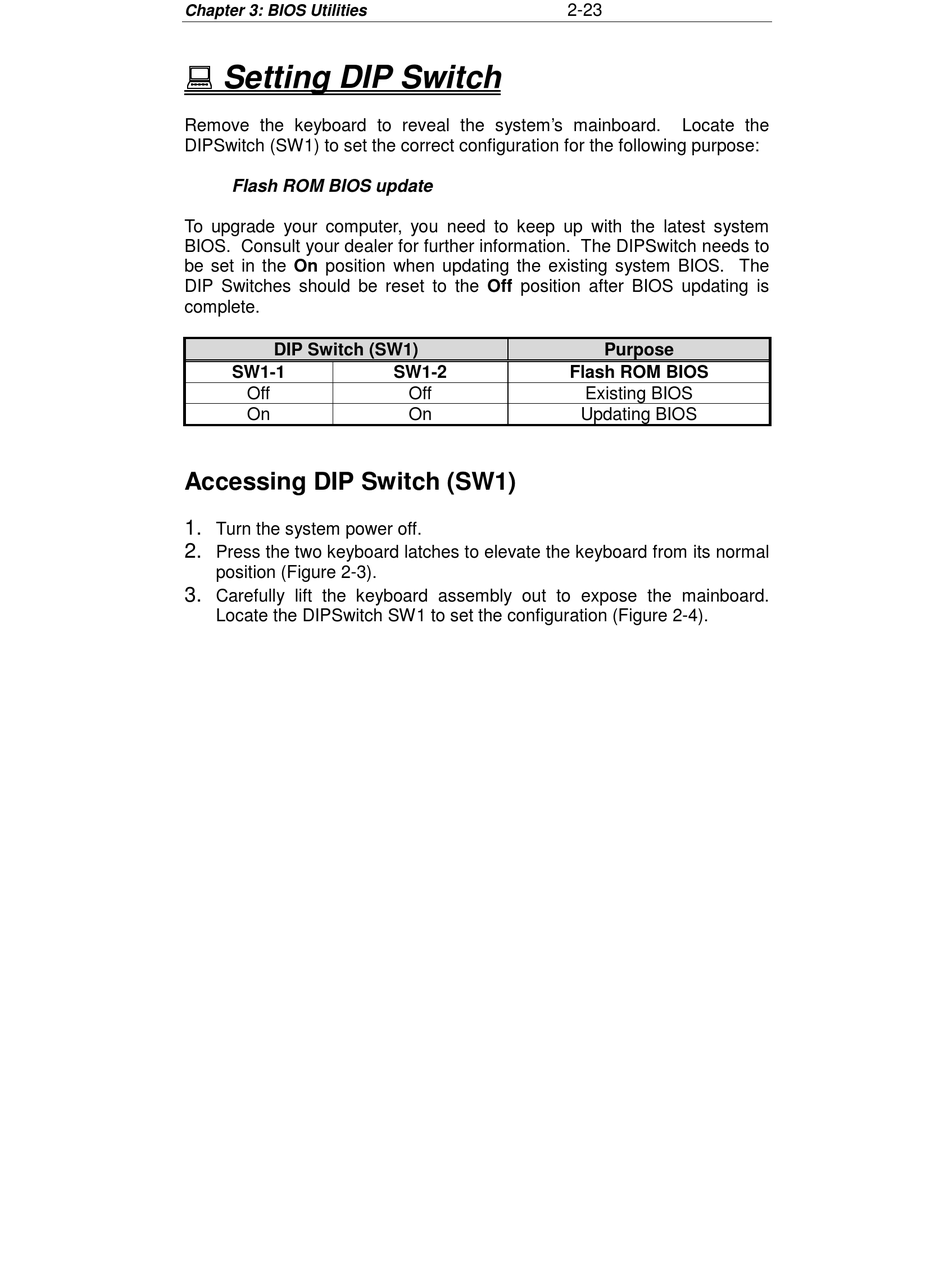

! ! ! ! Setting DIP Switch

Remove the keyboard to reveal the system's mainboard.
DIPSwitch (SW1) to set the correct configuration for the following purpose:
Flash ROM BIOS update
To upgrade your computer, you need to keep up with the latest system
BIOS. Consult your dealer for further information. The DIPSwitch needs to
be set in the On position when updating the existing system BIOS. The
DIP Switches should be reset to the Off position after BIOS updating is
complete.
DIP Switch (SW1)
SW1-1
Off
On

Accessing DIP Switch (SW1)

1.
Turn the system power off.
2.
Press the two keyboard latches to elevate the keyboard from its normal
position (Figure 2-3).
3.
Carefully lift the keyboard assembly out to expose the mainboard.
Locate the DIPSwitch SW1 to set the configuration (Figure 2-4).
2-23
SW1-2 Flash ROM BIOS
Off
On
Locate the
Purpose
Existing BIOS
Updating BIOS
