Chapter 3: BIOS Utilities

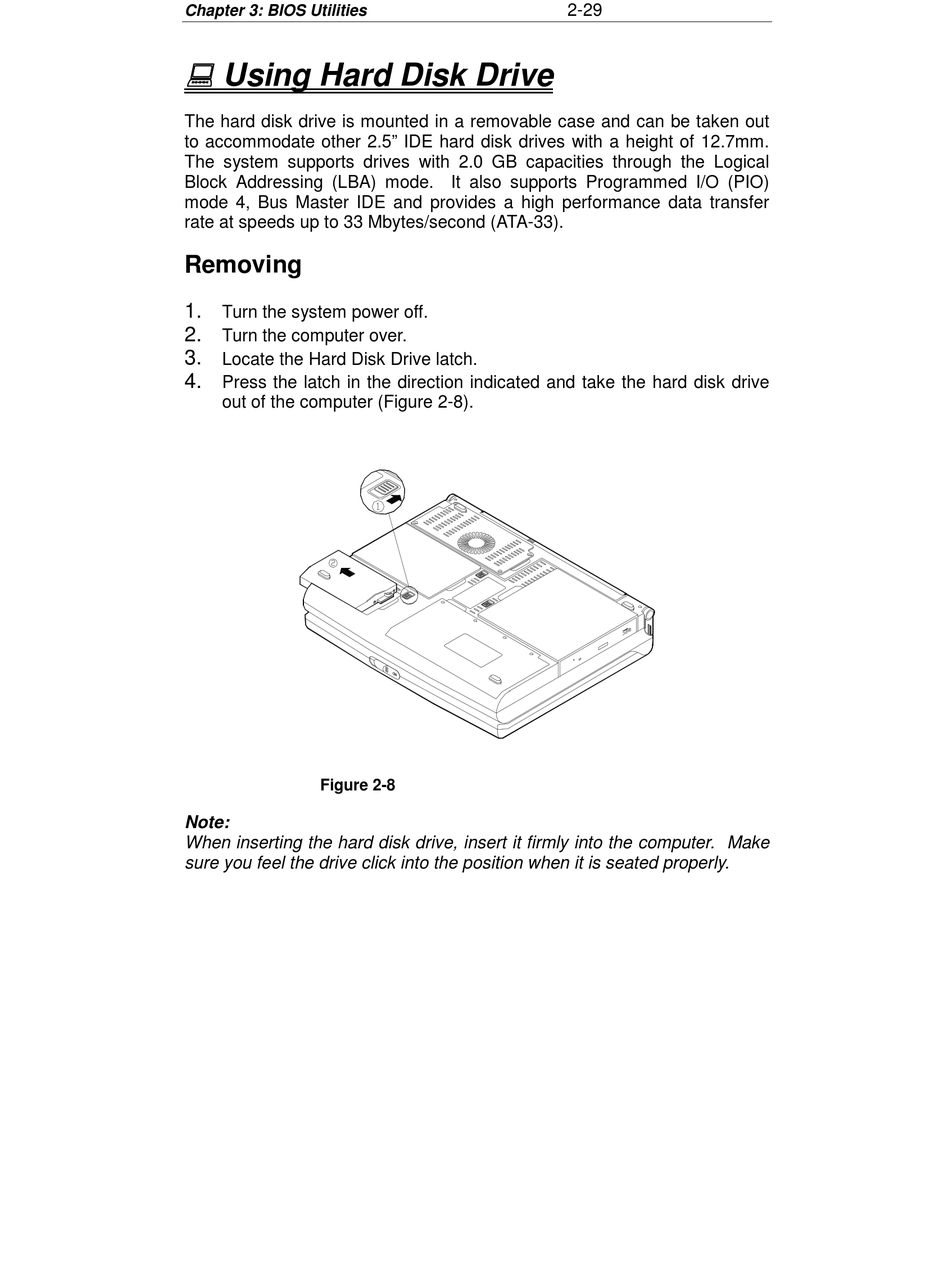

! ! ! ! Using Hard Disk Drive

The hard disk drive is mounted in a removable case and can be taken out
to accommodate other 2.5" IDE hard disk drives with a height of 12.7mm.
The system supports drives with 2.0 GB capacities through the Logical
Block Addressing (LBA) mode. It also supports Programmed I/O (PIO)
mode 4, Bus Master IDE and provides a high performance data transfer
rate at speeds up to 33 Mbytes/second (ATA-33).

Removing

1.
Turn the system power off.
2.
Turn the computer over.
3.
Locate the Hard Disk Drive latch.
4.
Press the latch in the direction indicated and take the hard disk drive
out of the computer (Figure 2-8).
Figure 2-8
Note:
When inserting the hard disk drive, insert it firmly into the computer. Make
sure you feel the drive click into the position when it is seated properly.
2-29
