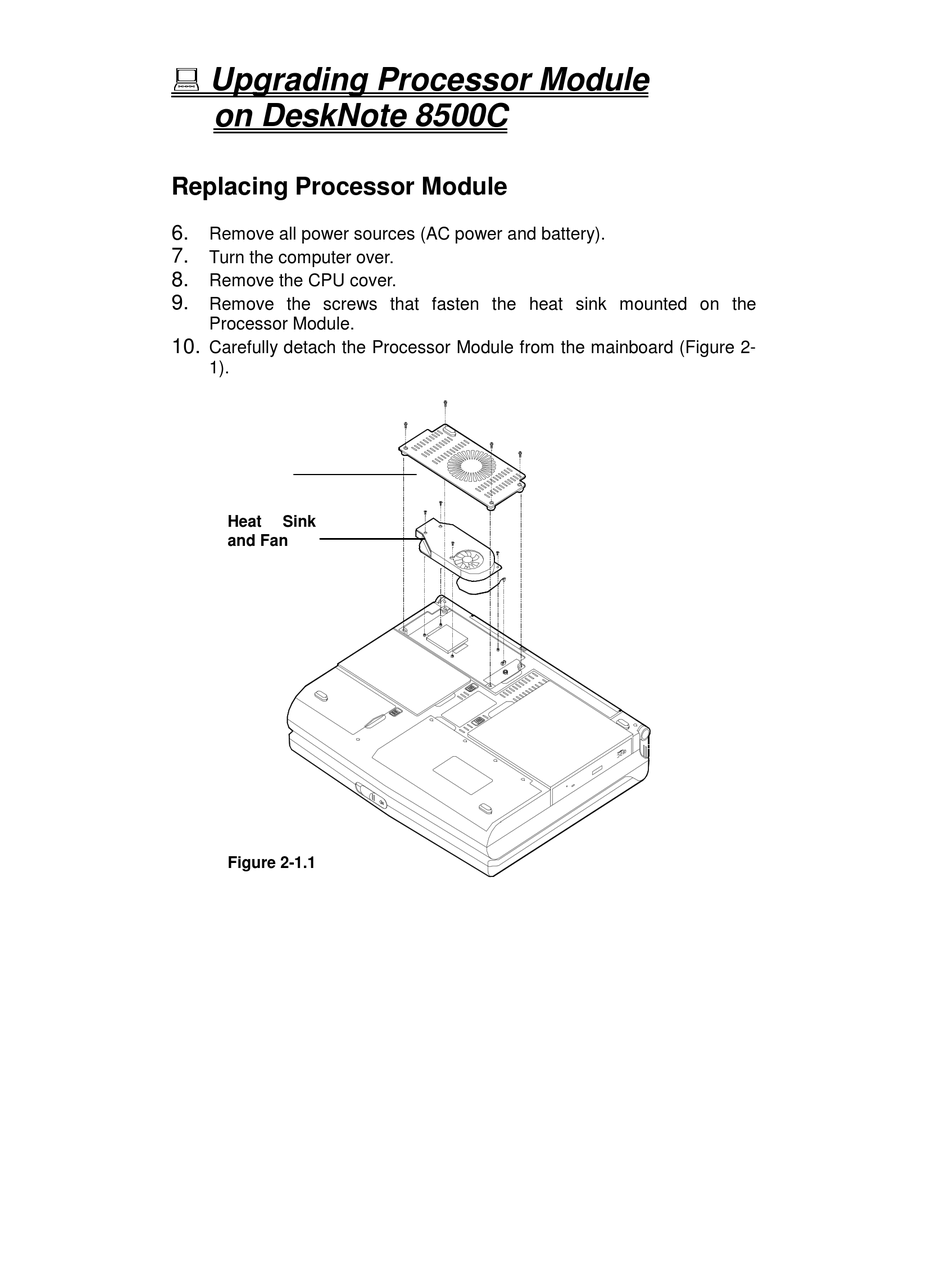

! ! ! ! Upgrading Processor Module

on DeskNote 8500C

Replacing Processor Module

6.
Remove all power sources (AC power and battery).
7.
Turn the computer over.
8.
Remove the CPU cover.
9.
Remove the screws that fasten the heat sink mounted on the
Processor Module.
10.
Carefully detach the Processor Module from the mainboard (Figure 2-
1).
Heat Sink
and Fan
Figure 2-1.1
