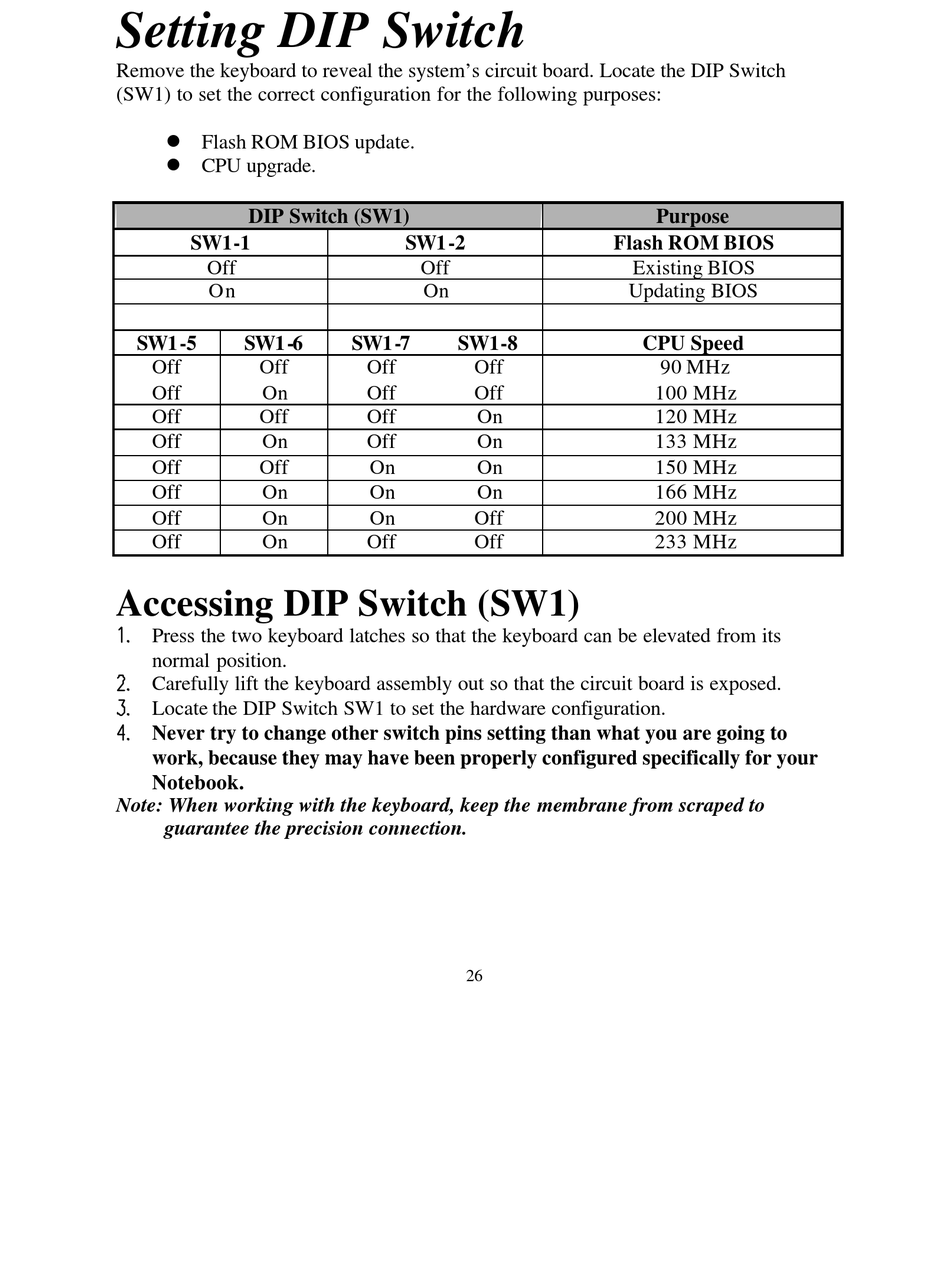

Setting DIP Switch

Remove the keyboard to reveal the system's circuit board. Locate the DIP Switch
(SW1) to set the correct configuration for the following purposes:
l Flash ROM BIOS update.
l CPU upgrade.
DIP Switch (SW1)
SW1-1
Off
On
SW1-5 SW1-6
Off Off
Off On
Off Off
Off On
Off Off
Off On
Off On
Off On
Accessing DIP Switch (SW1)
Press the two keyboard latches so that the keyboard can be elevated from its
normal position.
Carefully lift the keyboard assembly out so that the circuit board is exposed.
Locate the DIP Switch SW1 to set the hardware configuration.
Never try to change other switch pins setting than what you are going to
work, because they may have been properly configured specifically for your
Notebook.
Note: When working with the keyboard, keep the membrane from scraped to
guarantee the precision connection.
SW1-2
Off
On
SW1-7 SW1-8
Off Off
Off Off
Off On
Off On
On On
On On
On Off
Off Off
26
Purpose
Flash ROM BIOS
Existing BIOS
Updating BIOS
CPU Speed
90 MHz
100 MHz
120 MHz
133 MHz
150 MHz
166 MHz
200 MHz
233 MHz
