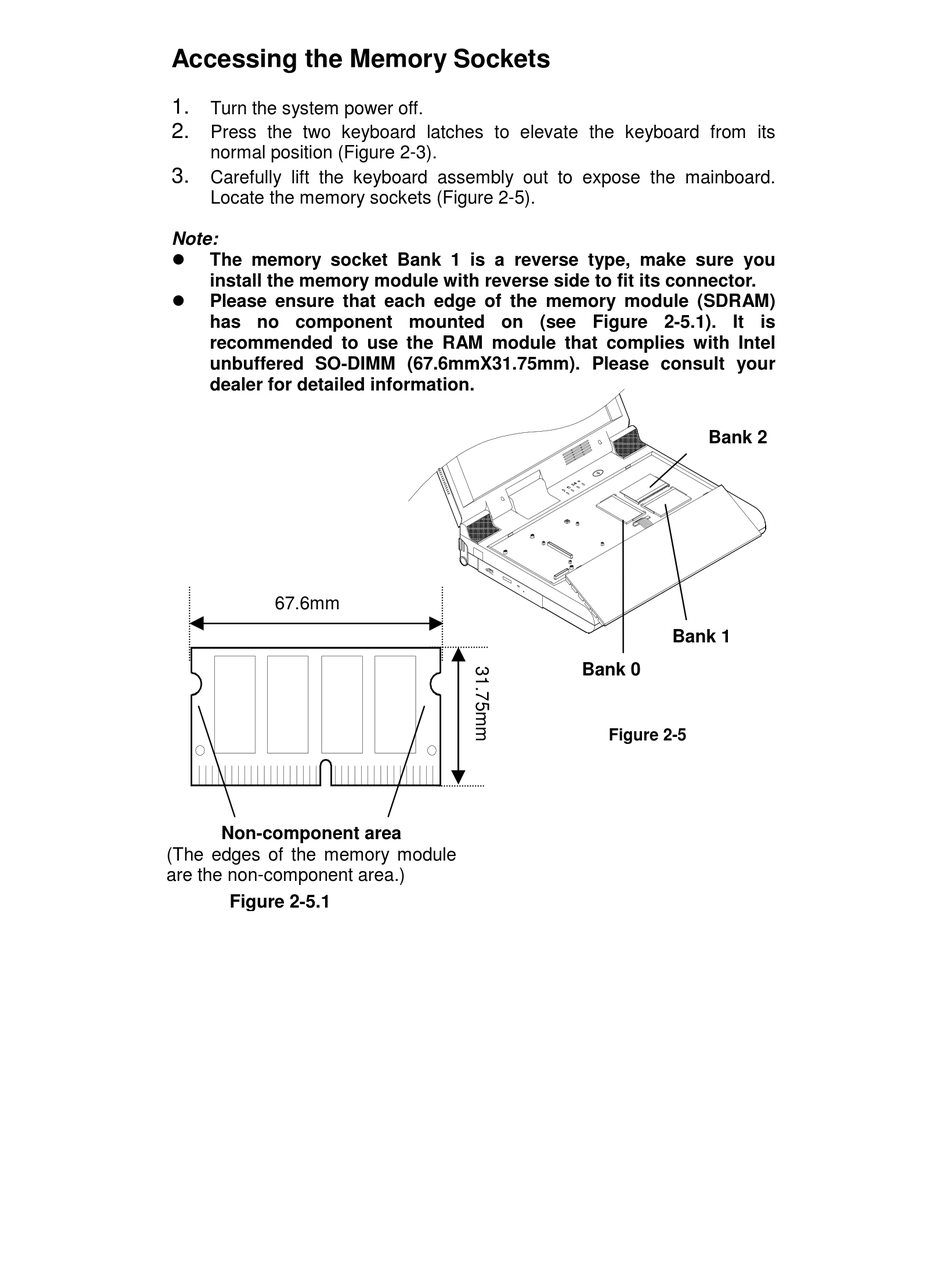

Accessing the Memory Sockets

1.
Turn the system power off.
2.
Press the two keyboard latches to elevate the keyboard from its
normal position (Figure 2-3).
3.
Carefully lift the keyboard assembly out to expose the mainboard.
Locate the memory sockets (Figure 2-5).
Note:
#
The memory socket Bank 1 is a reverse type, make sure you
install the memory module with reverse side to fit its connector.
#
Please ensure that each edge of the memory module (SDRAM)
has no component mounted on (see Figure 2-5.1). It is
recommended to use the RAM module that complies with Intel
unbuffered SO-DIMM (67.6mmX31.75mm). Please consult your
dealer for detailed information.
67.6mm
Non-component area
(The edges of the memory module
are the non-component area.)
Figure 2-5.1
Bank 2
Bank 1
Bank 0
Figure 2-5
