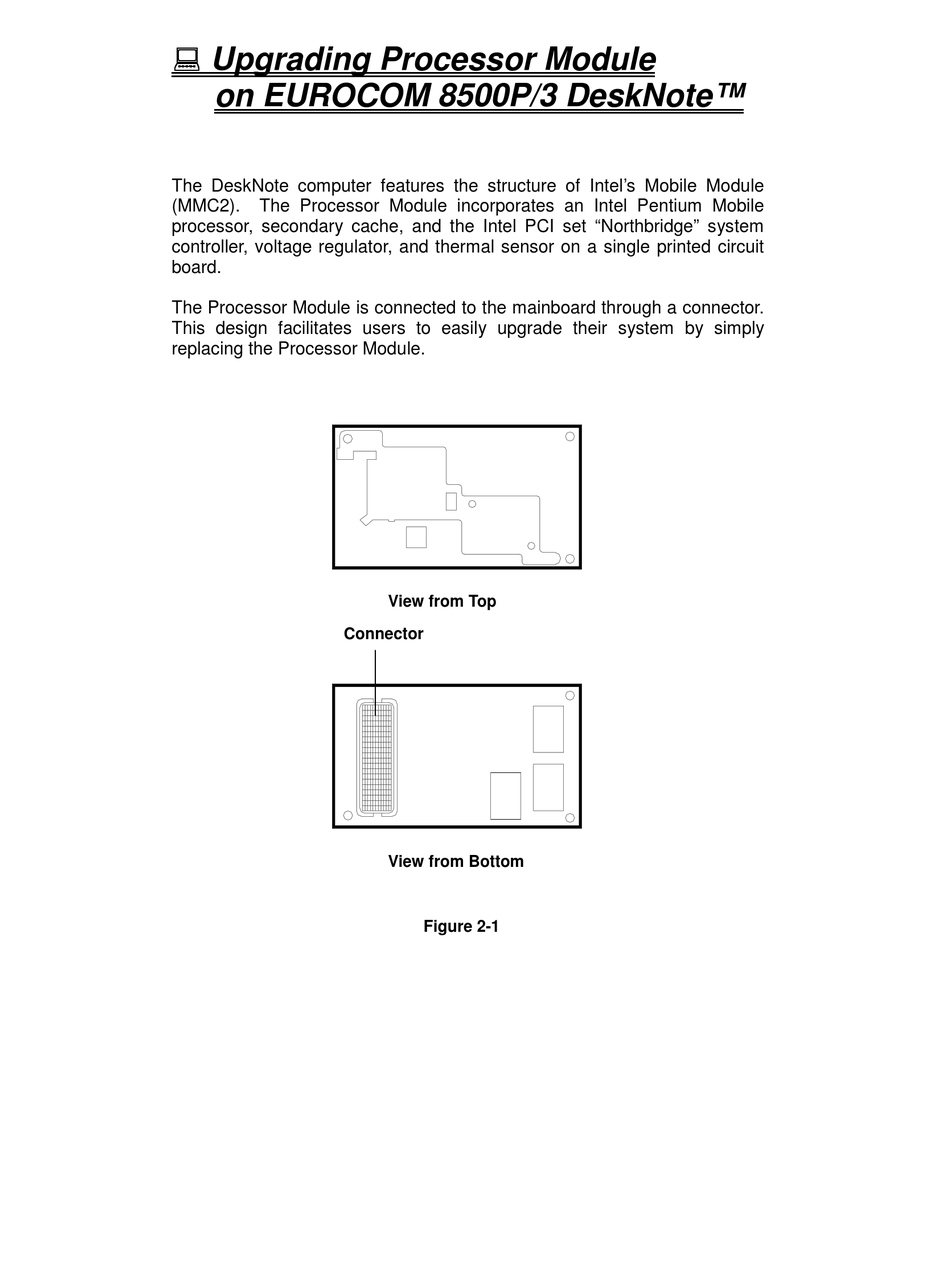

! ! ! ! Upgrading Processor Module

on EUROCOM 8500P/3 DeskNote™

The DeskNote computer features the structure of Intel's Mobile Module
(MMC2). The Processor Module incorporates an Intel Pentium Mobile
processor, secondary cache, and the Intel PCI set "Northbridge" system
controller, voltage regulator, and thermal sensor on a single printed circuit
board.
The Processor Module is connected to the mainboard through a connector.
This design facilitates users to easily upgrade their system by simply
replacing the Processor Module.
View from Top
Connector
View from Bottom
Figure 2-1
