2-6

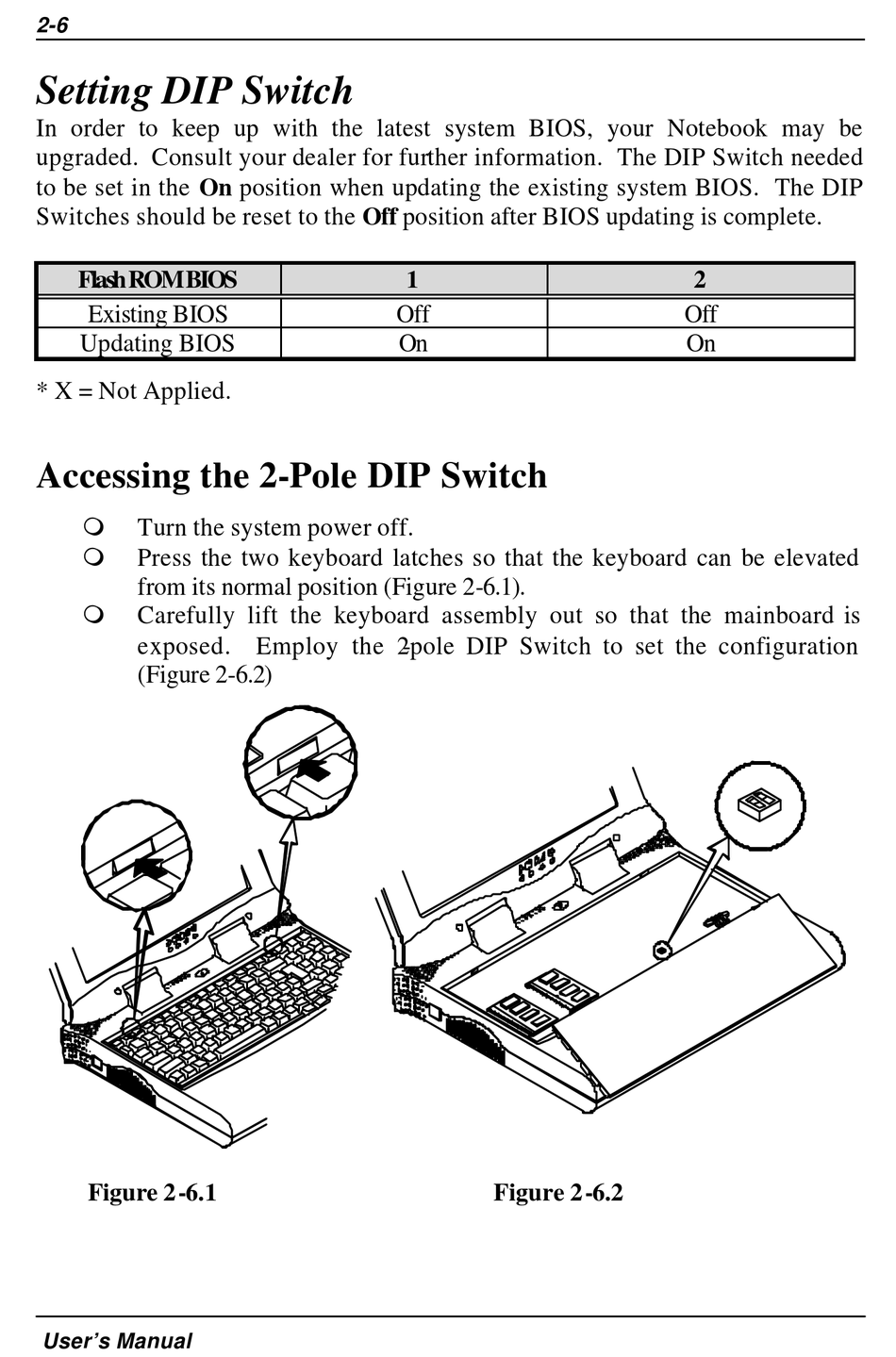

Setting DIP Switch

In order to keep up with the latest system BIOS, your Notebook may be
upgraded. Consult your dealer for further information. The DIP Switch needed
to be set in the On position when updating the existing system BIOS. The DIP
Switches should be reset to the Off position after BIOS updating is complete.
Flash ROM BIOS
Existing BIOS
Updating BIOS
* X = Not Applied.

Accessing the 2-Pole DIP Switch

m
Turn the system power off.
m
Press the two keyboard latches so that the keyboard can be elevated
from its normal position (Figure 2-6.1).
m
Carefully lift the keyboard assembly out so that the mainboard is
exposed. Employ the 2 -pole DIP Switch to set the configuration
(Figure 2-6.2)
Figure 2-6.1
User's Manual
1
Off
On
Figure 2-6.2
2
Off
On
