Chapter 3: BIOS Utilities

Attaching an External Monitor (CRT)

The computer is capable of displaying not only on the LCD, but also on the
XGA compatible displays attached to the computer. Information can be
displayed on both the LCD and the external monitor simultaneously. Enter
the System Configuration Utility (SCU) to select the appropriate parameters
or use the Fn + F6 keys (refer to Chapter 2, Using Hot Keys).
1.
Turn the system power off.
2.
Connect the cable to the CRT port on the rear of the computer.
3.

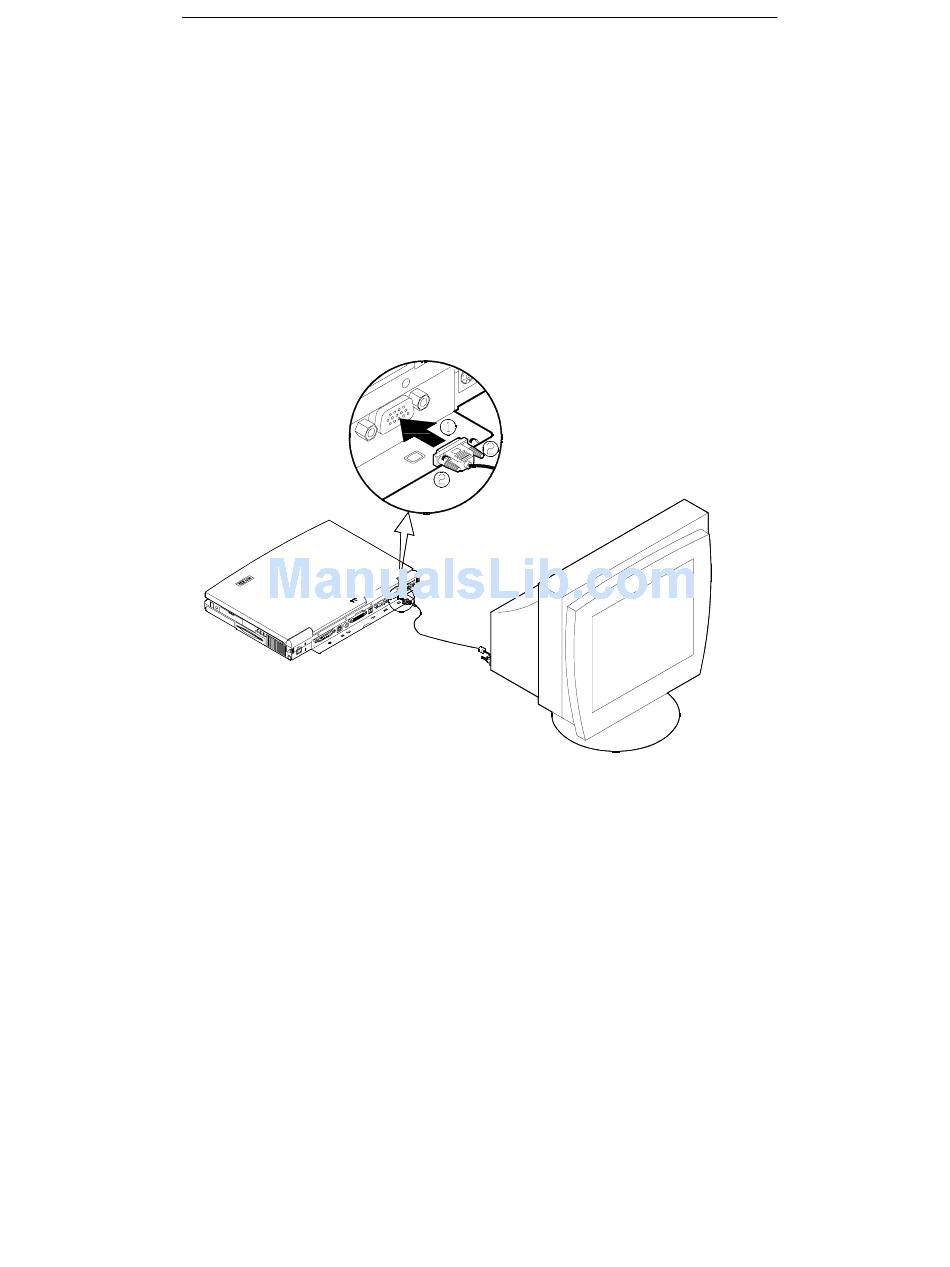

Tighten the screws that fasten the cable to the CRT port (Figure 2-26).
4.
Insert the other end of the cable to the external monitor.
5.
Turn on the computer.
2-51
Figure 2-26
