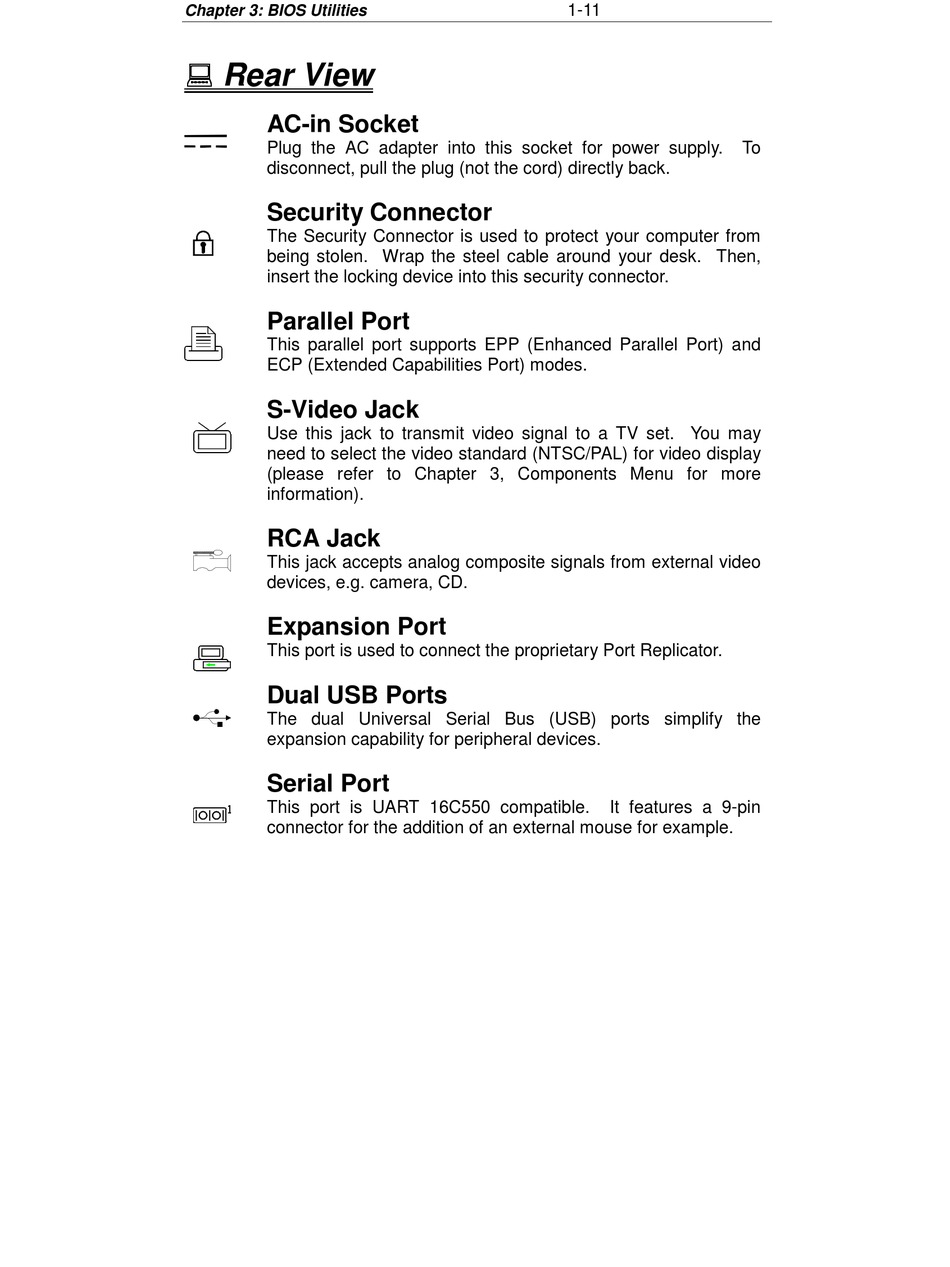

! ! ! ! Rear View

AC-in Socket
Plug the AC adapter into this socket for power supply.
disconnect, pull the plug (not the cord) directly back.

Security Connector

The Security Connector is used to protect your computer from
being stolen. Wrap the steel cable around your desk. Then,
insert the locking device into this security connector.

Parallel Port

This parallel port supports EPP (Enhanced Parallel Port) and
ECP (Extended Capabilities Port) modes.
S-Video Jack
Use this jack to transmit video signal to a TV set. You may
need to select the video standard (NTSC/PAL) for video display
(please refer to Chapter 3, Components Menu for more
information).

RCA Jack

This jack accepts analog composite signals from external video
devices, e.g. camera, CD.

Expansion Port

This port is used to connect the proprietary Port Replicator.

Dual USB Ports

The dual Universal Serial Bus (USB) ports simplify the
expansion capability for peripheral devices.

Serial Port

This port is UART 16C550 compatible.
connector for the addition of an external mouse for example.
1-11
To
It features a 9-pin
